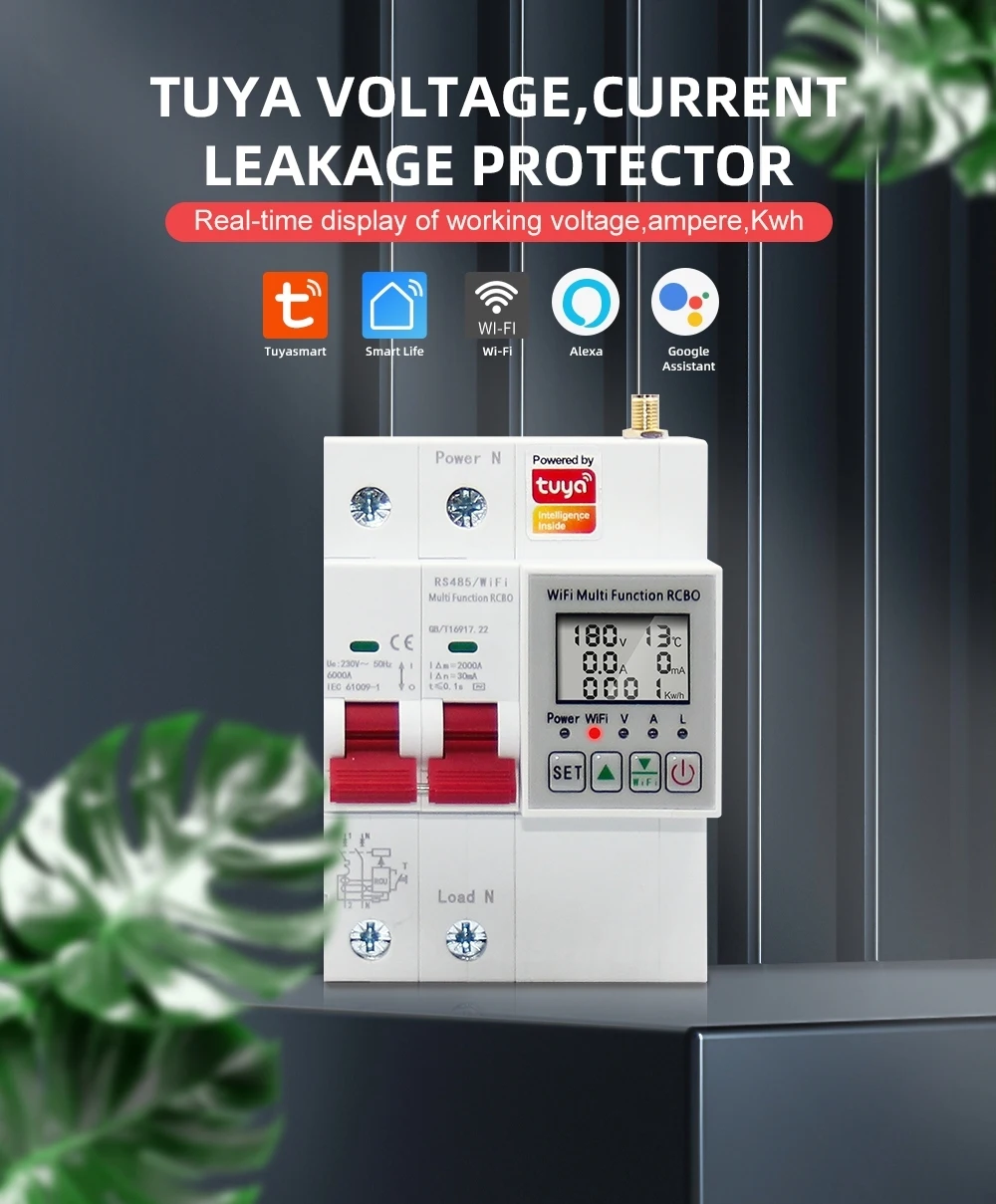

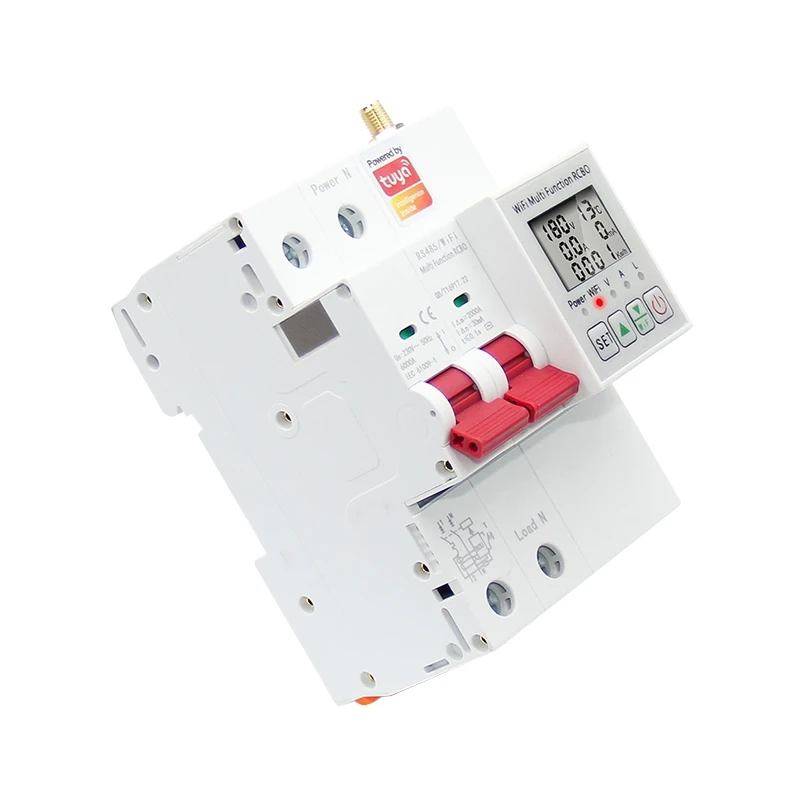

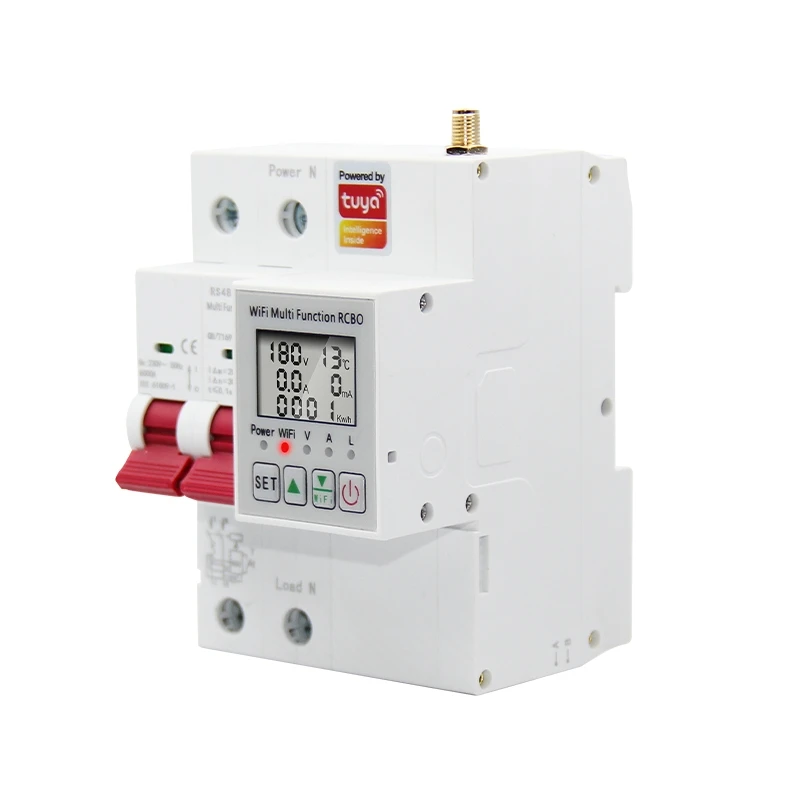

Smart Electric Energy Meter Wifi Meter with Leakage Protection Smart Home Energy Meter
القسم: غير مصنف
حالة التوفر: المتوفر في المخزون 5 فقط
5 متبقي
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Accuracy Class: ±1.5%
- Phase: 2P
- Model Number: SPMS05
- Place of Origin: Guangdong, China
- Application: Household, Industrial
- Display Type: Led
- Feature: Led Display
- Operating Temperature: -45℃~+70℃
- Output Voltage: 85-300V
- Product name: Wifi Energy Meter
- Working current: 1A~63A adjustable
- Rated Frequency: 50/60Hz
- Warranty: 12 Months
- Switch mode: Switch/Mobile phone
- Storage and Transportation Temperature: -45℃~+70°C
- Leakage protection value: 1-99mA adjustable
- Certificate: CE Rohs
- Mounting: 35mm din-rail
- Brand Name: smvp
- Origin: Mainland China
- Movable: Yes
If you need other models of this kind of product, feel free to contact me via the following methods! WA: +8615861806068 WeChat: 15861806068 Email: 2950105894@qq.com. Dear friends, please choose the correct model to place your order and make the payment; we will ship it out to you as soon as possible! If you can’t find the model you need on the website, please click on the “Contact Us” button on the upper right corner of the page; I will reply to you as soon as possible! Please note that the quantity marked on the website is the quantity of each individual item; some products may include shipping to your country/region; For large or heavy items, the shipping cost may not be accurate; please contact us for more details. Thank you for your support and understanding!
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#a8aaac;font-family:Roboto;font-size:24px;color:#000;background-color:#b1b0b0;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:757px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:-20px;margin-left:-2px;width:750px;height:906.75px}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:28px;padding:5px 10px;width:195px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:510px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-7{overflow:hidden;width:750px;height:682px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:-12px;margin-left:0;width:750px;height:782.25px}#detail_decorate_root .magic-9{overflow:hidden;width:750px;height:600px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:-132px;margin-left:-6px;width:750px;height:849px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:847.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:847.5px}#detail_decorate_root .magic-13{overflow:hidden;width:373px;height:535.628px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:373.00000000000006px;height:535.628px}#detail_decorate_root .magic-15{overflow:hidden;width:373px;height:535px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:411.855273287144px;height:535px}#detail_decorate_root .magic-17{overflow:hidden;width:373px;height:495.344px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:373px;height:495.344px}#detail_decorate_root .magic-19{overflow:hidden;width:373px;height:495px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-20{margin-top:-23px;margin-left:-2px;width:373px;height:512.129px}#detail_decorate_root .magic-21{overflow:hidden;width:373px;height:531.152px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:373.00000000000006px;height:531.152px}#detail_decorate_root .magic-23{overflow:hidden;width:373px;height:531px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:-23px;width:438.4805945499587px;height:531px}#detail_decorate_root .magic-25{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-26{margin-bottom:0}#detail_decorate_root .magic-27{position:relative;width:100%}#detail_decorate_root .magic-28{vertical-align:top}#detail_decorate_root .magic-29{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-30{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-31{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-32{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:558.2608695652174px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:558.2608695652174px}#detail_decorate_root .magic-35{overflow:hidden;width:373px;height:278.45934256055364px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:373px;height:278.45934256055364px}#detail_decorate_root .magic-37{overflow:hidden;width:373px;height:278px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:373px;height:490.1963746223565px}#detail_decorate_root .magic-39{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-40{font-size:20px}#detail_decorate_root .magic-41{font-size:18px}
Product Specification
Product name | WiFi intelligent reclosing |
Connection platform | Tuya smart App |
Rated voltage | AC 230 V |
Rated current | 1-63 A adjustable |
Overvoltage protection | AC 230-300 V |
Undervoltage protection | AC 80-210 V |
Leakage protection value | 1-99 mA |
Poles | single phase 2P |
Frequency | 50/60Hz |

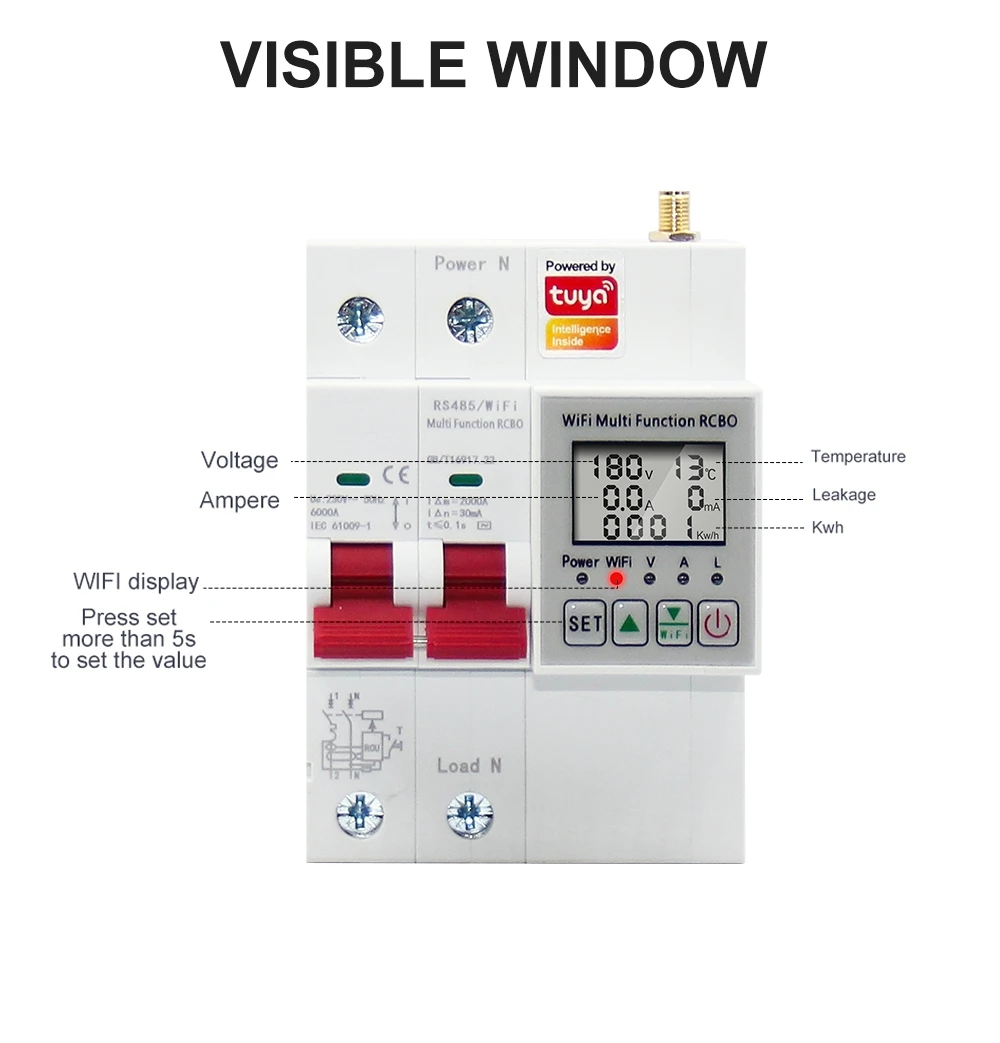

Display | LCD with backlight |
Mounting | 35mm din-rail |
Product Description

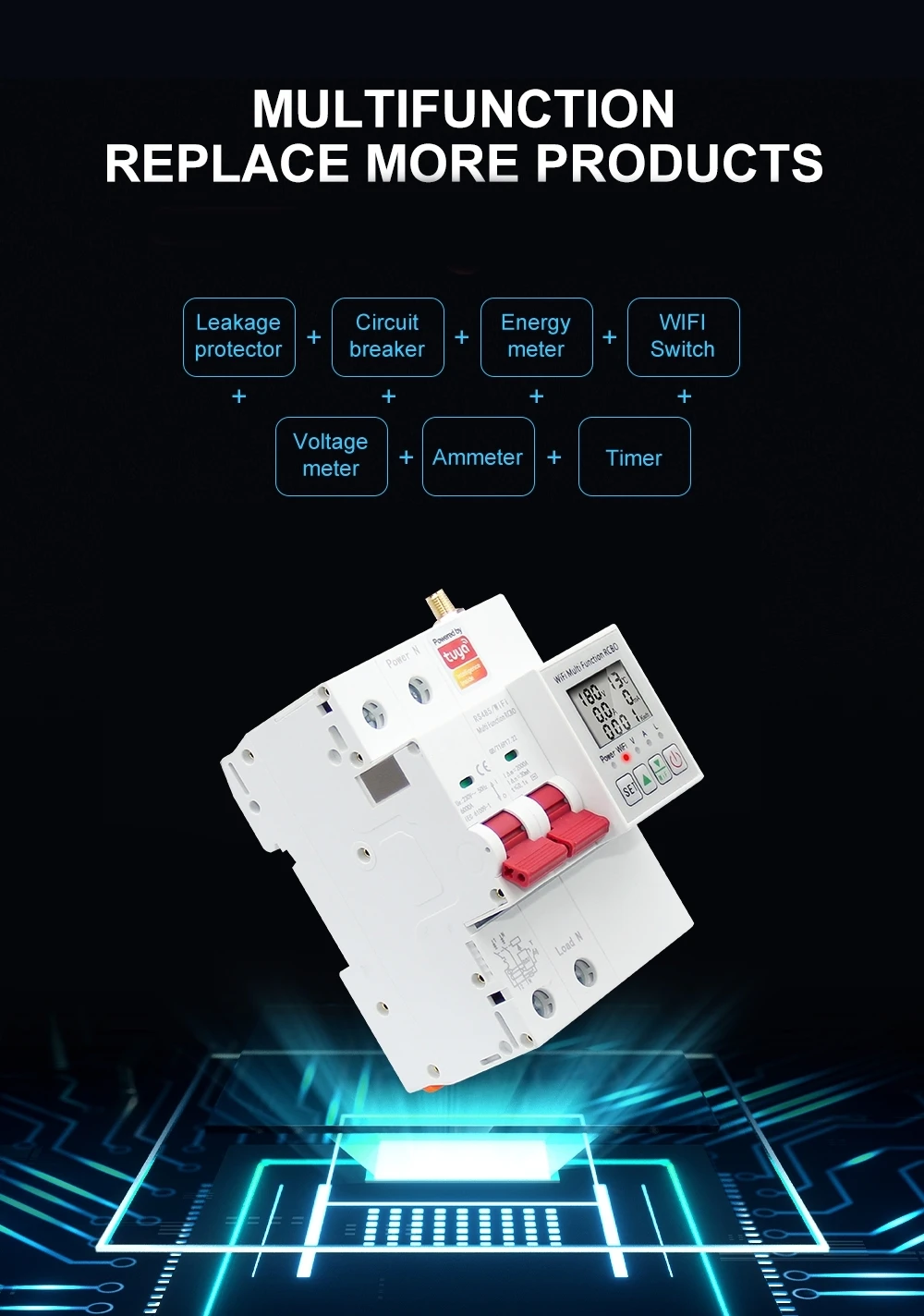

This all-in-one design smart IOT device applied to AC110V or 220V/230V, 50/60Hz, rated current up to 63A single phase circuits in resident, commercial, and industrial buildings with 2.4G WiFi, is a bi-directional measuring two-way meter to measure both positive active energy consumption on grid and negative active energy from solar, and offers prepayment as an option; to remote control and set protections against over/under voltage, overcurrent, residual current (leakage), high It also offers local manual control without WiFi and voice control via the AI speaker, such as Amazon Alexa, Google Assistant, Yandex Alice, and etc.
Functional features
01. Four options for control:

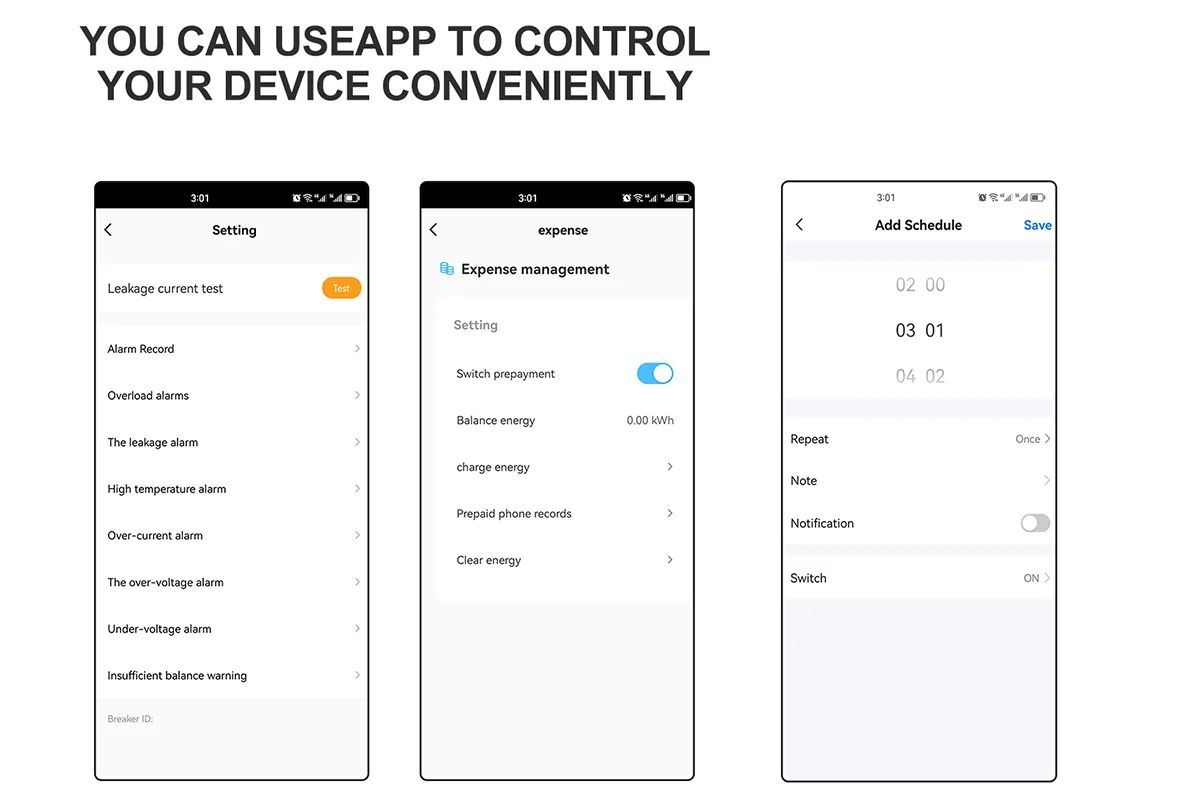

– Remote control from anywhere (smartphone app, Tuya Smart, and Smart Life)
– Voice control (AI speaker, Alexa, Google Assistant, Alice, etc.)

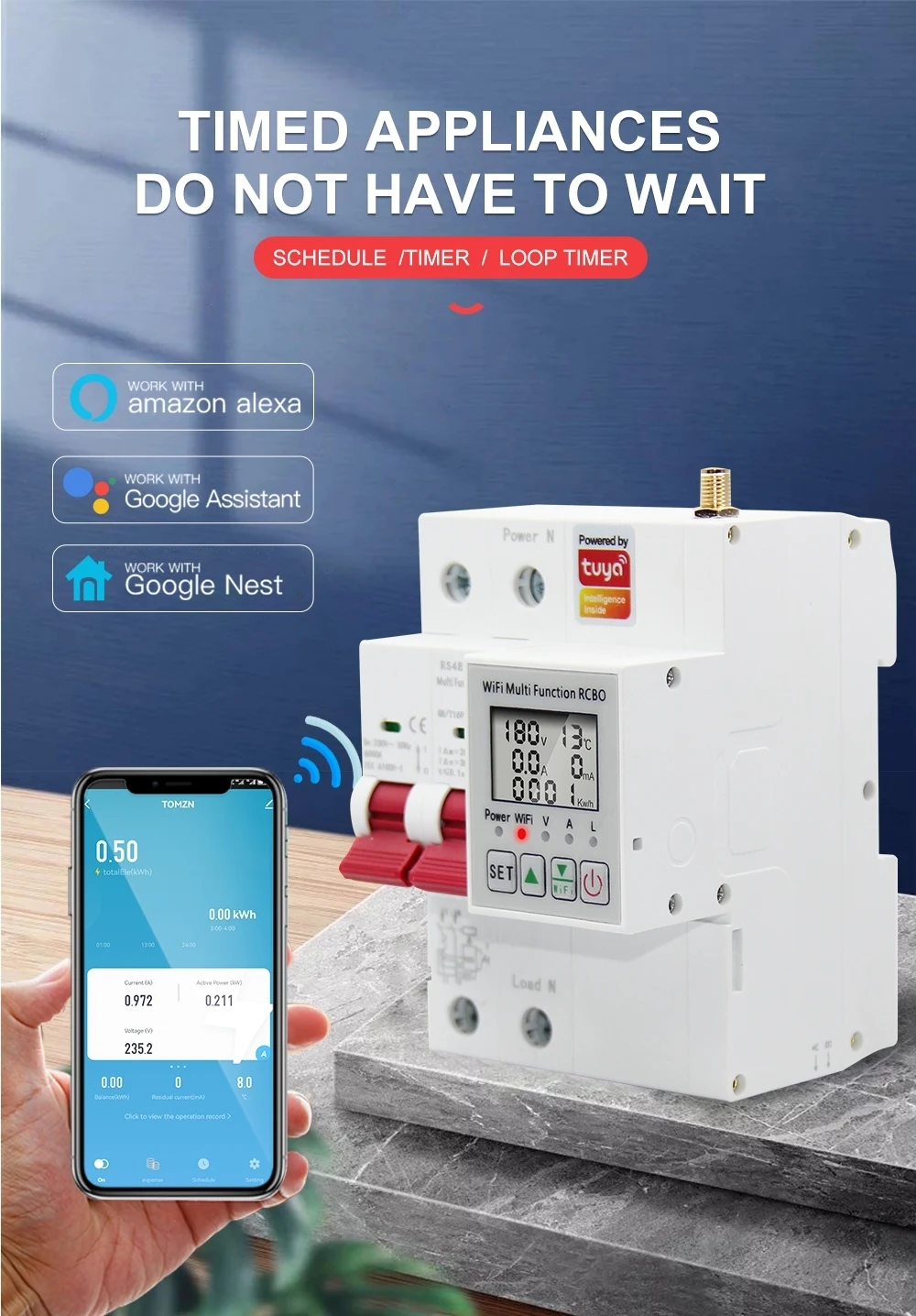

– Timing Control (programmable schedule)
– Manual control (by button)

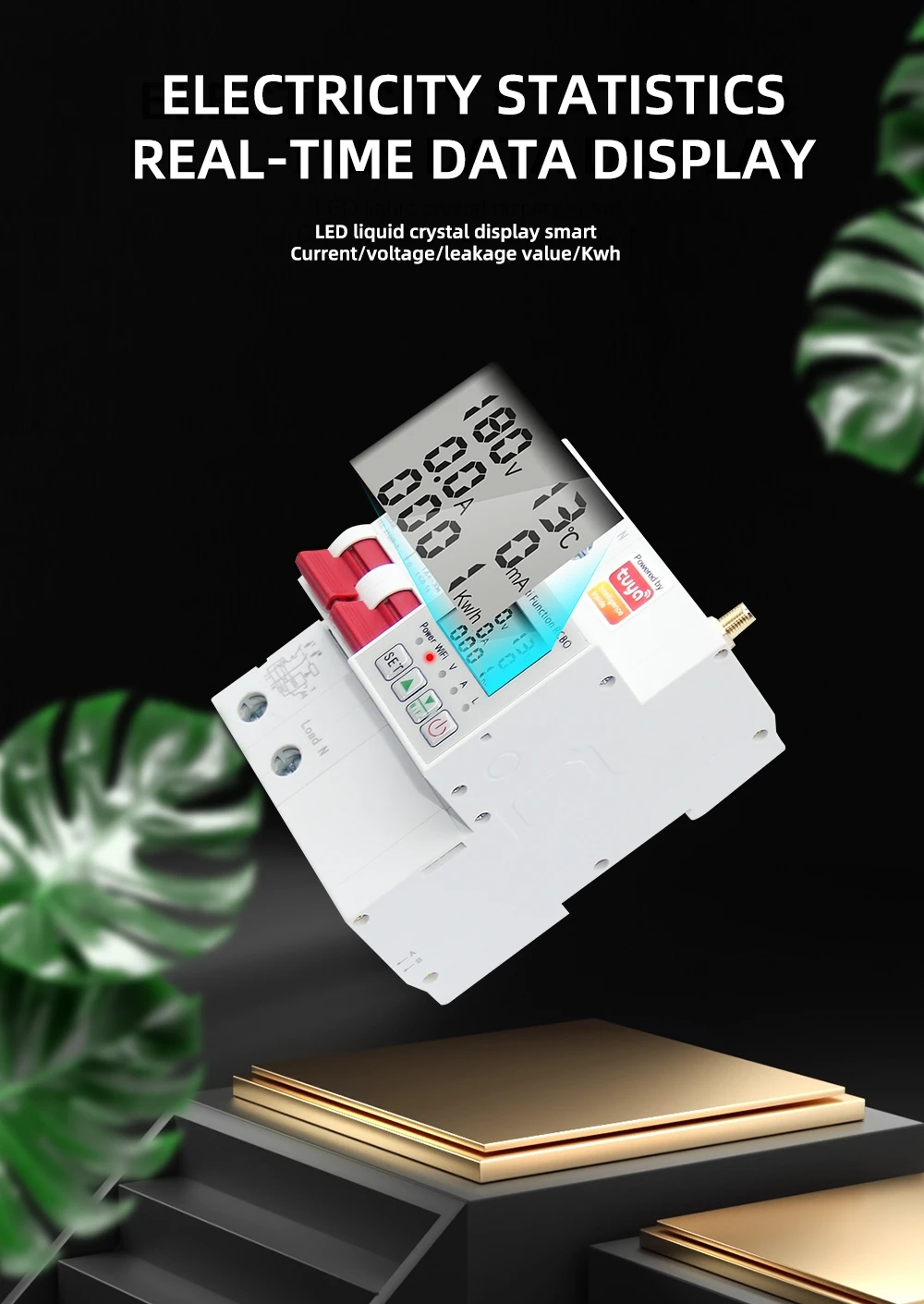

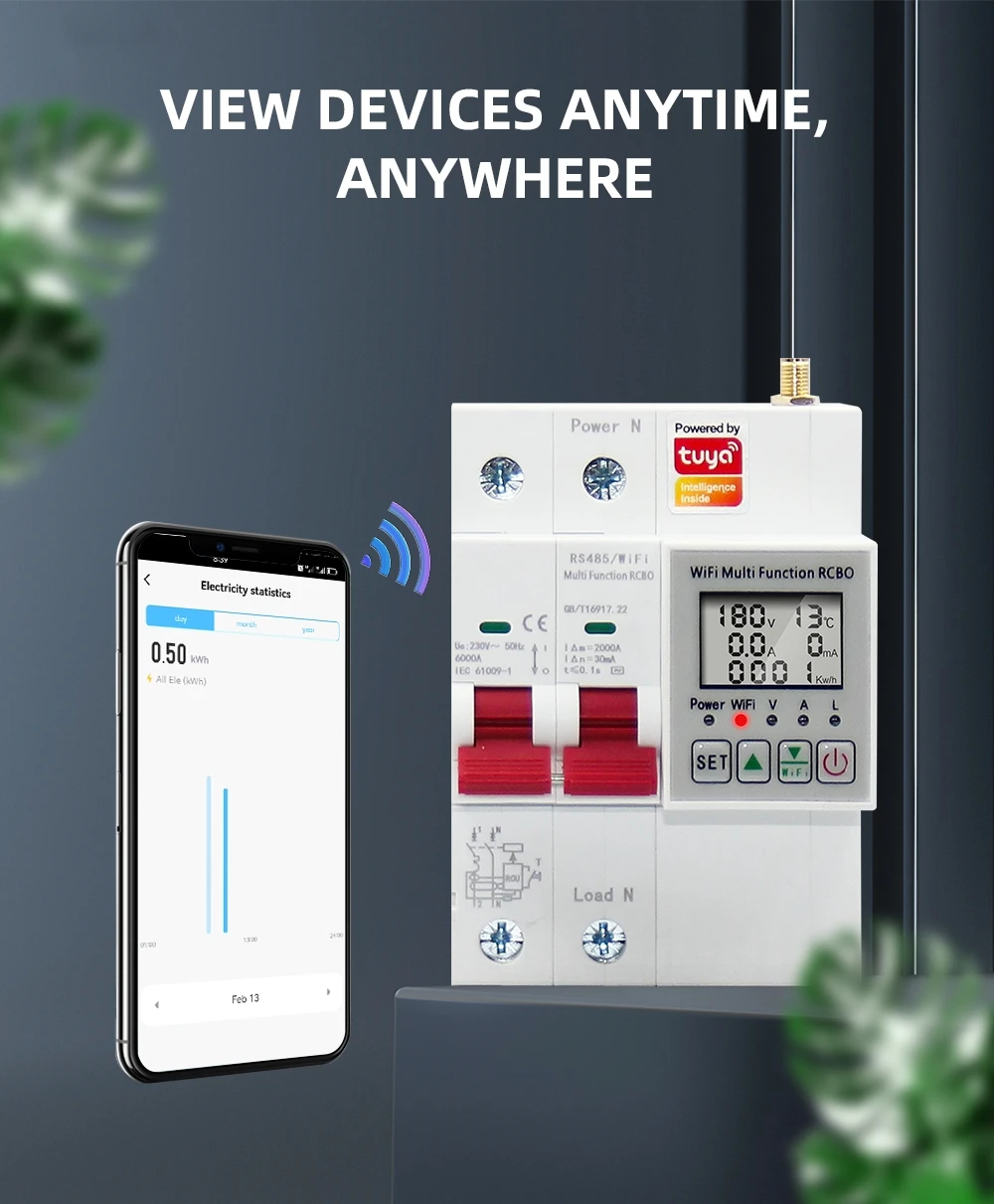

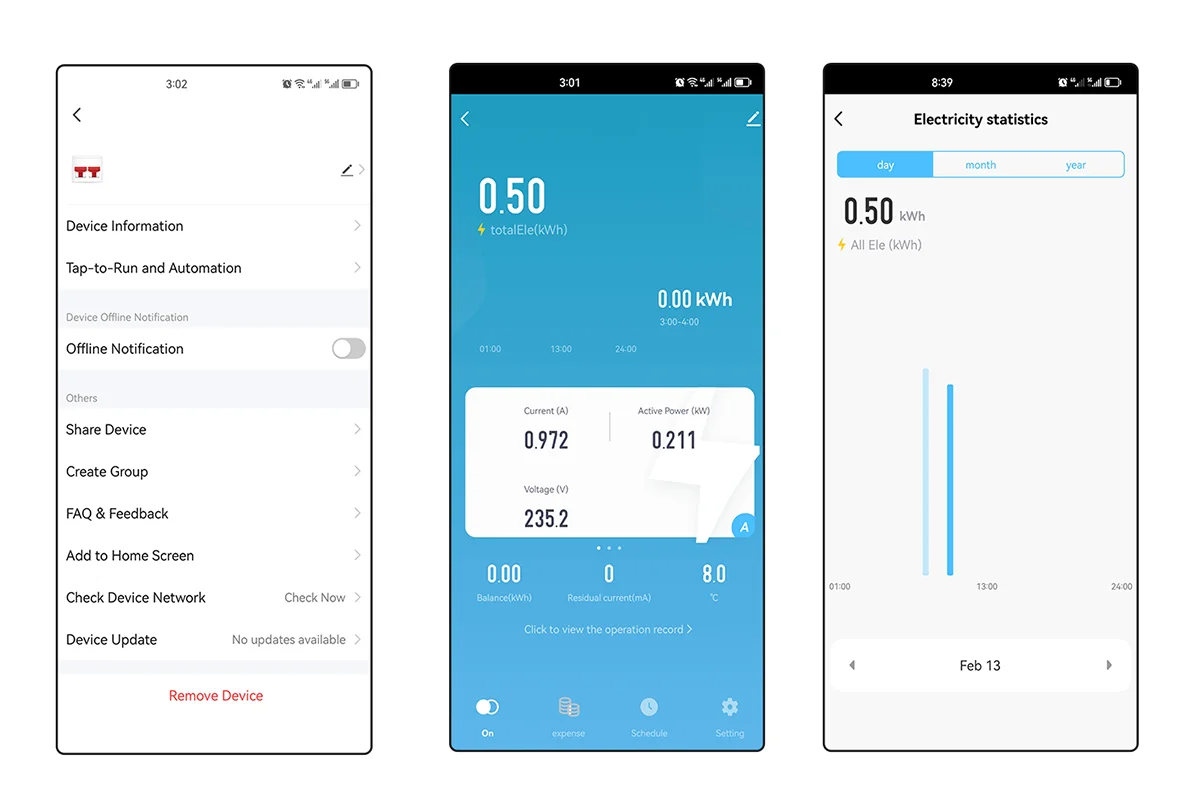

02. View real-time electricity statistics on your phone (A, V, mA, kW, kW/h, 鈩�);
03. Bidirectional measurement of positive and negative active energy use.
04. Switch offers prepaid metering as an option;

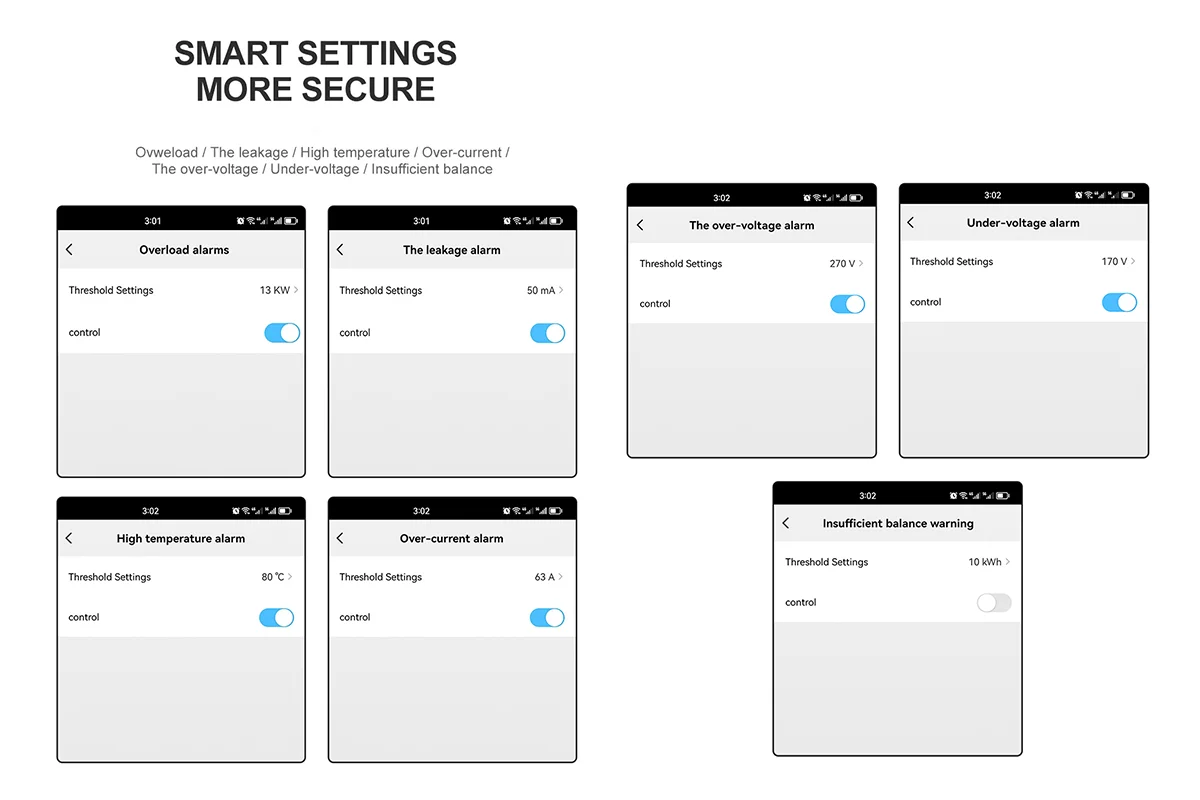

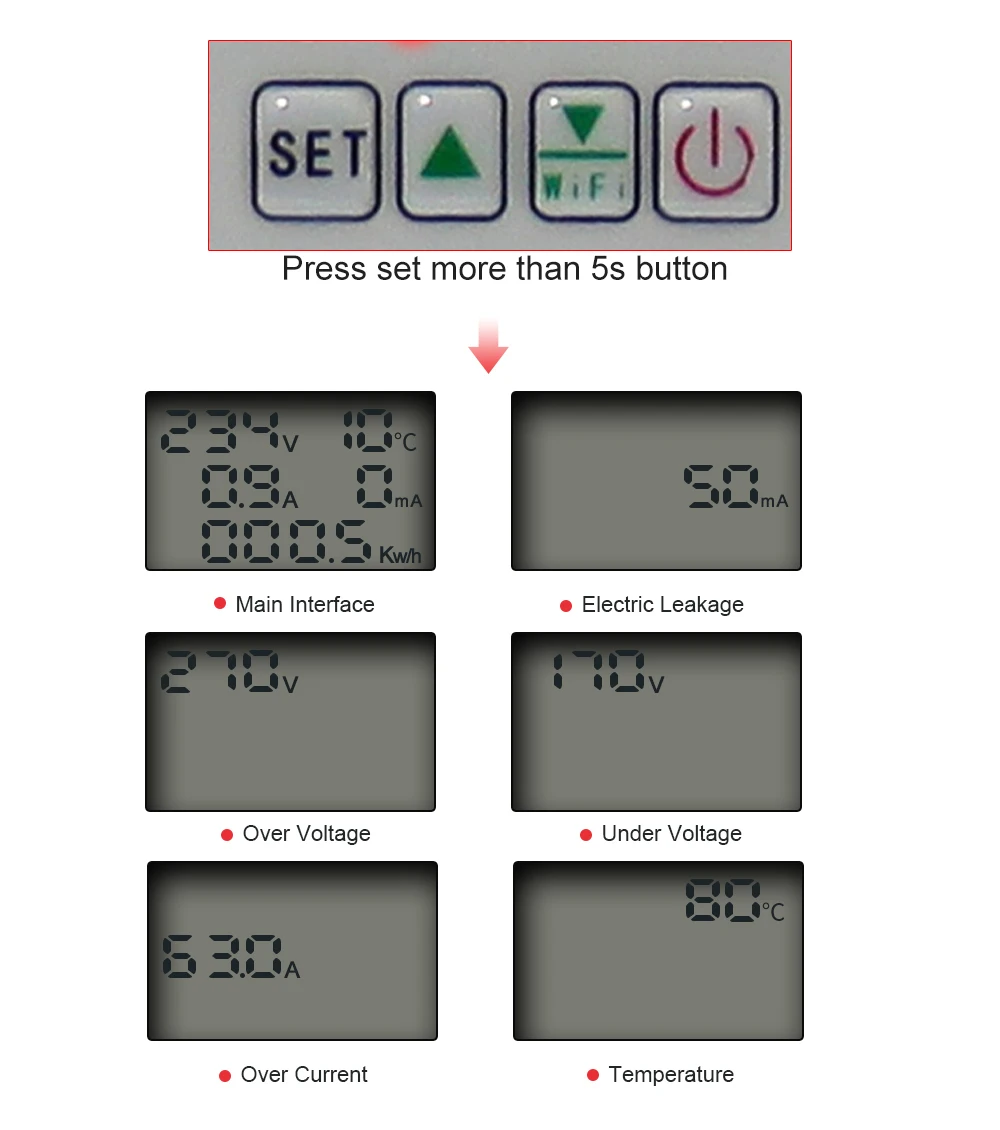

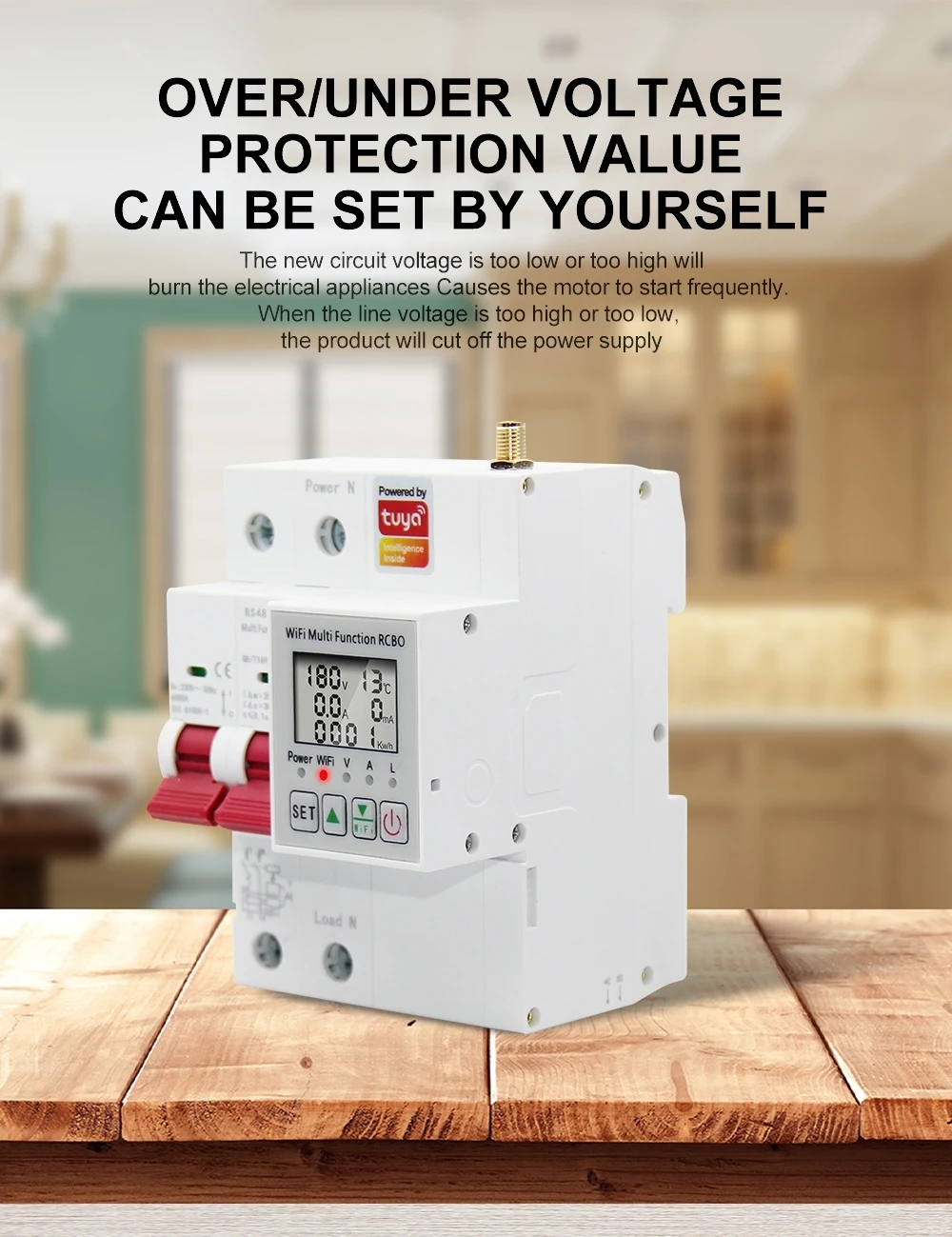

05. Adjustable protection against over/undervoltage, overcurrent, residual current (leakage), and excessive temperatures;

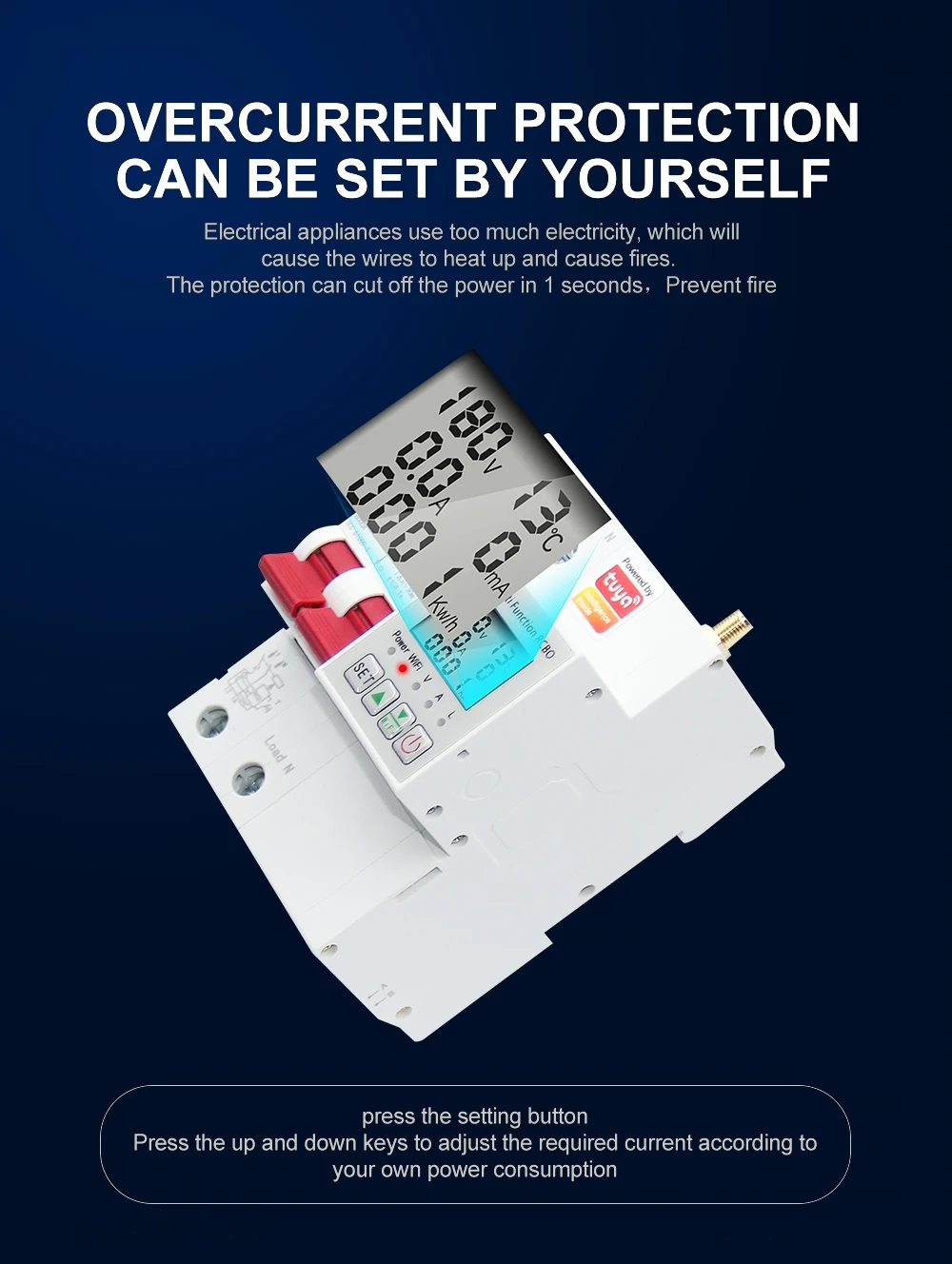

06. Overcurrent protection: 1–63A configurable, with 63A as default (alert disable option).
01. Four options for control:
– Remote control from anywhere (smartphone app, Tuya Smart, and Smart Life)
– Voice control (AI speaker, Alexa, Google Assistant, Alice, etc.)
– Timing Control (programmable schedule)
– Manual control (by button)
02. View real-time electricity statistics on your phone (A, V, mA, kW, kW/h, 鈩�);
03. Bidirectional measurement of positive and negative active energy use.
04. Switch offers prepaid metering as an option;
05. Adjustable protection against over/undervoltage, overcurrent, residual current (leakage), and excessive temperatures;
06. Overcurrent protection: 1–63A configurable, with 63A as default (alert disable option).
Related Products
Packing&Shipping
Packaging:
1* Smart Energy Monitor 1* Spare Parts
1* English Manual
1* Neutral Colorful Gift Box
Delivery Detail: 3-7 days for sample and 15-20 working days for general order
Shipping way: By Express, Air and Sea, depends on customer requirements
Notice: For more detail information, please feel free to contact us!
1* Smart Energy Monitor 1* Spare Parts
1* English Manual
1* Neutral Colorful Gift Box
Delivery Detail: 3-7 days for sample and 15-20 working days for general order
Shipping way: By Express, Air and Sea, depends on customer requirements
Notice: For more detail information, please feel free to contact us!
Company Introduction
Shenzhen Corunsmart Co.,Ltd, established in 2014, We have skilled R&D team that can process OEM&ODM orders. We also are Crown Member of Tuya, can provide products with high quality and shortest delivery time, more competitive price and professional service.

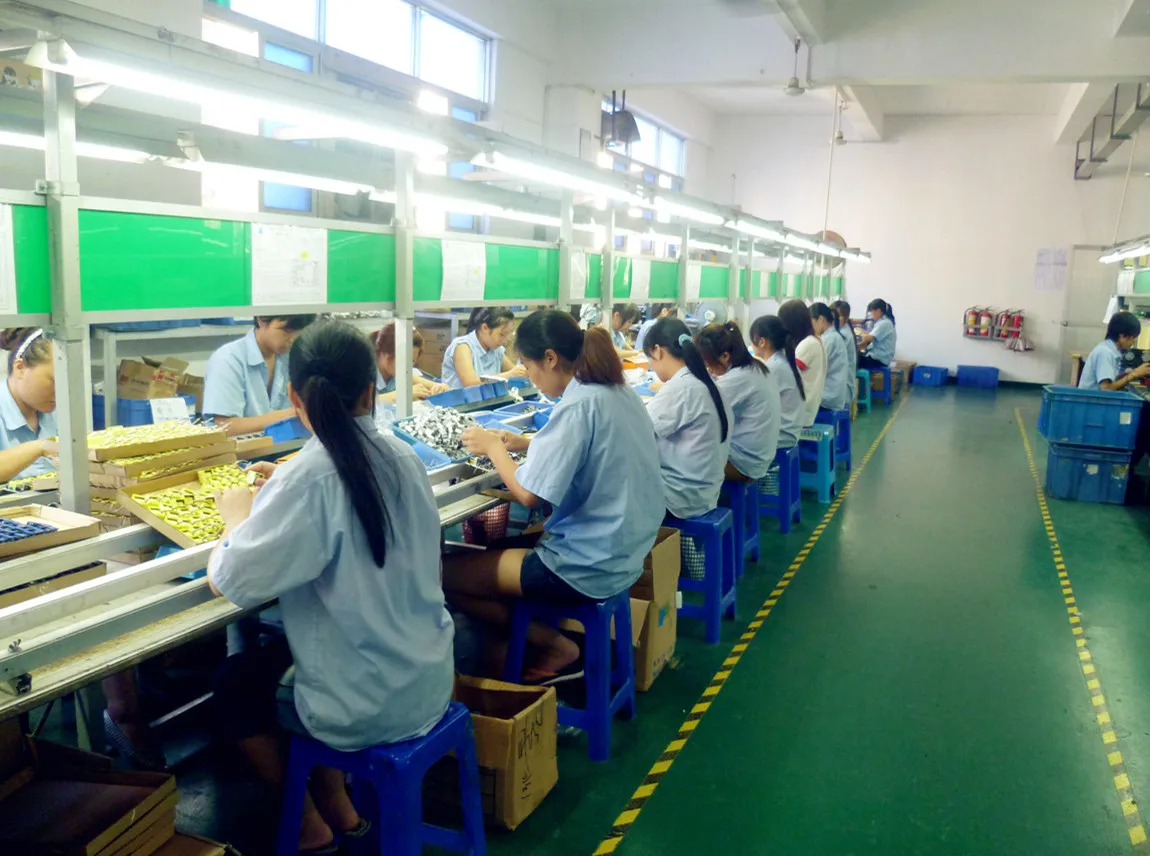

We are in Baoan Shenzhen, with 3000 Square Meter class 100 dust-free purification workshop, and employees up to 400, our monthly output is 100k pieces with current export of 80% of all products. We export to over 80 countries and regions, especially USA, EU, UK, Russia, Mexico, Brazil, Southeast Asia etc.
All of our products will be aged for 2 hours and tested three times before packing. Our QC team test each product based on international testing method .

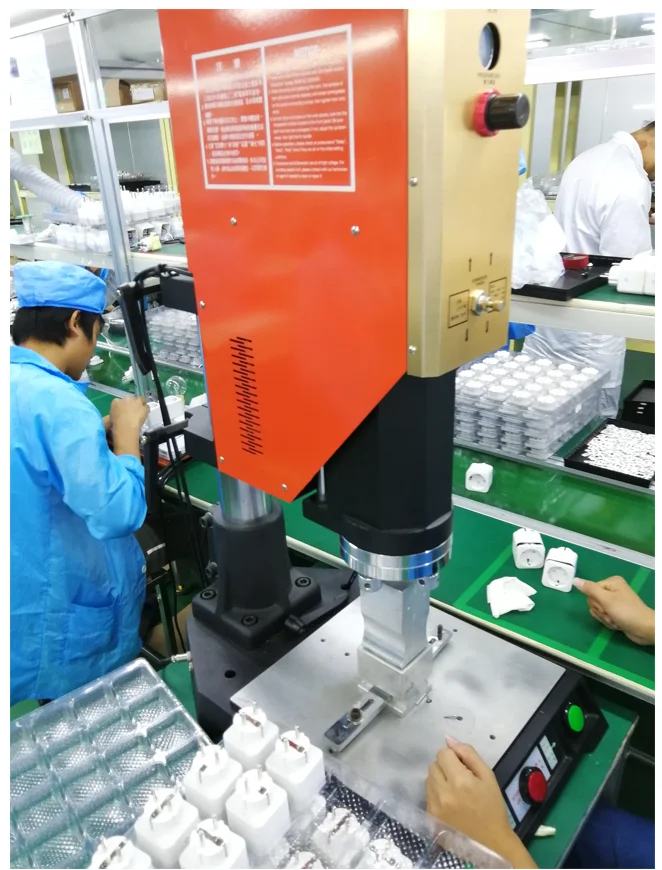

During production process , our engineers go to check each production line to ensure each process in good situation.

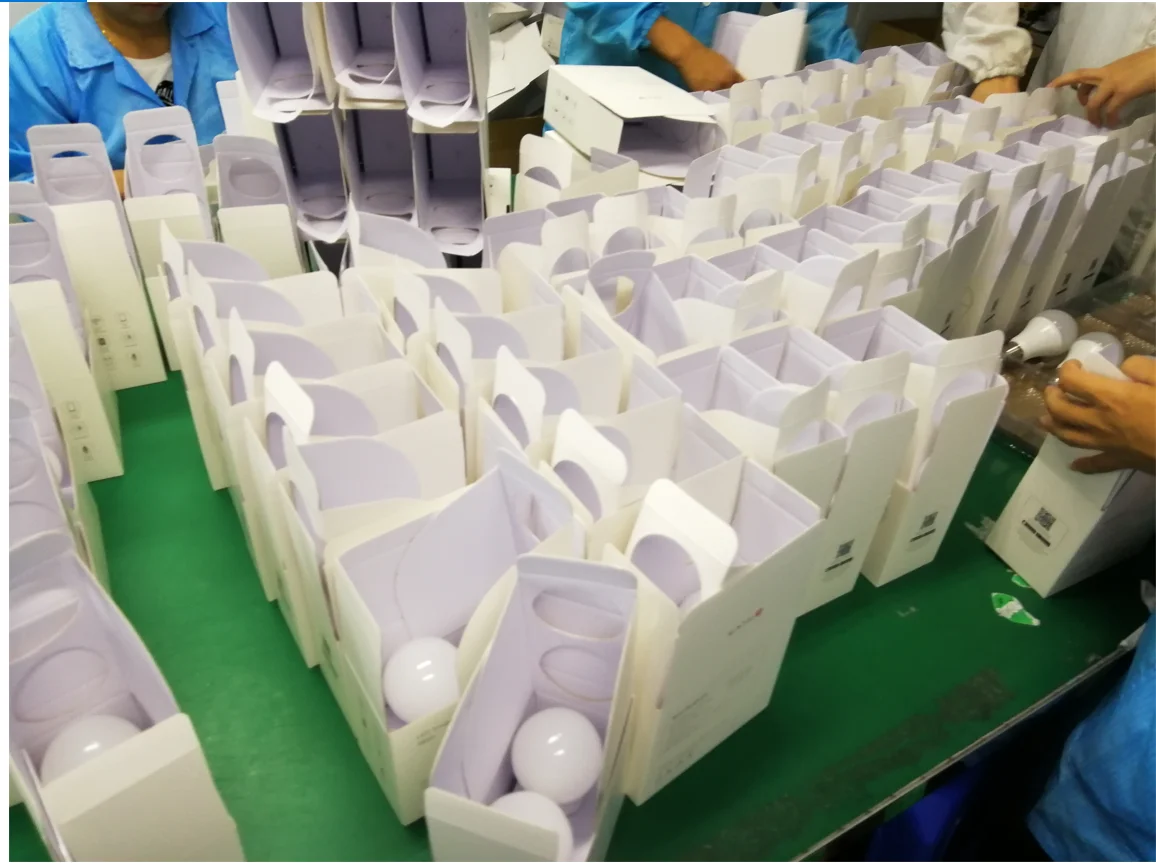

When we are packing the goods, we will check all spare parts included in the gift box by scale one by one.
After packing, our QC team will make random inspection again to ensure the goods in good quality.
We are in Baoan Shenzhen, with 3000 Square Meter class 100 dust-free purification workshop, and employees up to 400, our monthly output is 100k pieces with current export of 80% of all products. We export to over 80 countries and regions, especially USA, EU, UK, Russia, Mexico, Brazil, Southeast Asia etc.
All of our products will be aged for 2 hours and tested three times before packing. Our QC team test each product based on international testing method .
During production process , our engineers go to check each production line to ensure each process in good situation.
When we are packing the goods, we will check all spare parts included in the gift box by scale one by one.
After packing, our QC team will make random inspection again to ensure the goods in good quality.
