1.Description:

Upgrade your audio setup with the SPDIF 4×2 Matrix Switch! This professional digital audio splitter and switcher allows you to connect up to four SPDIF input sources and route them independently to two output zones. Perfect for home theaters, conference rooms, and studio environments, it supports high-resolution audio formats including DTS-HD, Dolby TrueHD, DTS, Dolby AC3, and DSD. Enjoy seamless switching, stable signal transmission up to 40m, and power-off memory function. The included remote control offers convenient operation.

2.Key Features:

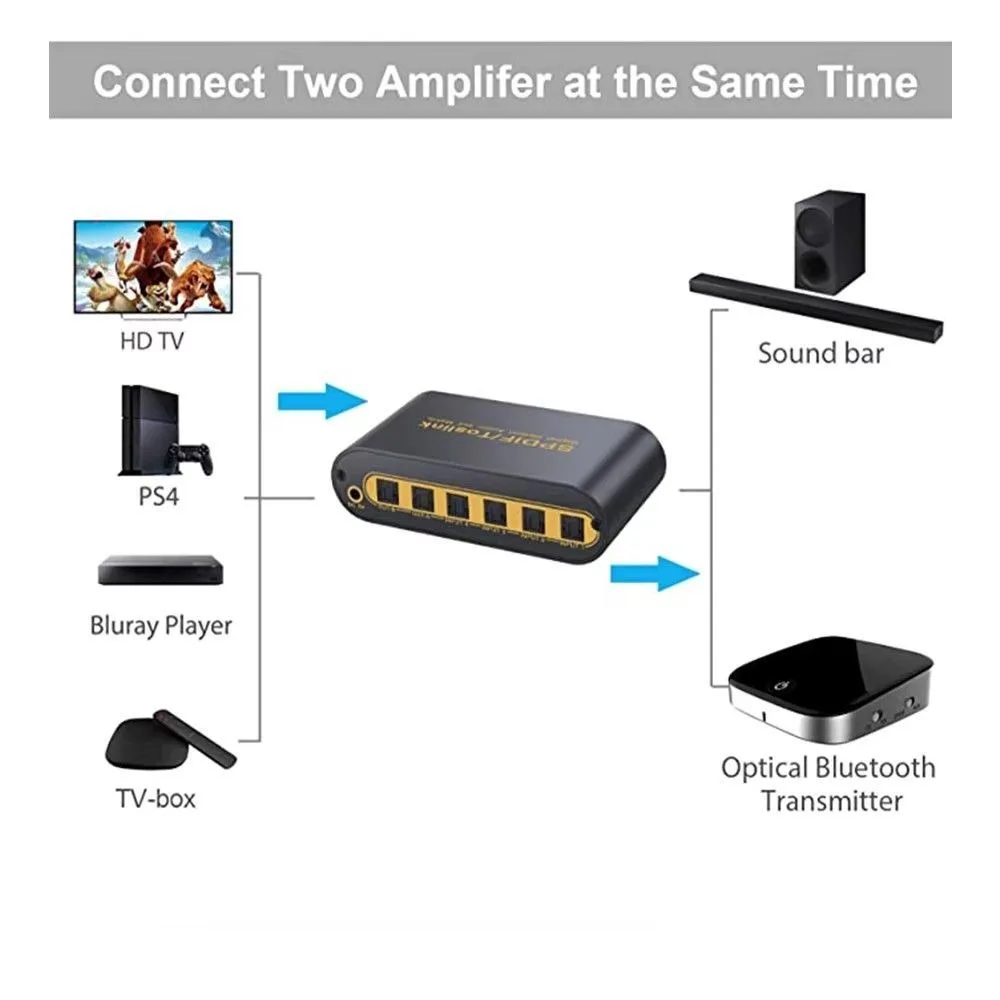

• 4×2 Matrix Functionality: Independently switch and split four SPDIF input signals to two output devices (A and B). Perfect for multi-zone audio distribution.

• High-Quality Audio Support: Fully compatible with popular audio formats including DTS-HD, Dolby TrueHD, DTS, Dolby AC3, DSD, and LPCM 2.0 for an immersive sound experience.

• Long-Distance Transmission: Supports signal transmission via optical cable up to 40 meters without quality loss, ideal for professional installations.

• Power-Off Memory: Automatically remembers the last used settings when powered back on, ensuring continuous and hassle-free operation.

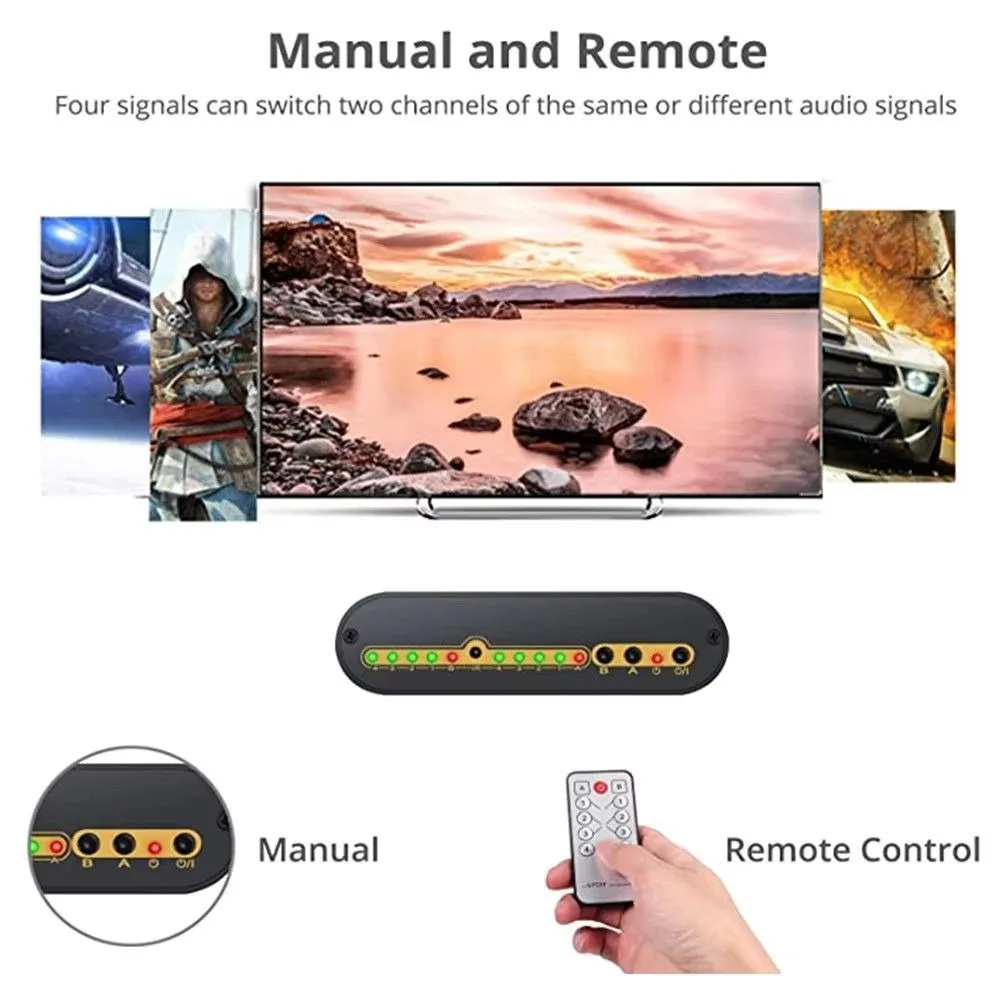

• Easy Operation & LED Indicators: Simple control via the included remote control or front panel buttons. Clear LED lights display the working status for each channel at a glance.

• Stable & Reliable: Built with reverse voltage protection to prevent damage from incorrect power adapter connection.

3.Specification:

• Audio Format Support: DTS-HD, Dolby TrueHD, LPCM 2.0, DTS, Dolby AC3, DSD

• Max Bandwidth: 16Mbps

• Max Transmission Distance: 40m (Optical Cable)

• Power Supply: DC 5V/500mA (Power Adapter Included)

• Input Voltage: AC 100-240V, 50/60Hz

• Operating Temperature: 0°C – 40°C

• Operating Humidity: 5% – 90% RH (Non-Condensing)

• Product Dimension: 68 x 512 x 20 mm

• Product Weight: 65g

4.Package Includes:

• 1 x SPDIF 4×2 Matrix Switch

• 1 x Remote Control

• 1 x 5V Power Adapter

• 1 x User Manual (English)
