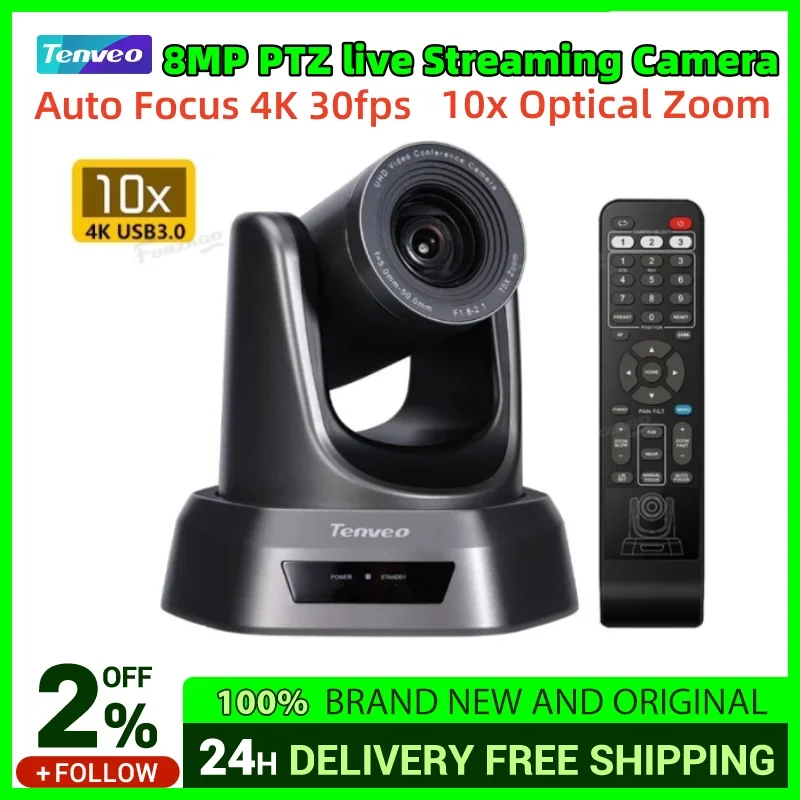

Tenveo 8MP PTZ live Streaming Camera Auto Focus 4K 30fps Video Conference Broadcast Camera 10x Optical Zoom USB3.0 Output
القسم: غير مصنف
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- High-concerned chemical: None
- Electric: No
- Photography Accessories Type: Photography Kits
- Model Number: NV400
- Package: Yes
- Origin: Mainland China
- PK1: FEELWORLD 20X NDI20X
- PK2: OBSBOT Tiny
- PK3: OBSBOT Tiny 4K
- PK4: OBSBOT Meet 4K
- PK5: Avmatrix PTZ1271
- PK6: SMTAV 3X Zoom USB PTZ
- PK7: Kandao Meeting Pro
- PK8: KanDao Meeting 360
- 1: Confernce Room Camera
- 2: Streaming Video Camara
- 3: camara video 4k streaming
- 4: video camara profesional streaming
- 5: camara video streaming
- Image Sensor: 1/1.2.8
- Effective pixel: 8.29 mega pixel (16:9 )
- Zoom: 10x optical zoom lens
- Video output: USB3.0
- Video Compression Format: YUV, MJPG, H.264, H.265
- model number: Tenveo 8MP
Brand Name : TENVEO
Origin : CN(Origin)
Max. Resolution : 3840×2160
Certification : CE
Certification : RoHS
Package : Yes
Pixels : 8 Mega
Image Sensor : CMOS
Model Number : NV400
Auto Focus : Yes
Interface Type : USB
Image Sensor : 1/1.2.8” Sony UHD CMOS
Effective pixel : 8.29 mega pixel (16:9 )
Horizontal Resolution : 4K(3840 x 2160), 2K(2560*1440), 1080P(1920*1080)
Zoom : 10x optical zoom lens, 10xdigial zoom
Minimum luminance : Colour: 0.01 lux (F1.5, AGC ON) 0.001 lux with IR
Preset position : IR remote control supports 10 presets, PELCO Protocol supports 255 presets
Video output : USB3.0
Video Compression Format : YUV, MJPG, H.264, H.265
NV400 PTZ live Streaming Camera 4K@30fps Video Conference Broadcast Camera 10x Optical Zoom USB3.0 Output for Church Business Meeting Education Events
USB3.0 video output
1/2.8” Sony UHD CMOS
8.29 mega pixel (16:9 )
4K(3840 x 2160), 2K(2560*1440), 1080P(1920*1080)
10x optical zoom
Pan: 350° Tilt :180°

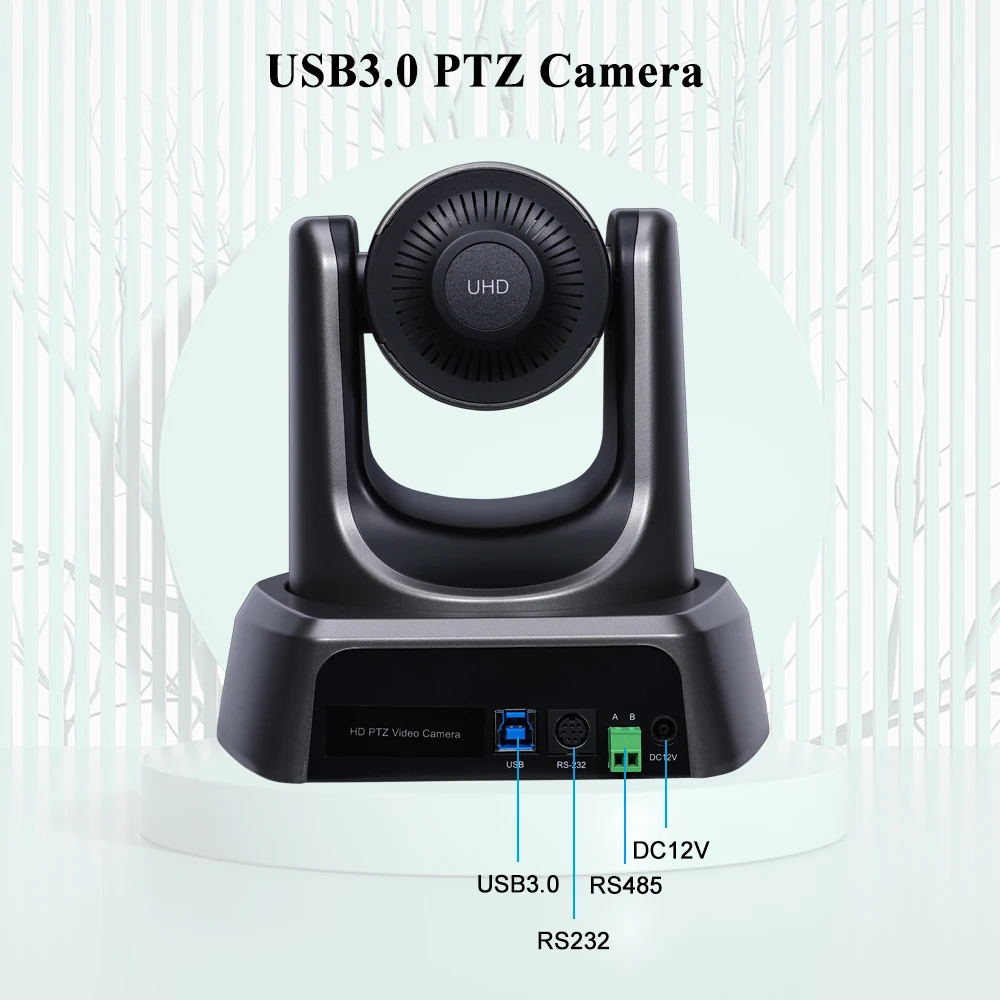

RS-232, RS-485, IR remote control
Supports YUV, MJPG, H.264, H.265
Tips: Press the Number(0-9) directly to call the reserved preset. Fast and Smooth
PRESET+Number: To set preset position of this number.
RESET+Number: To clear preset position of this number.
Specification
10x optical zoom
Sleek and intelligent design
Plug & Play USB3.0 Connectivity
4k(3840X2160 ) Ultra HD video resolution
Accurate, smooth and silent PTZ Movement
Preset: 10 via IR remote setting (255 via RS232)
Superior quality with Full Glass Lens Material
77.2° wide field of view with no video distortion
1/2.8” Sony UHD CMOS, 8.29 mega pixel (16:9)

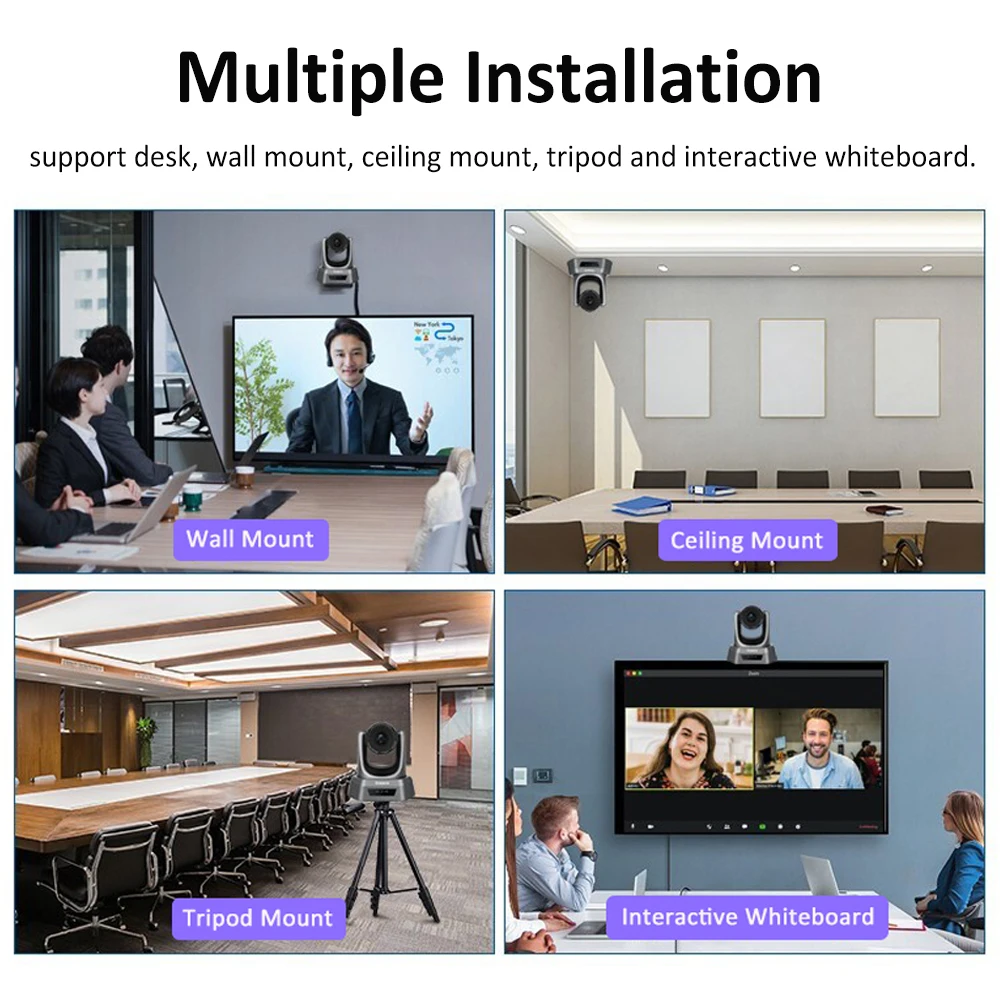

Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platform
Pictures
Specification
Model No. | TEVO-NV400 |
Image Sensor | 1/2.8” Sony UHD CMOS |
Effective pixel | 8.29 mega pixel (16:9 ) |
Horizontal Resolution | 4K(3840 x 2160), 2K(2560*1440), 1080P(1920*1080) |
Signal standard | NTSC/P AL |
Zoom | 10x optical zoom |
Focal length | F=5.0mm(wide)-50.0(tele) F1.8(W)-2.1(T) |
Horizontal Angle | 77.2°-10.1° |
Gain control | Auto/manual |
Focus | Auto/manual |
SNR ratio | ≥50dB |
Wide dynamic | D-WDR |
Shutter speed | 8to1/ 10000s(auto) |
Preset position | IR remote control supports 10 presets |

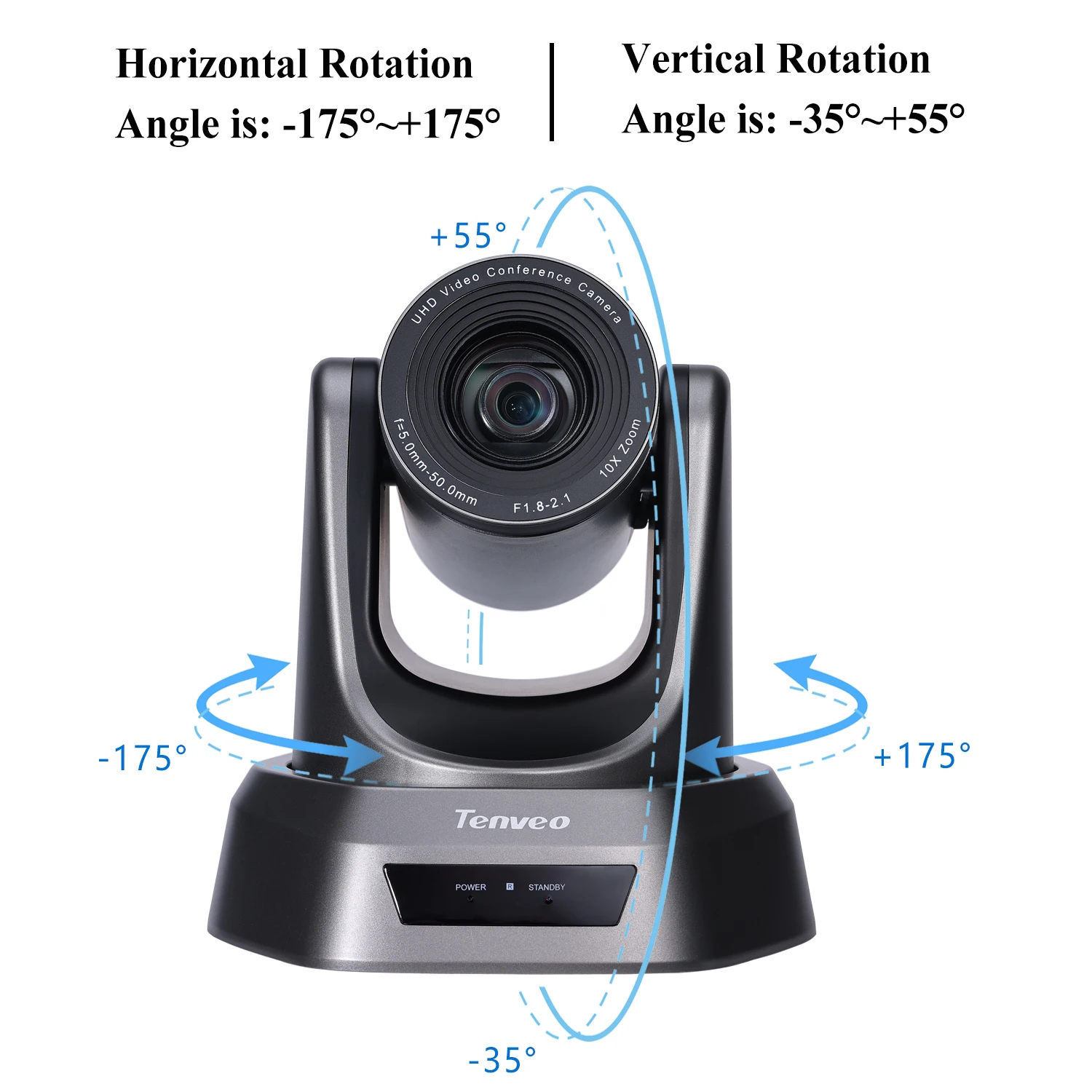

Pan/Tilt movement range | Pan: 350°(max speed 100°/S), Tilt: 180°(max speed 80°/S) |
Control terminal | RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485） |
Video output | USB3.0 |
Video Compression Format | YUV, MJPEG, H.264, H.265 |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 38400/9600bps |
Decoder | Built-in |
Address set | 1~64 |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply | DC12 V/ 2A |
Power consumption | 12 W |
Net weight/Gross weight | 1.5kg/2.85kg(before / after packing) |

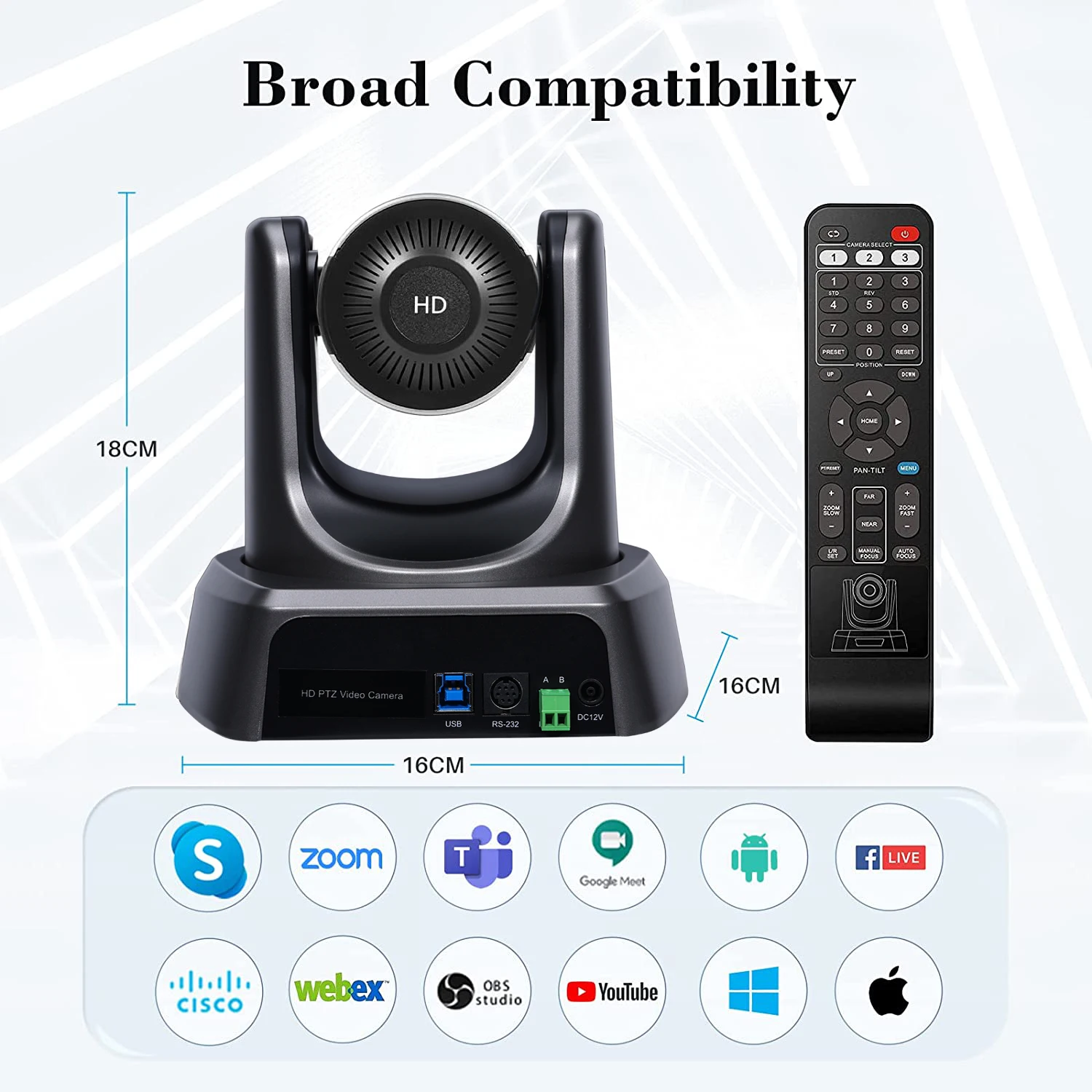

Dimension(LXWXH) | 162*172*175mm /257*220*210mm (before / after packing) |
Accessories | DC 12V Power adaptor, IR remote control, Manual, USB 3.0 cable, Ceiling brackets & screws. |
What’s in the box
1 x Camera
1 x DC/12V power adaptor
1 x IR remote control
1 x Manual
1 x USB 3.0 cable
1 x Brackets & screws
1 x Warranty card
1 x Certificate of qualification
Tenveo Camera FAQ
Q:What kind of camera should I use?
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software. For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and boardrooms, and large auditorium spaces. You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:Can I bring more than one person into a call at the same time?
A:Yes. We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their laptops, pad or mobile phones, 500 different video conferencing systems full of people or some mix of individuals and video conferencing systems.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0, HDMI, HD-SDI, DVI, YPBPR and CVBS Video output.
Q:How many time zoom?
A:Support fixed focus, 3X, 10X, 20X, 30X optical zoom.
Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
Q:Which kind of software compatible with this Camera?
A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh, WebEx, easy meeting, Vidtel and working with Microsoft Lync Software, and ZOOM.US, SKYPE, VIDYO Etc.
| High-concerned chemical | None |
|---|---|
| Electric | No |
| Photography Accessories Type | Photography Kits |
| model number | Tenveo 8MP |
| Package | Yes |
| Origin | Mainland China |
| PK1 | FEELWORLD 20X NDI20X |
| PK2 | OBSBOT Tiny |
| PK3 | OBSBOT Tiny 4K |
| PK4 | OBSBOT Meet 4K |
| PK5 | Avmatrix PTZ1271 |
| PK6 | SMTAV 3X Zoom USB PTZ |
| PK7 | Kandao Meeting Pro |
| PK8 | KanDao Meeting 360 |
| 1 | Confernce Room Camera |
| 2 | Streaming Video Camara |
| 3 | camara video 4k streaming |
| 4 | video camara profesional streaming |
| 5 | camara video streaming |
| Image Sensor | 1/1.2.8 |
| Effective pixel | 8.29 mega pixel (16:9 ) |
| Zoom | 10x optical zoom lens |
| Video output | USB3.0 |
| Video Compression Format | YUV, MJPG, H.264, H.265 |
| Color |
