HIGHLIGHT

[ APP Control ]

Just tap on tuya smart life App to turn on a light anytime and anywhere. A lighted house anticipates your arrival

[ Timer & Schedule ]

Set up timing schedules to save the trouble of overcooking the dish

[ Hands-free Voice Control ]

Compatible with Alexa & Google Home, the smart switch allows you to control lights on/off with your voice

[ Share Control ]

Share control of your home appliances to your family or friends so that they can also control the devices remotely

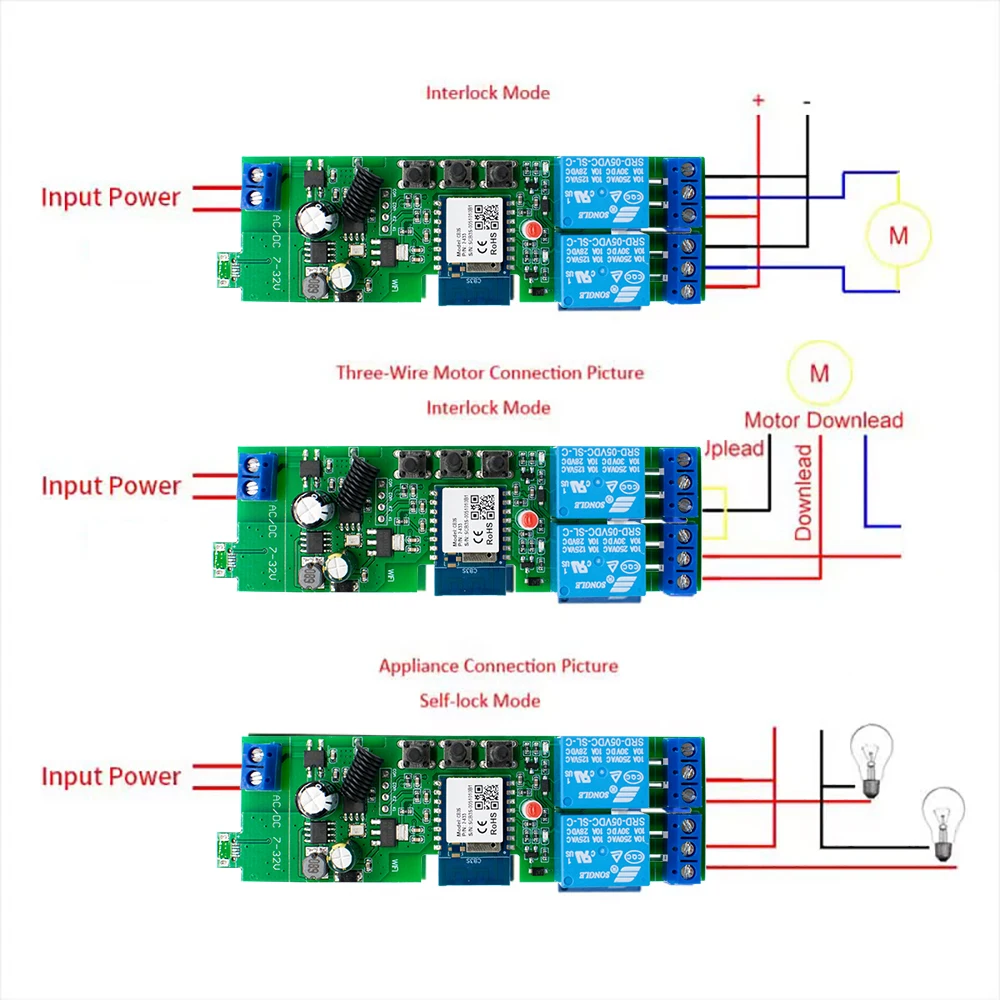

[ 3 Working Modes ]

Self-locking, inching mode, Interlocking mode

[ Make Your Garage Door Smart ]

Note before Order, please test compatibility

– Please check if your garage controller is compatible with our module.

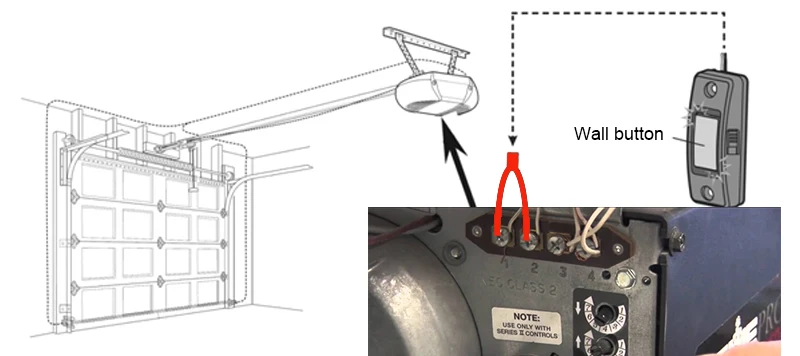

– You can use the pliers to short-circuit the wall button terminal on the opener. If the garage door opens or closes, it can work with our smart controller.

[ RF Function ]

Choose the wifi switch with RF function, you can have three control methods. Remote control, mobile phone control, voice control

How to Change the Inching Time

If you need to change the inching time.you need to press the mode button to enter into self-locking mode or interlocking mode,so you can change the inching time on the APP and the inching time only available in the self-locking or interlocking mode)
The time range is 2-3600 seconds.

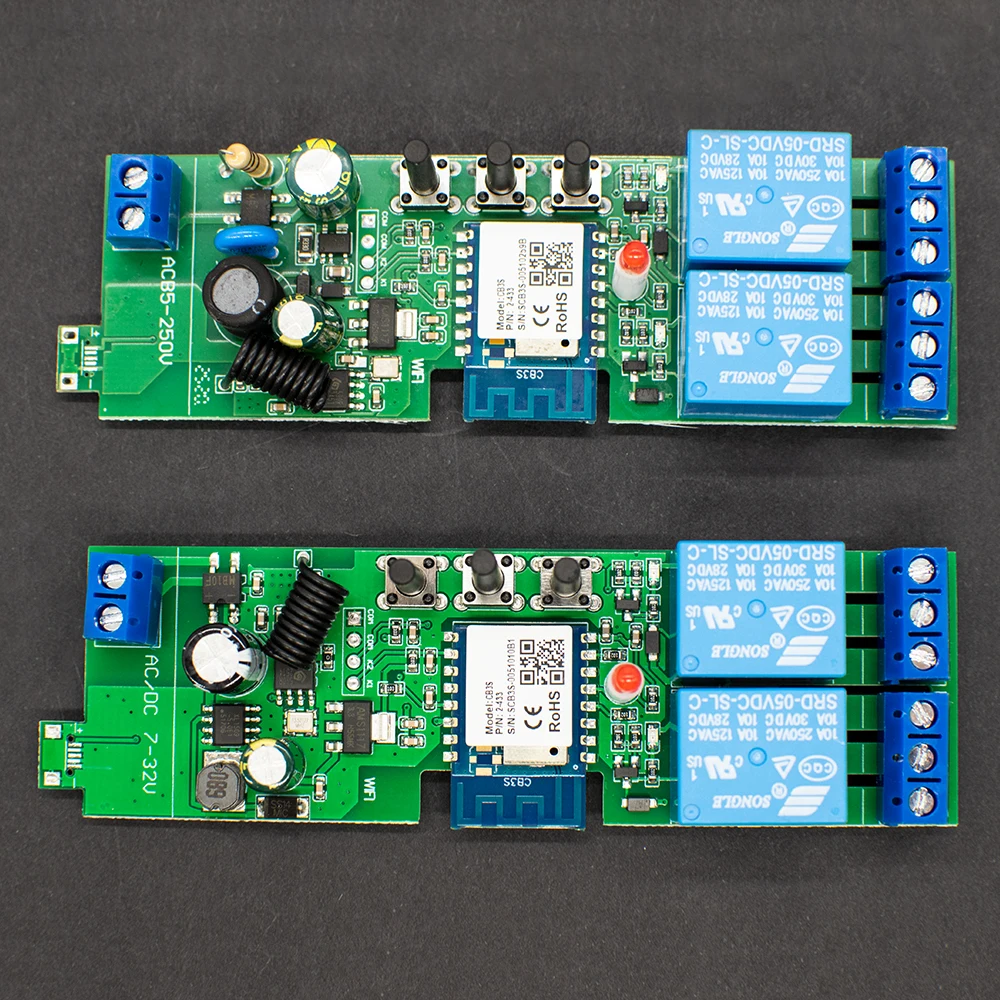

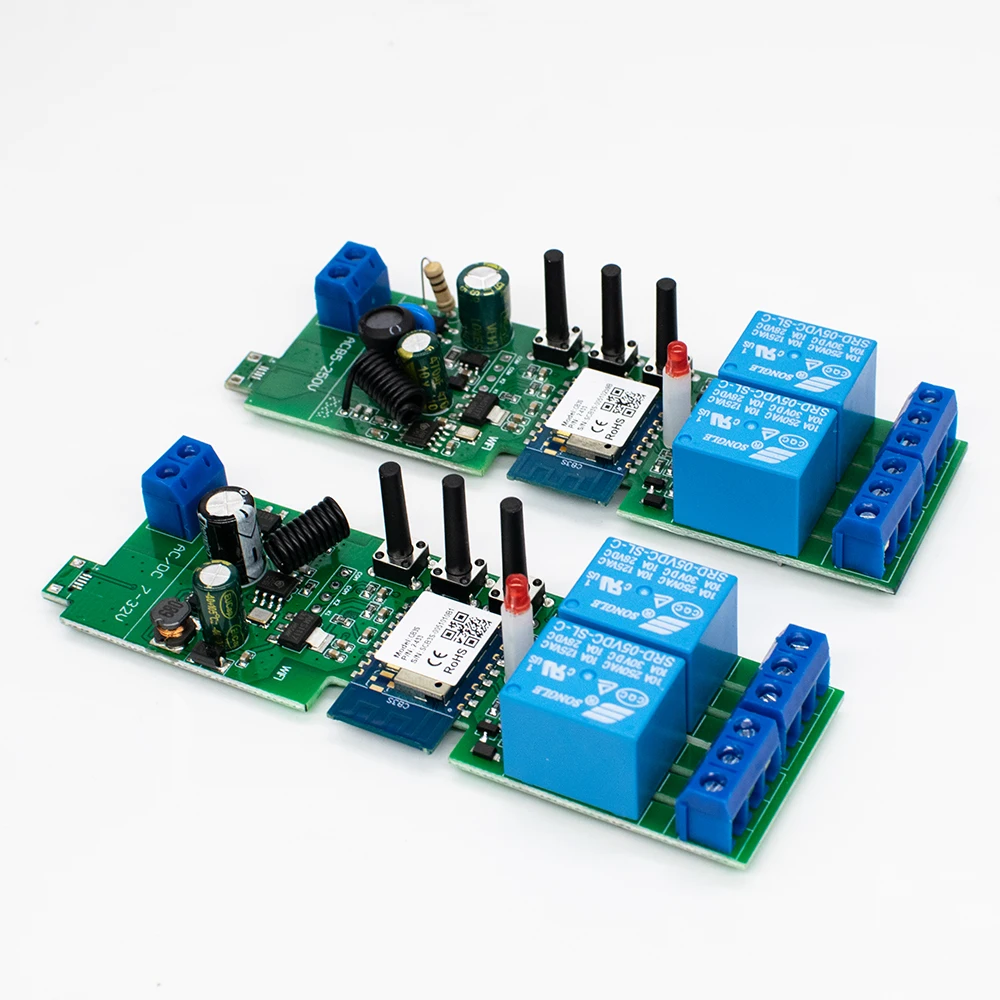

Description:

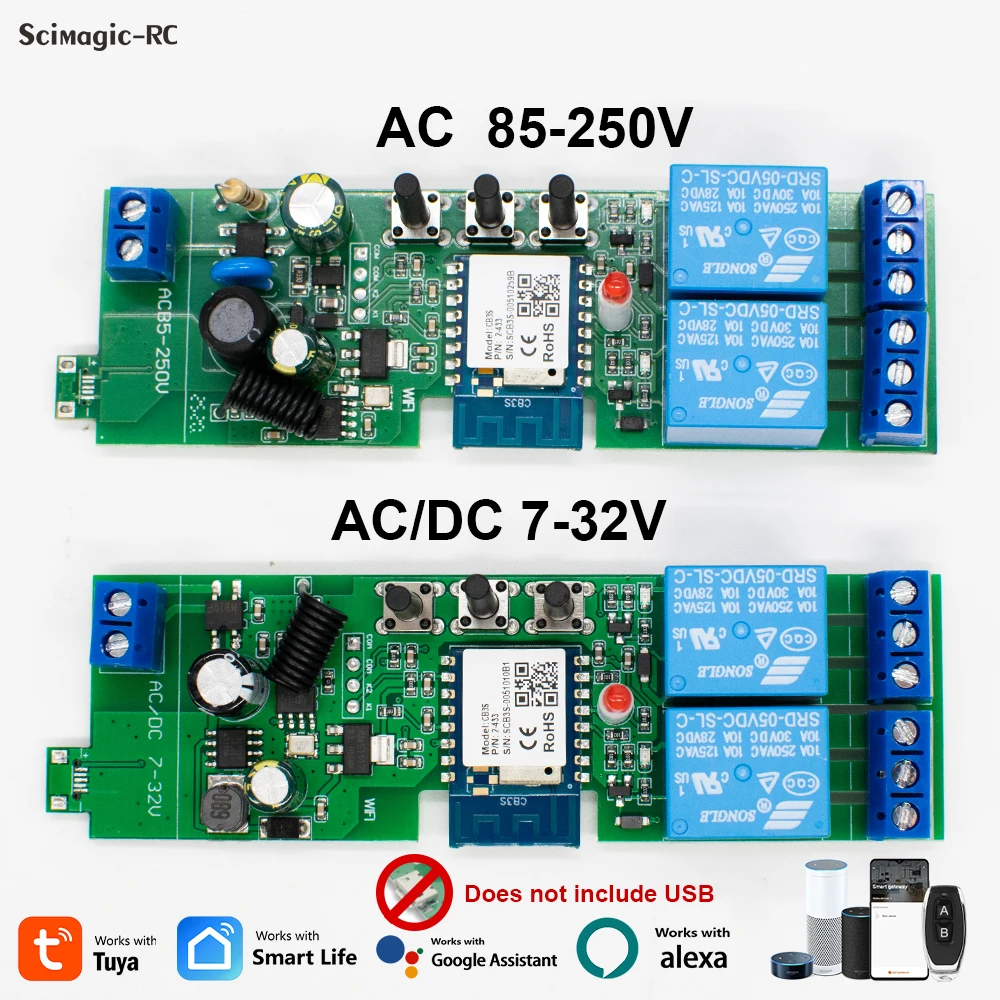

Input 1:(screw terminal port):AC 85-250V
Input 2:(screw terminal port):AC/DC 7-32V
NO,NC,COM Output:Passive Output(Dry contact)
Working frequency: 50-60Hz
RF433 Frequency
Working temperature: -20-70℃
Wifi standards/ protocol :IEEE 802.11b/g/n, WIFI 2.4Ghz
Total load power: 22000W
Max current:10A

APP Remote Control

You can remote turn on/off household appliances and set timing schedules to turn on/off the household appliances via app Tuya/Smart life anywhere anytime.
such as lights, celectric curtains ,electric curtains fans. so you can enjoy an high-tech life.

Timer

Via app,you can set time schedules to automatic turn on/off the household appliances , such as lights, celectric curtains ,electric curtains fans. so you can enjoy an high-tech life.

Family Sharing

Share the control with family member.Enjoy the convenience and happiness together

View at any time on your mobile phone.Switching power supply

Check and control the power switch at any time, saving electricity and convenient to use

Three control methods for easy control

Voice control, app control, remote control

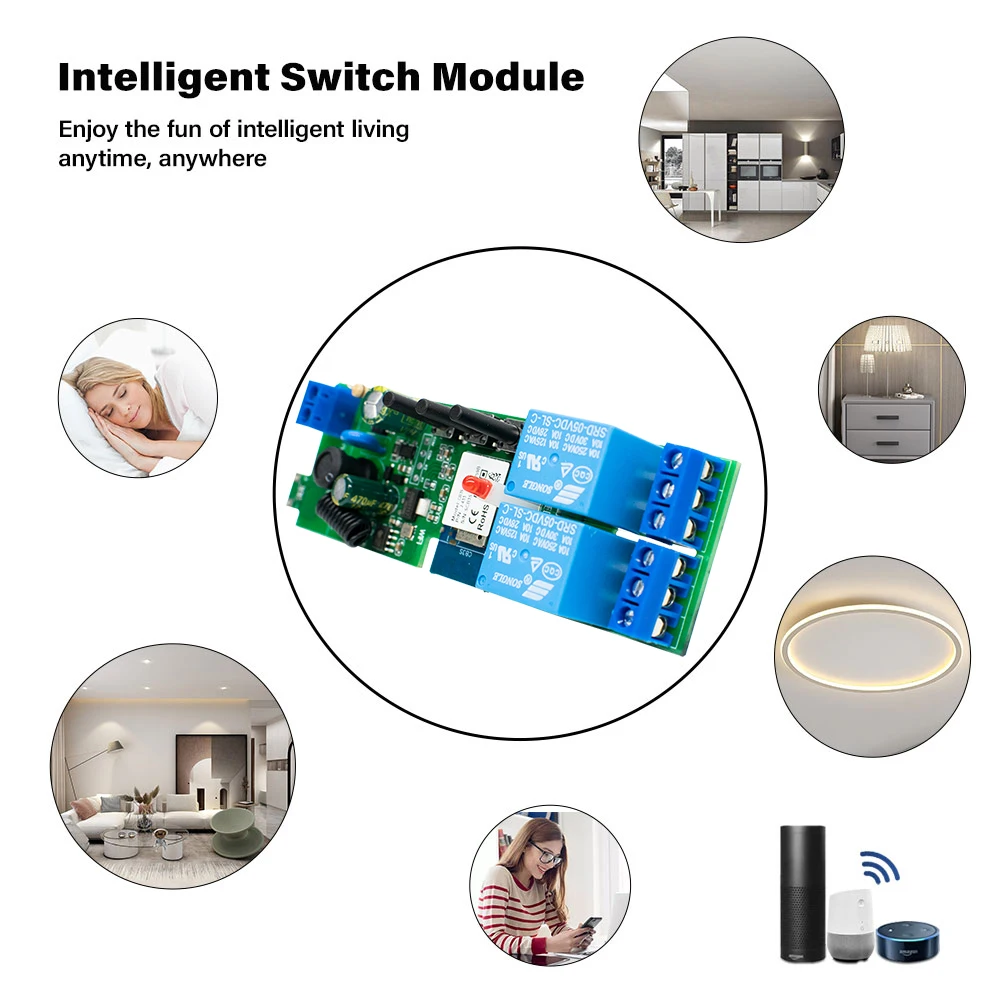

Smart switch, bid farewell to traditional switching methods

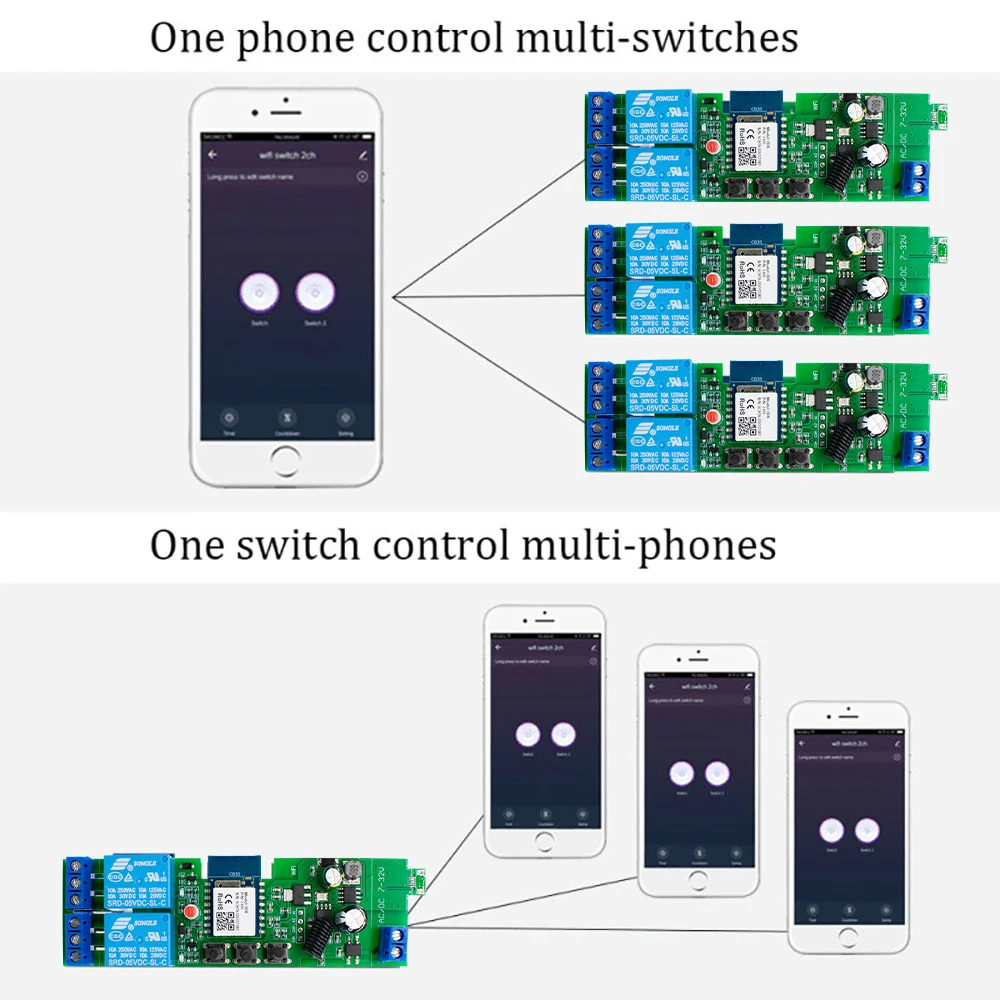

Control multiple devices at the same time

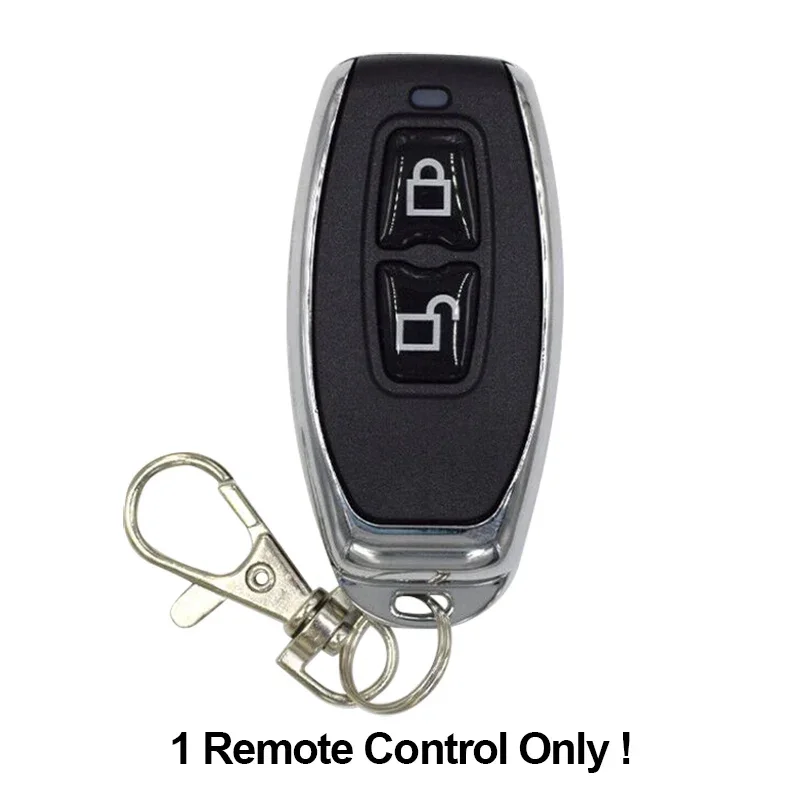

About the remote control:

1. The remote control is sent without batteries.
*Battery model: 2pcs CR2016
2. The WIFI module only supports 1527 learning code 433MHz remote control
