We can provide the API service for this product.

This service will add an extra fee.

If you need it, please feel free to contact us. We will give you our best attention at all times.

Notice:

This device is not compatible with Home Assistant, please use the device in SMART LIFE APP/ TUYA APP.

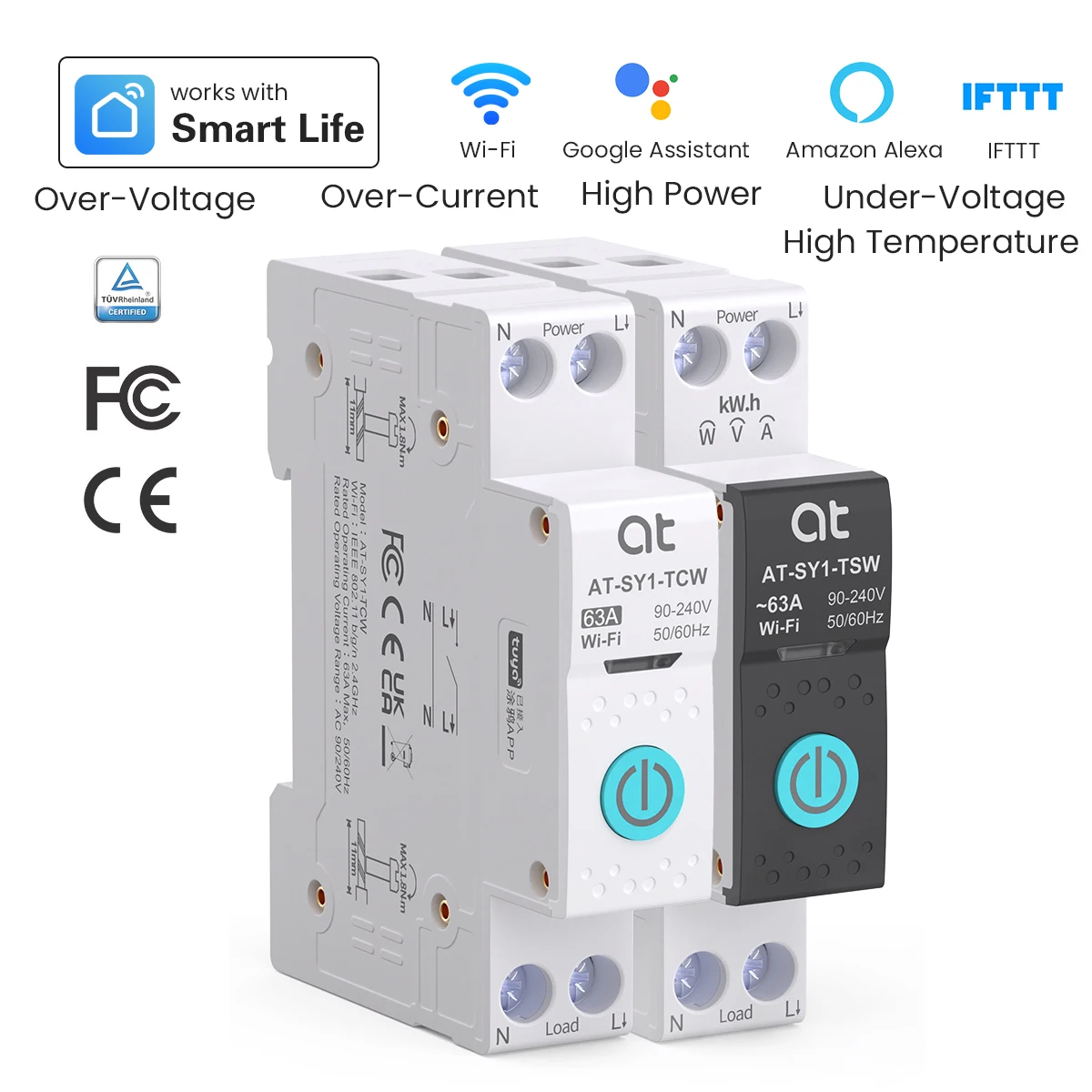

Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.

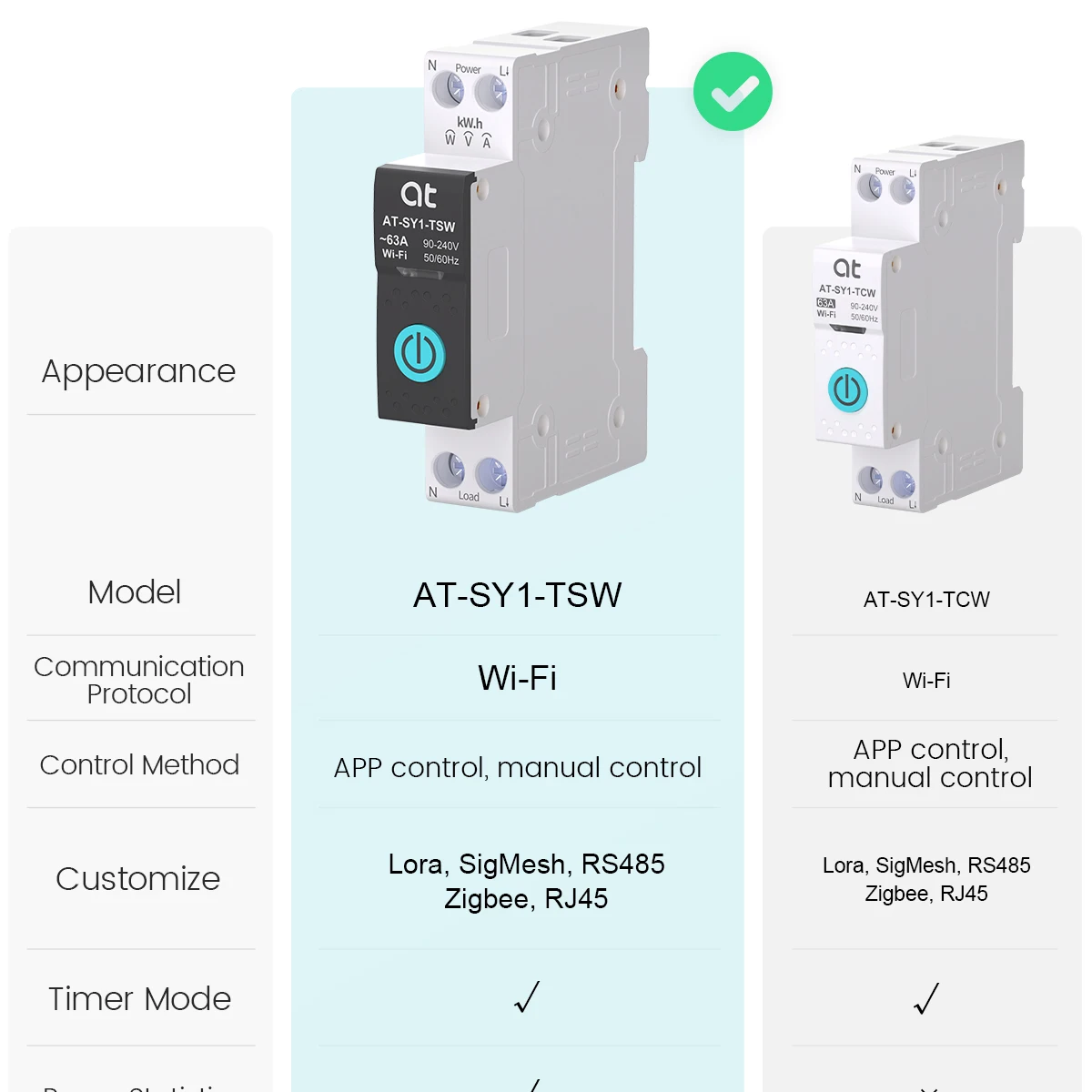

The white model has no power meter function

The Black model with power meter function

Both models have overcurrent and overvoltage protection, which can be set in the app.

Feature:
Remote control at anytime from anywhere by TUYA / Smart Life app on mobile ,no distance limit.
Schedule /Timing, countdown, cycle timing，Astronomical timing.
Voice control by Amazon Alexa echo dot / Google assistant

Parameter:
Working voltage:AC90-240V,50/60Hz
Current type:63A
Wireless type:Wi-Fi 2.4GHz
Support system:AndroidiOS

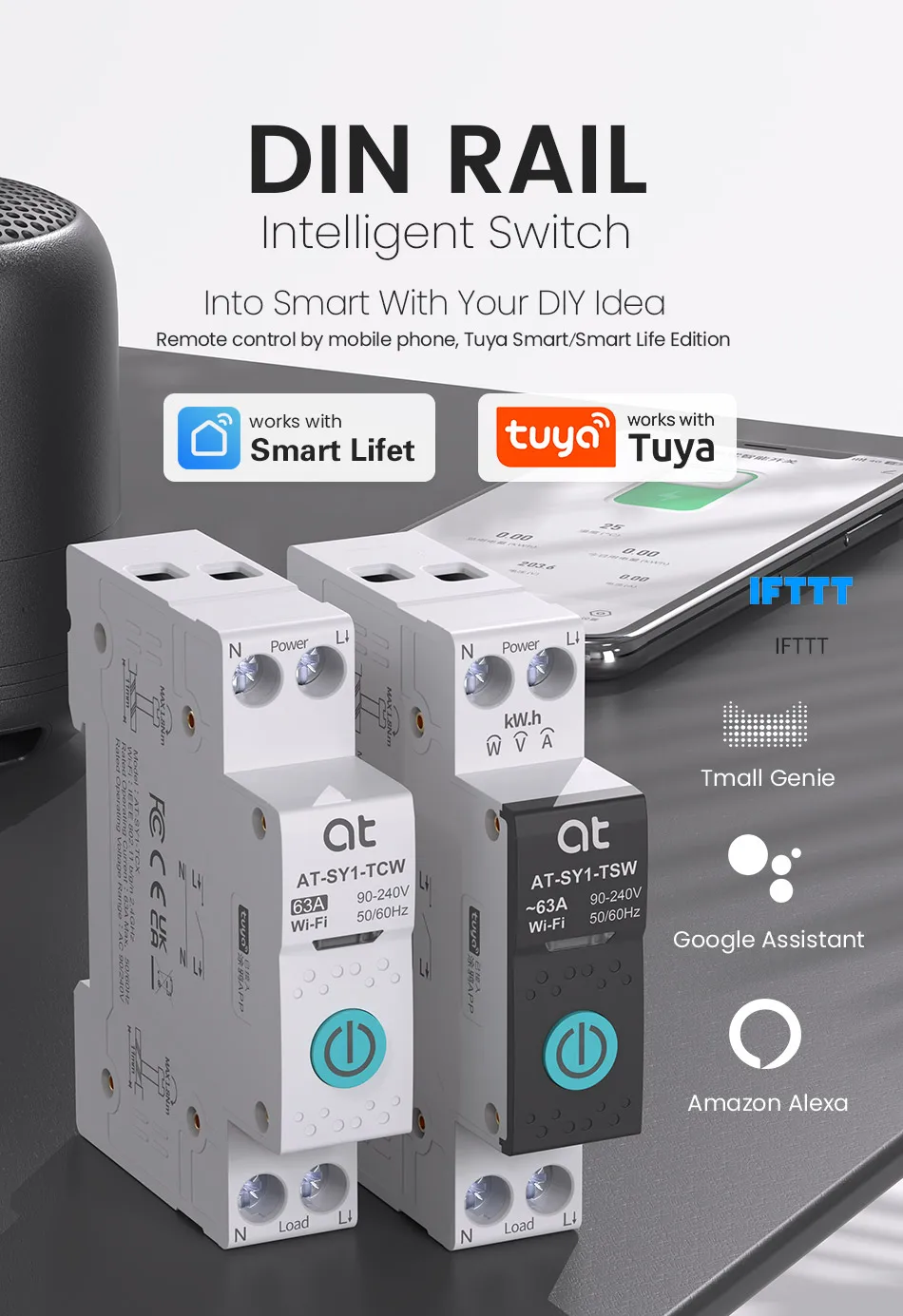

DIN RAIL

Intelligent Switch

Into Smart With Your DIY Idea

Remote control by mobile phone, Tuya Smart/Smart Life Edition

OPEN ANEW ERA OF INTELLIGENCE

Into Smart With Your DIY Idea

1. Remote Control

2. Voice Control

3. Over-Current Protection

4. Timer Mode

5. Electricity Statistics

6. Alarm Settings

7. Power On Status

8. Maintenance Lock

9. History Log

10. Countdown

11. Indicator Light Status

NUEVAS ACTUALIZACIONES

De productos

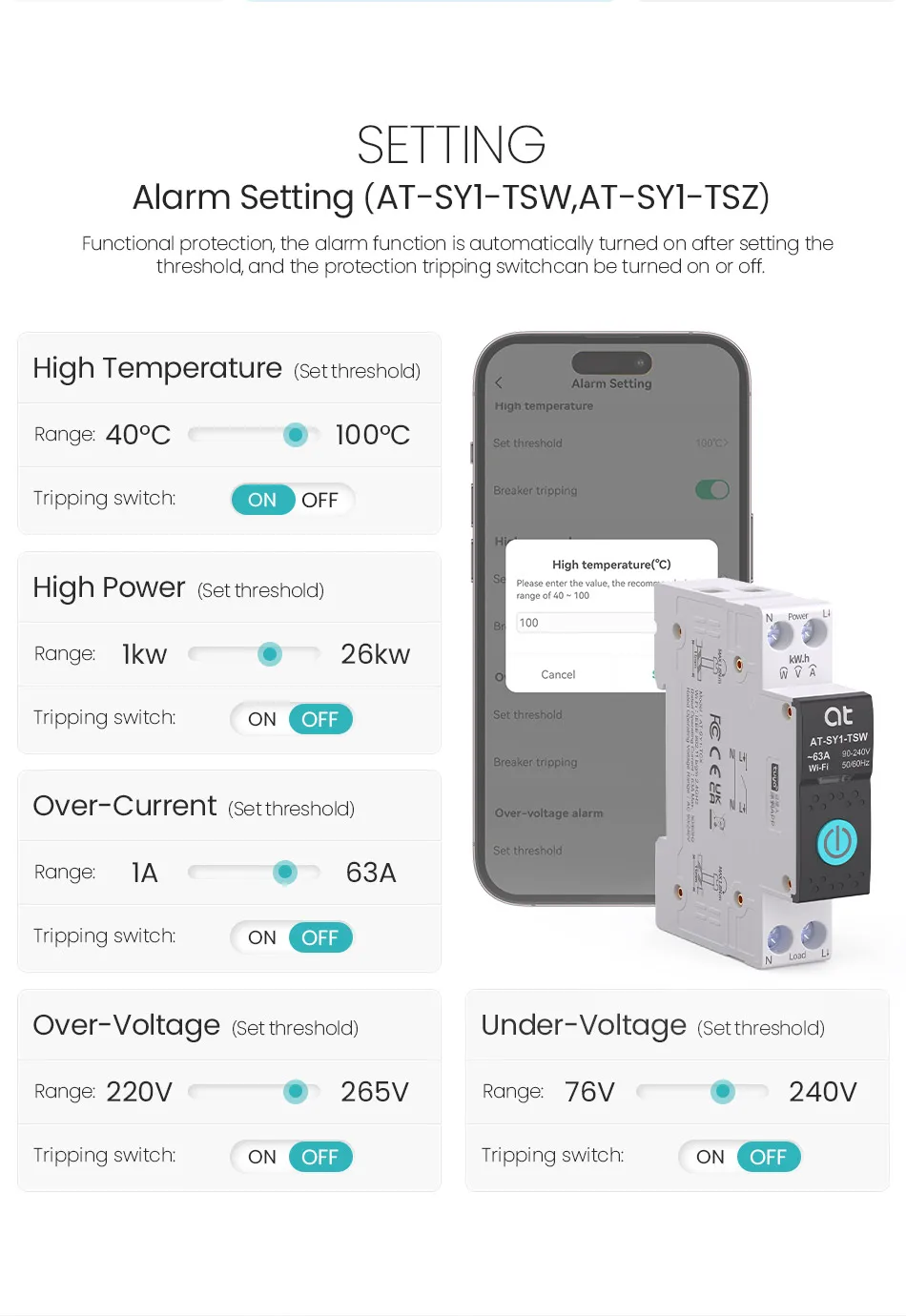

SETTING

Alarm Setting(AT-SY1-TSW,AT-SY1-TSZ)

Functional protection, the alarm function is automatically turned on after setting the threshold, and the protection tripping switch can be turned on or off.

METERING FUNCTION

kWh, Voltage, Current

Setting the device status of the equipment in different scenarios and remotely monitoring the real-time situation of the electrical appliances under load.

VISIBLE SECURITY

Mobile APP reminder for circuit failure

Upgraded protection, rest assured life

Prevention

Hidden danger from short circuit, over power, over voltage, under voltage, high temperature, and electric shock.

View load current, voltage, power in real-time Record(year,month,day,hour)

Electricity consumption in different time periods

Voice Controls

Voice linkage

Compatible with Amazon Alexa,Google Home.

What do you want to control? Just say it.

TIME ON/OFF

Setup the switch on/off time via the APP

Schedule Mode: The device can be switch ed on and off at specified time points.

Sunset Mode: The equipment is on/off before sunset, at sunset, and after sunset.

Circulate Mode: The device can be turned on/off repeatedly during the set period.

DIMENSION DIAGRAM

PRODUCT MODEL:AT-SY1-TCW, AT-SY1-TSW, AT-SY1-TSZ

RATED FREQUENCY:50/60Hz

SERVICE TEMPERATURE:40℃~100℃

CUSTOMIZATION:Lora, sigMesh, RS485, ZigBee, RJ45

Control Type:Manual, Remote Control

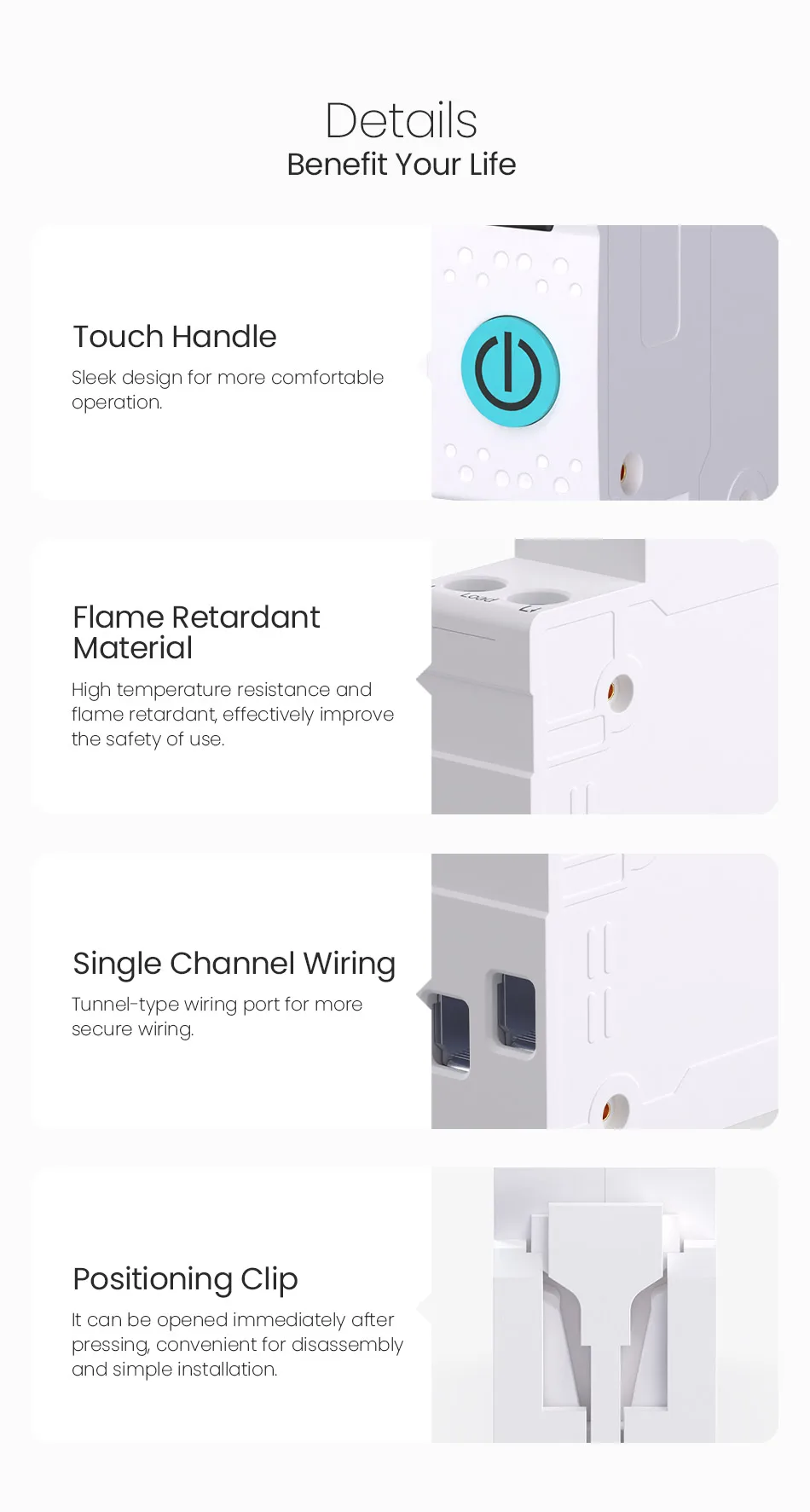

Details

Benefit Your Life

Touch Handle:  Sleek design for more comfortable operation.

Flame Retardant Material: High temperature resistance and flame retardant, effectively improve the safety of use.

Single Channel Wiring: Tunnel-type wiring port for more secure wiring.

Positioning Clip: It can be opened immediately after pressing, convenient for disassembly and simple installation.

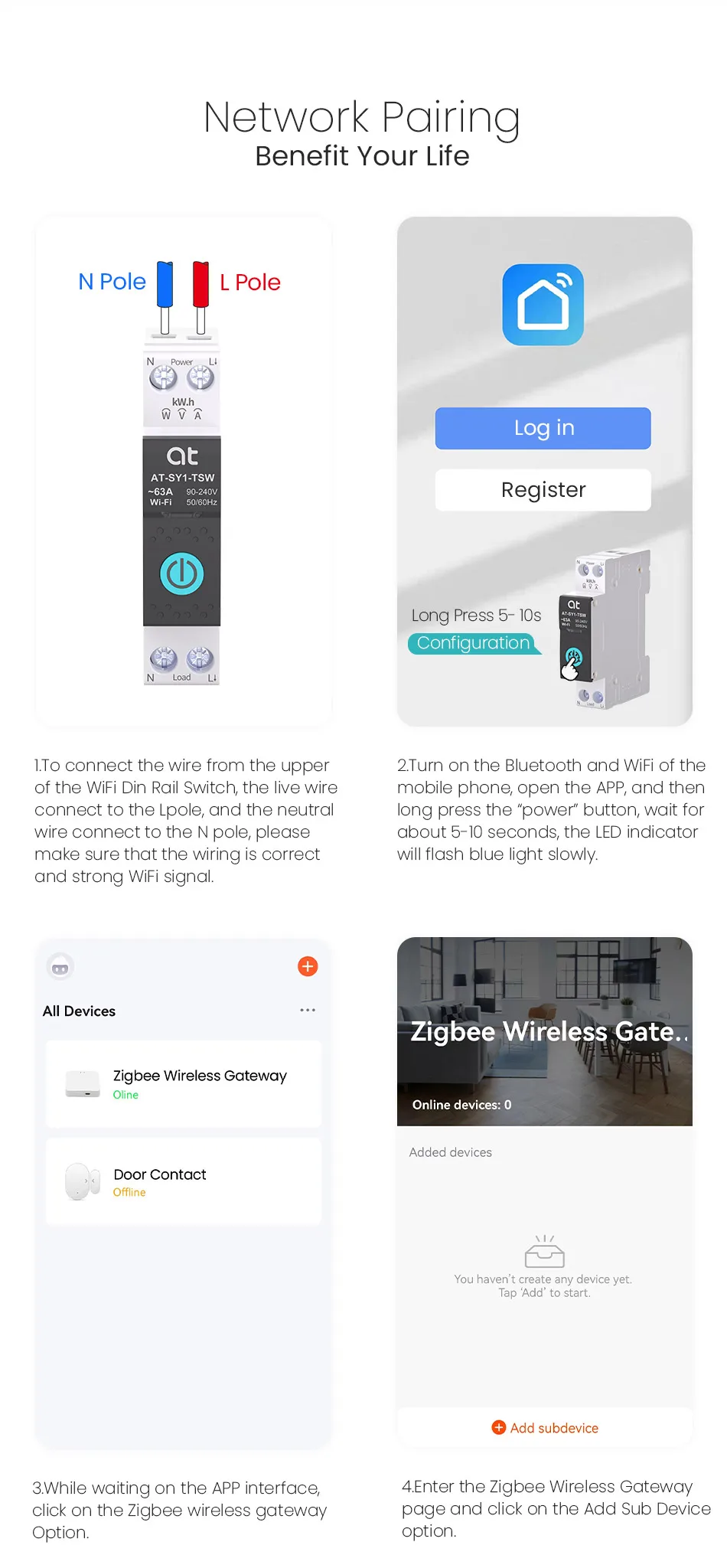

Network Pairing

Benefit Your Life

1. To connect the wire from the upper of the WIFI Din Rail Switch, the live wire connect to the L pole, and the neutral wire connect to the N pole, please make sure that the wiring is correct and strong WIFI Signal.

2. Turn on the Bluetooth and WIFI of the mobile phone, open the APP, and then long press the “power”button, wait for about 5-10 seconds, the LED indicator will flash blue light slowly.

3. While waiting on the APP interface, click on the ZigBee wireless gateway option.

4. Enter the ZigBee Wireless Gateway page and click on the Add Sub Device option.

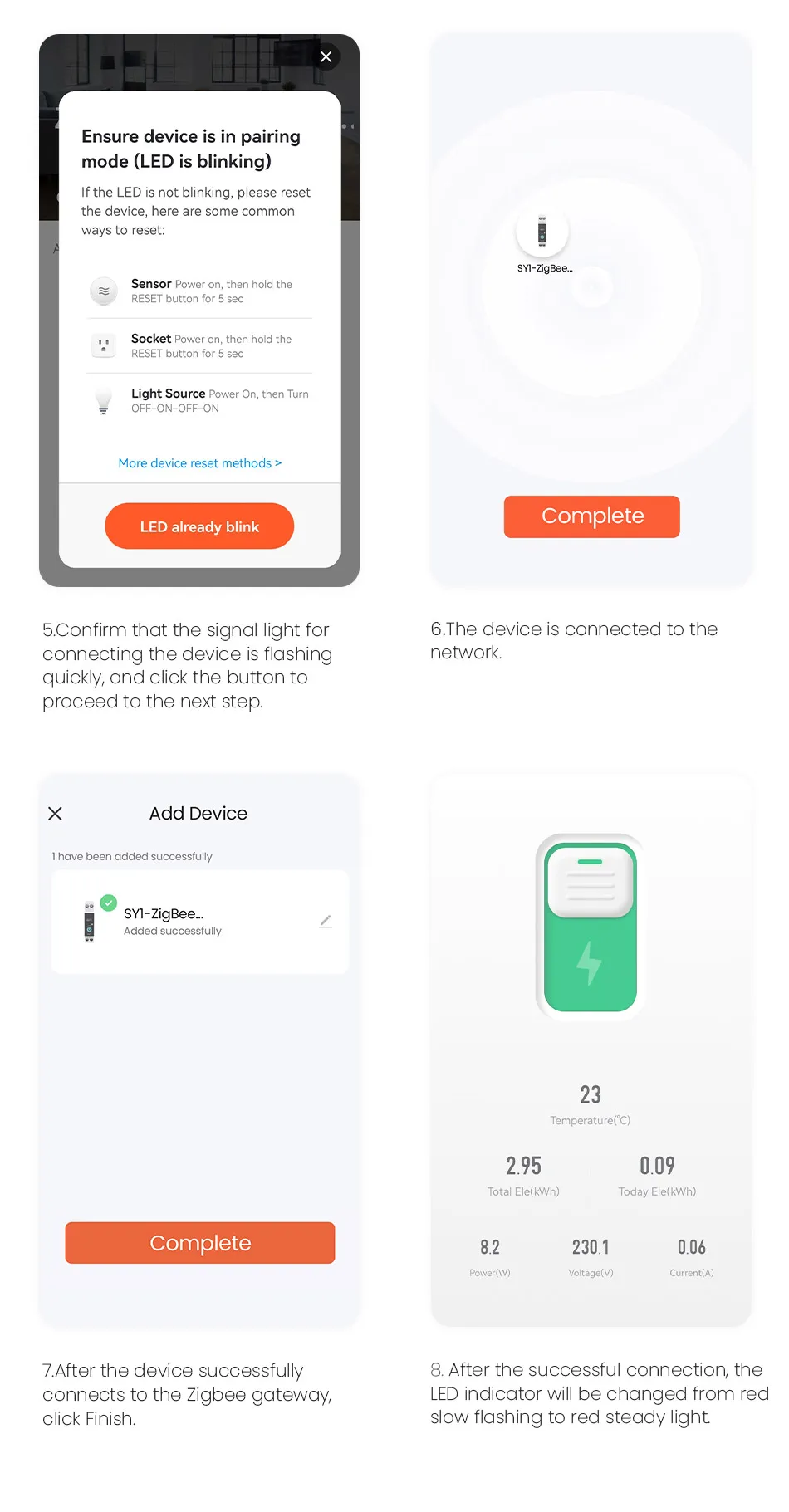

5. Confirm that the signal light for connecting the device is flashing quickly, and click the button to proceed to the next step.

6. The device is connected to the network.

7. After the device successfully connects to the ZigBee gateway, click Finish.

8. After the successful connection, the LED indicator will be changed from red slow flashing to red steady light.
