UGREEN 13-in-1 USB-C HUB Triple Display 4K Dual HDMI DP 10Gbps USB3.2 PD100W SD/TF Docking Station for MacBook Pro Air Dell XPS
القسم: غير مصنف
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Compatible Systems: Windows,MacOS,Linux,Chrome OS,iOS,iPad OS,Android
- Compatible PC Devices: Laptop
- High-concerned chemical: None
- Package: Yes
- Certification: CE,FCC
- Funtion: Card Reader,RJ45,DP,3.5mm,USB-A,USB-C,Charging,HDMI-Compatible
- Standard: USB 3.0
- Ports: 13
- Interface Type: USB 3.2 GEN 2
- Brand Name: UGREEN
- Ports: 13
- Origin: Mainland China
- Plug Type: None
- Product Name: 13-in-1 USB C Docking Station
- Feature 1: 13-in-1 USB C HUB / 4K60Hz USB C HUB / 10Gbps USB C HUB
- Feature 2: USB-C HUB / USB HUB / USB-C Splitter / USB-C Expander
- Triple-Monitor Display: Support up to 4K triple-screen display
- 2xHDMI Ports: HDMI2.0, support HDCP1.4/2.2, video transmission bandwidth 18Gbps
- DP Port: DP1.4, support HDCP1.4/2.2, HDR, video transmission bandwidth 16.2Gbps
- 2xHDMI Ports Resolution: Support 3840*2160@60Hz, backward compatible with 4K@30Hz, 2K@144/120/60Hz, 1080P@240/144/120/60Hz, etc.
- DP Port Resolution: Support 3840*2160@60Hz, backward compatible with 4K@30Hz, 2K@144/120/60Hz, 1080P@240/144/120/60Hz, etc.
- USB-C 3.2 Port: USB3.2 Gen2, 10Gbps, backward compatible with USB3.0/USB2.0/USB1.1, supports BC1.2
- 2xUSB-A 3.2 Ports: USB3.2 Gen2, 10Gbps, backward compatible with USB3.0/USB2.0/USB1.1, supports BC1.2
- 2xUSB-A 3.0 Ports: 5Gbps, backward compatible with USB2.0/USB1.1, does not support BC1.2
- Ethernet:: 1000Mbps, Bbackward compatible with 100/10Mbps
- PD 100W Port: Supports PD3.0, backward compatible with PD2.0, supports up to 100W (20V/5A) charging, connects to the power adapter to power the main device, does not support data transmission
- SD&TF Slots:: SD3.0, 104MB/s, support 2 cards read and write simultaneously
Important Note:
This page features model: 13-in-1 10G 4K60Hz.
For functions of other models, please refer to the SKU chart or contact customer service. There are 6 hubs with different interface combinations available for purchase under this link. Please carefully confirm which product you need before purchasing to avoid purchasing errors.
UGREEN Revodok Pro 313
Triple Display 10 Gbps USB-C HUB
Incredible comes from unlimited connection

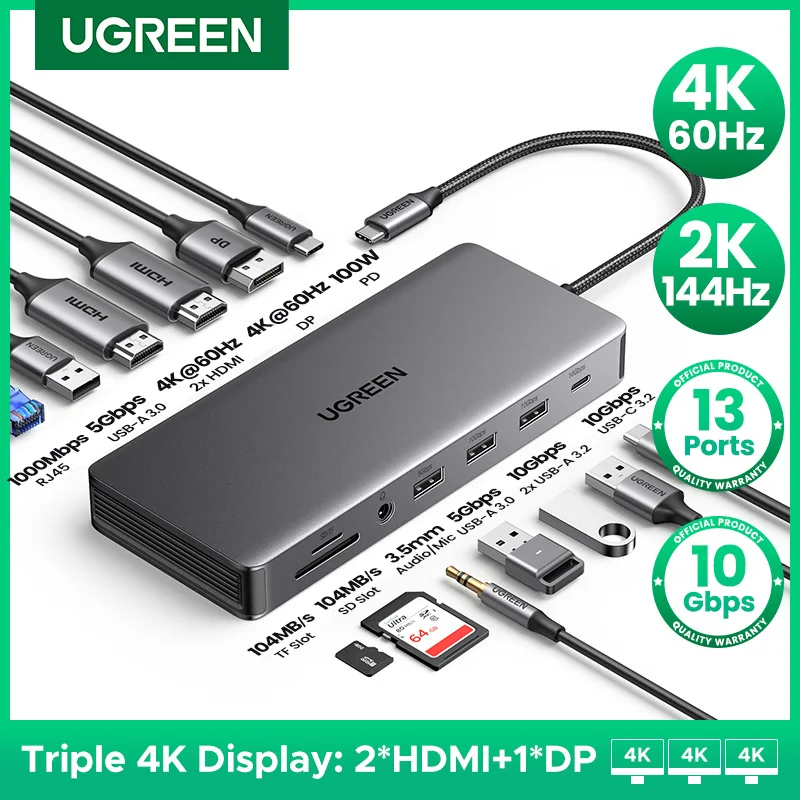

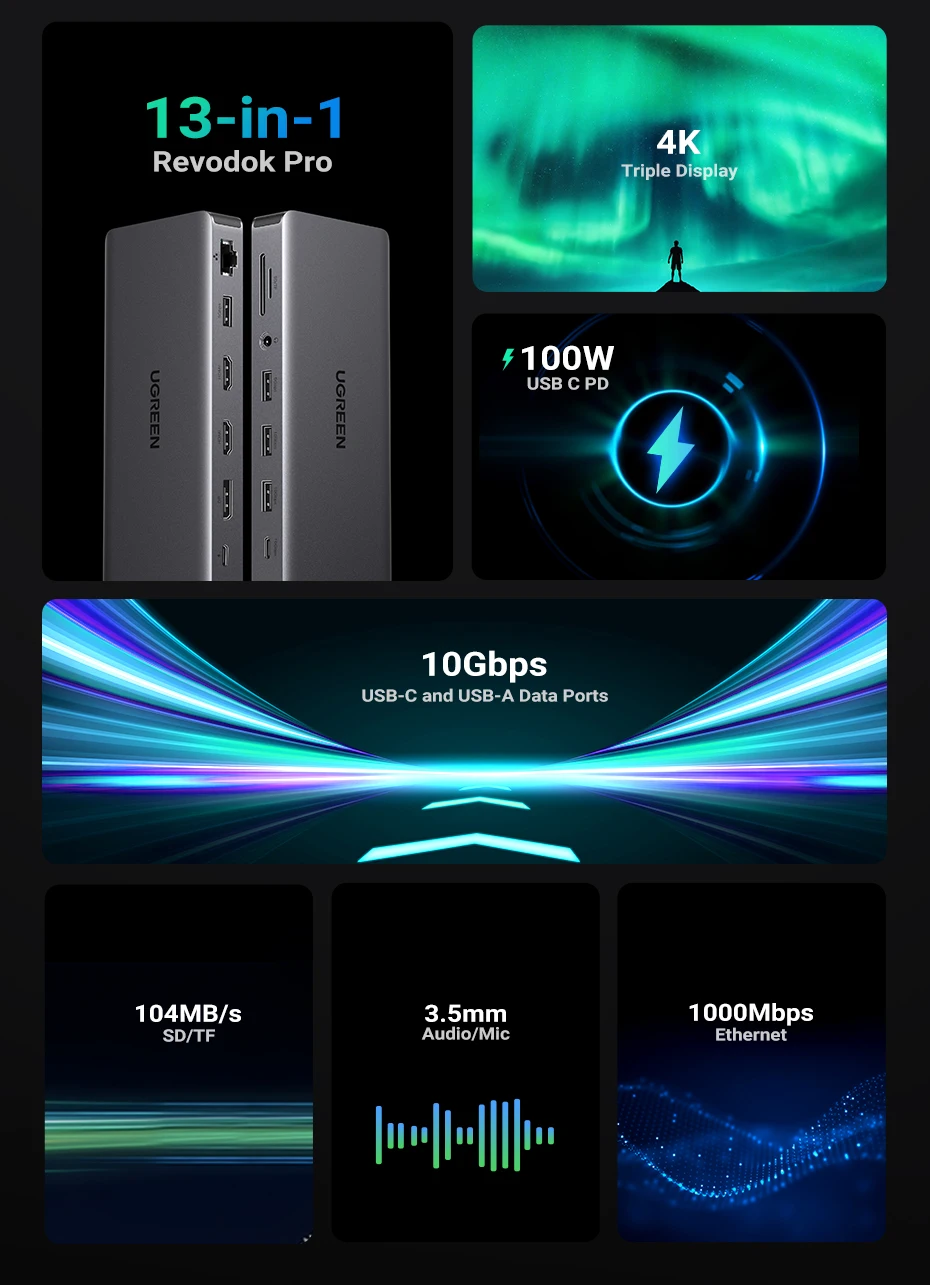

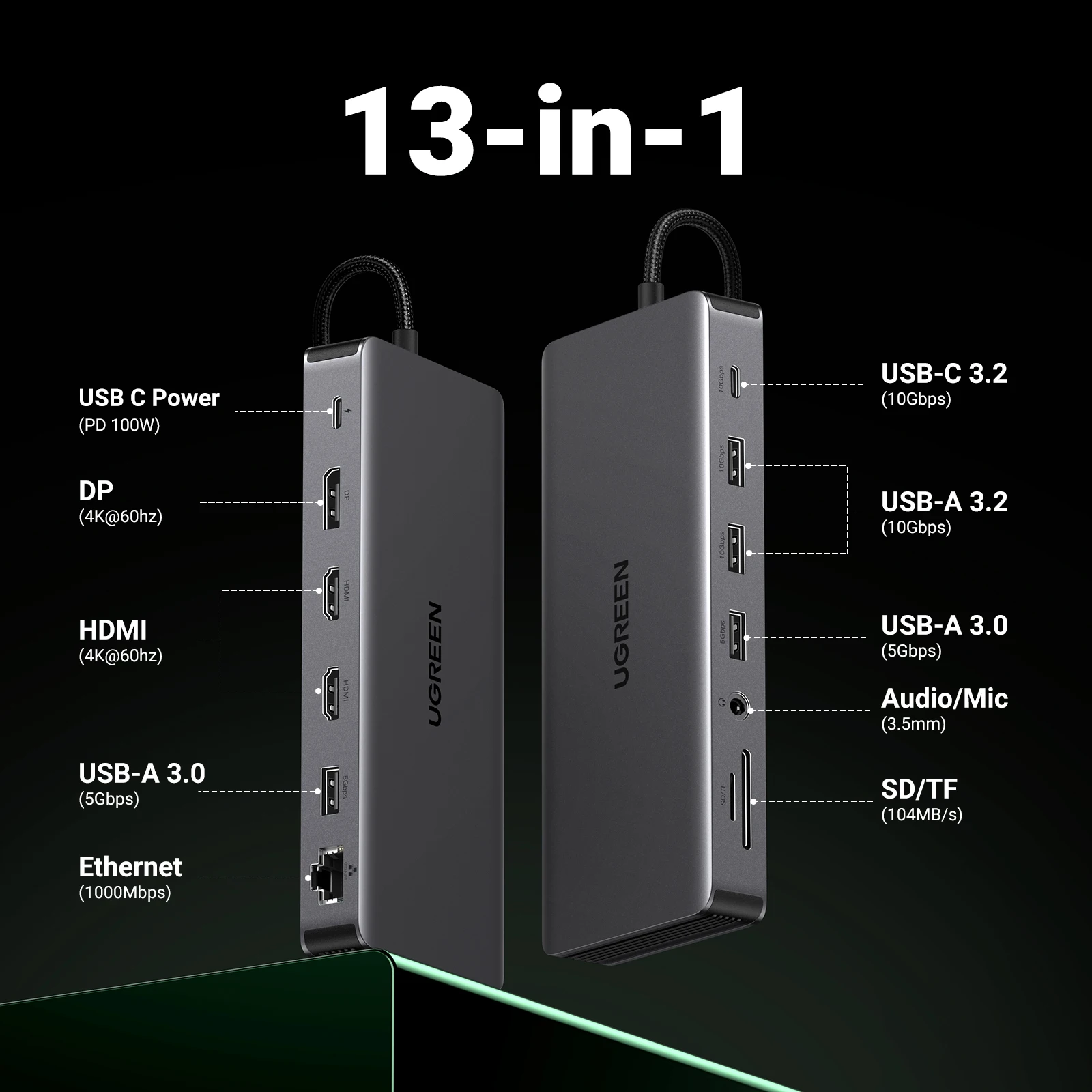

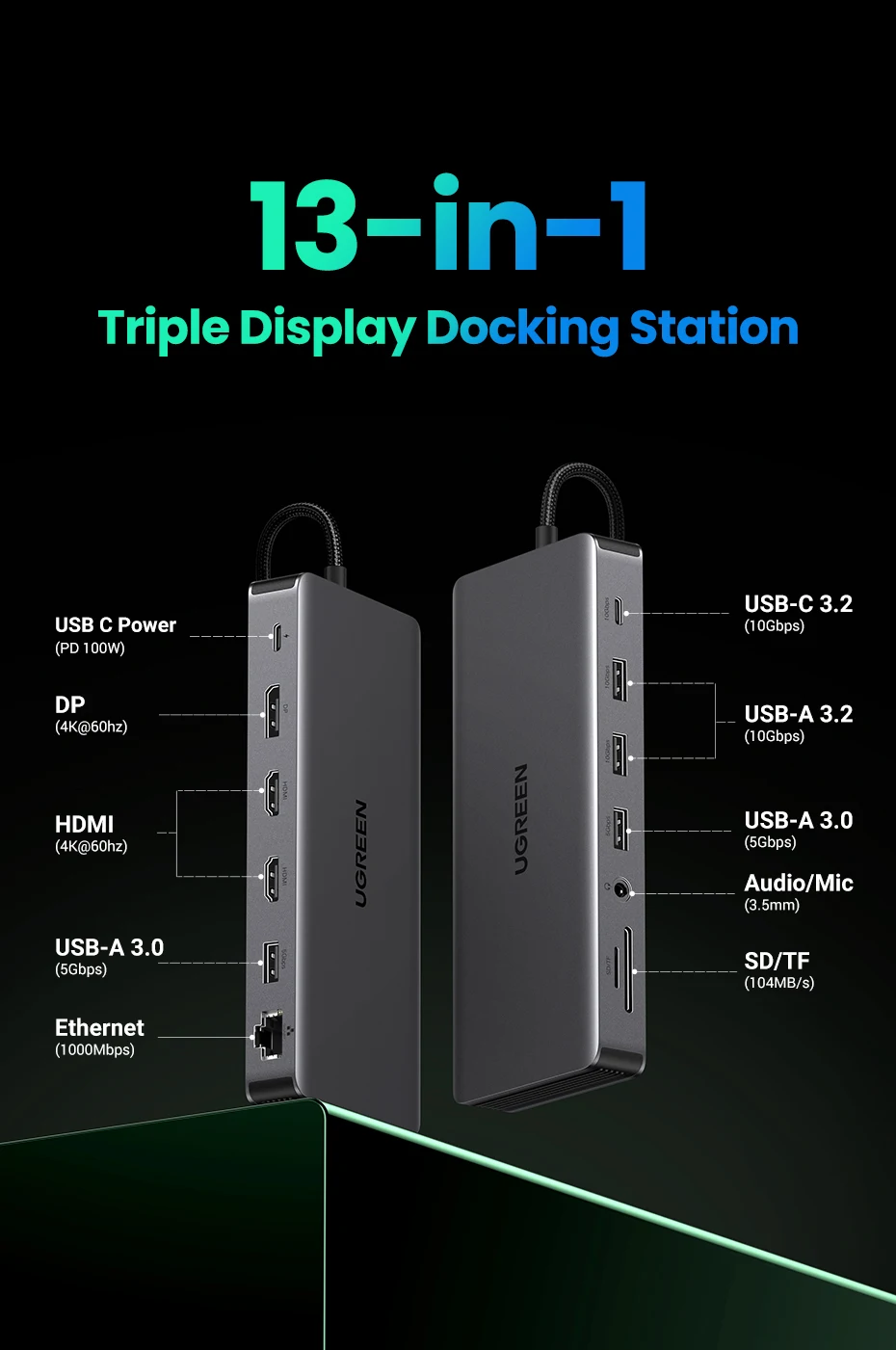

13-in-1 Triple Display Docking Station
Inspire more potential of your laptop’s USB-C port with wo HDMI ports, a DisplayPort, a 10 Gbps USB-C 3.2 Gen 2 port, two 10 Gbps USB-A 3.2 Gen 2 ports, two USB A 3.0, 100W Power Delivery, RJ45, 3.5MM and SD/Micro SD card reader.
Triple 4K Display Boosts Your Productivity
Connect and stream on three monitors in 4K via two HDMI ports and a DisplayPort, and handle multitasking anywhere.
(Note: Due to macOS limitations, all extended monitors will display the same content when connecting a MacBook.)

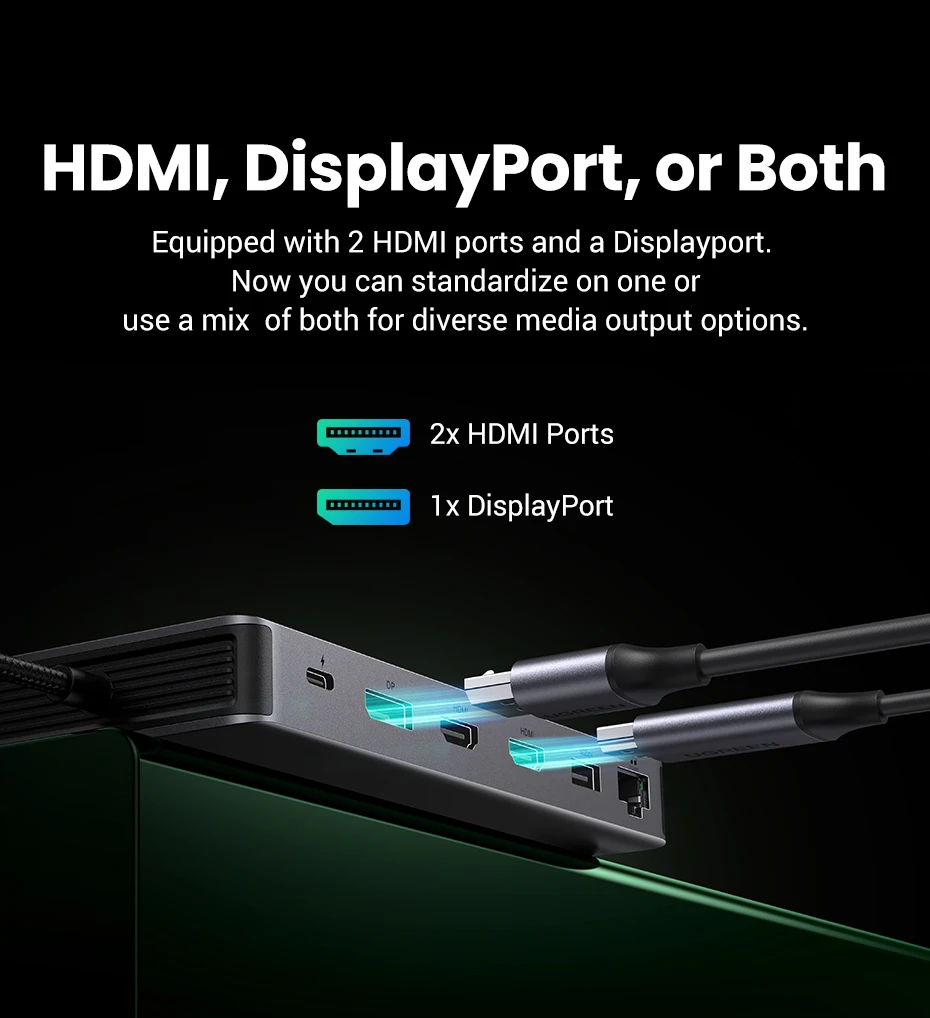

HDMI, DisplayPort, or Both
Equipped with 2 HDMI ports and a DisplayPort. Now you can standardize on one or use a mix of both for diverse media output options.

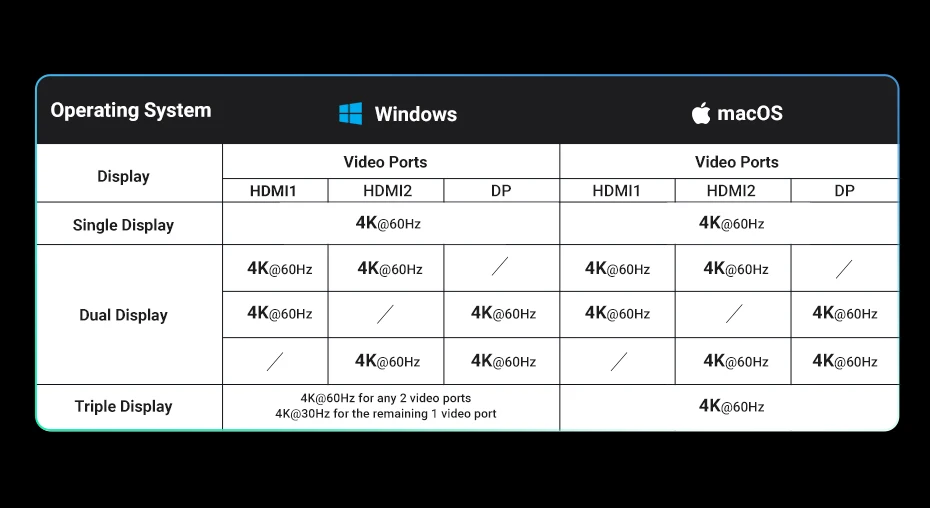

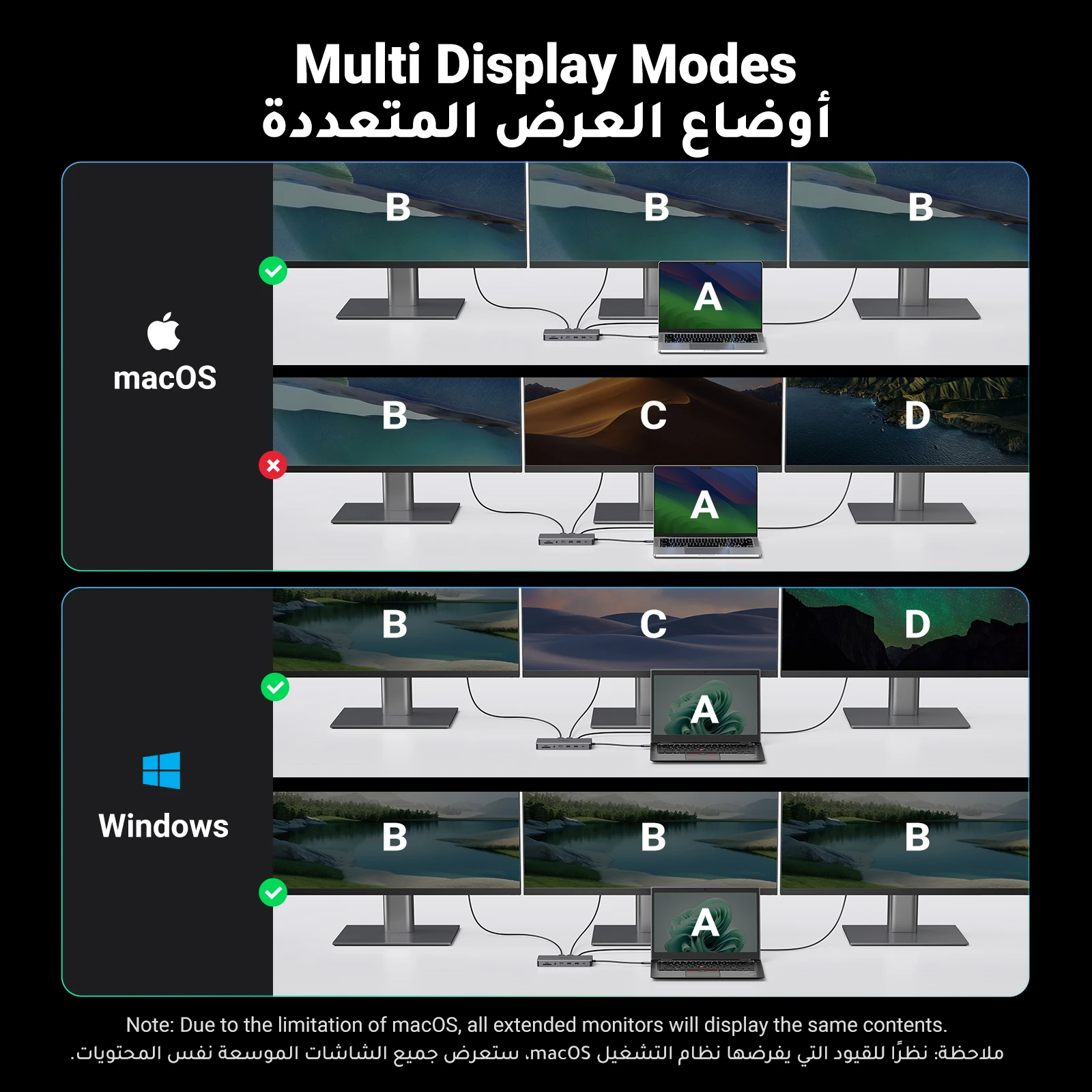

Multi-Display Modes For Windows
Mirror Mode & Extend Mode

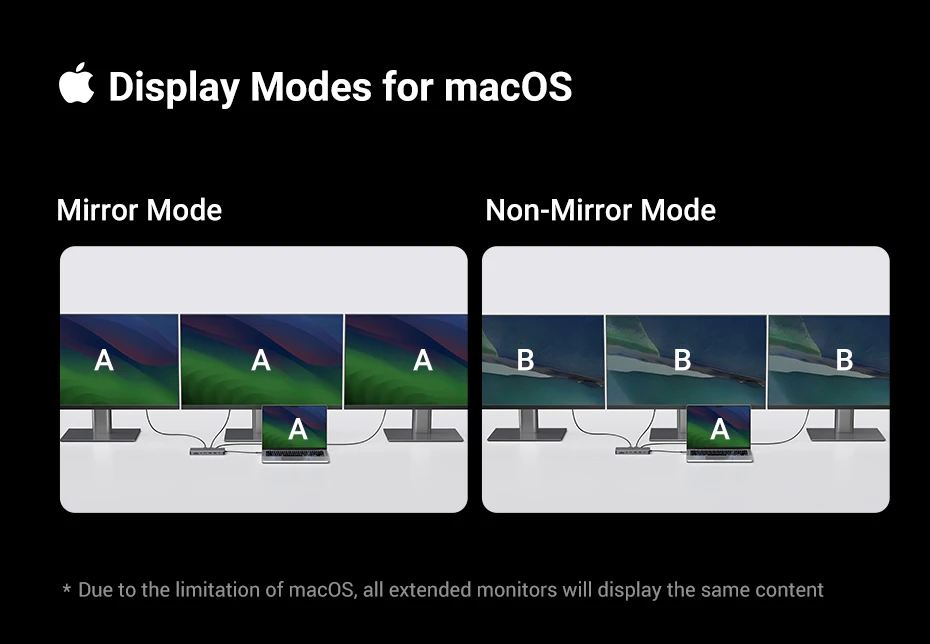

Display Modes for macOS
Mirror Mode & Non-Mirror Mode
Single Video Output Port HUB — Display mode with one external monitor
Windows supports mirror and extend mode, macOS only supports mirror mode.
Video Editor
Programmer
Office Staff

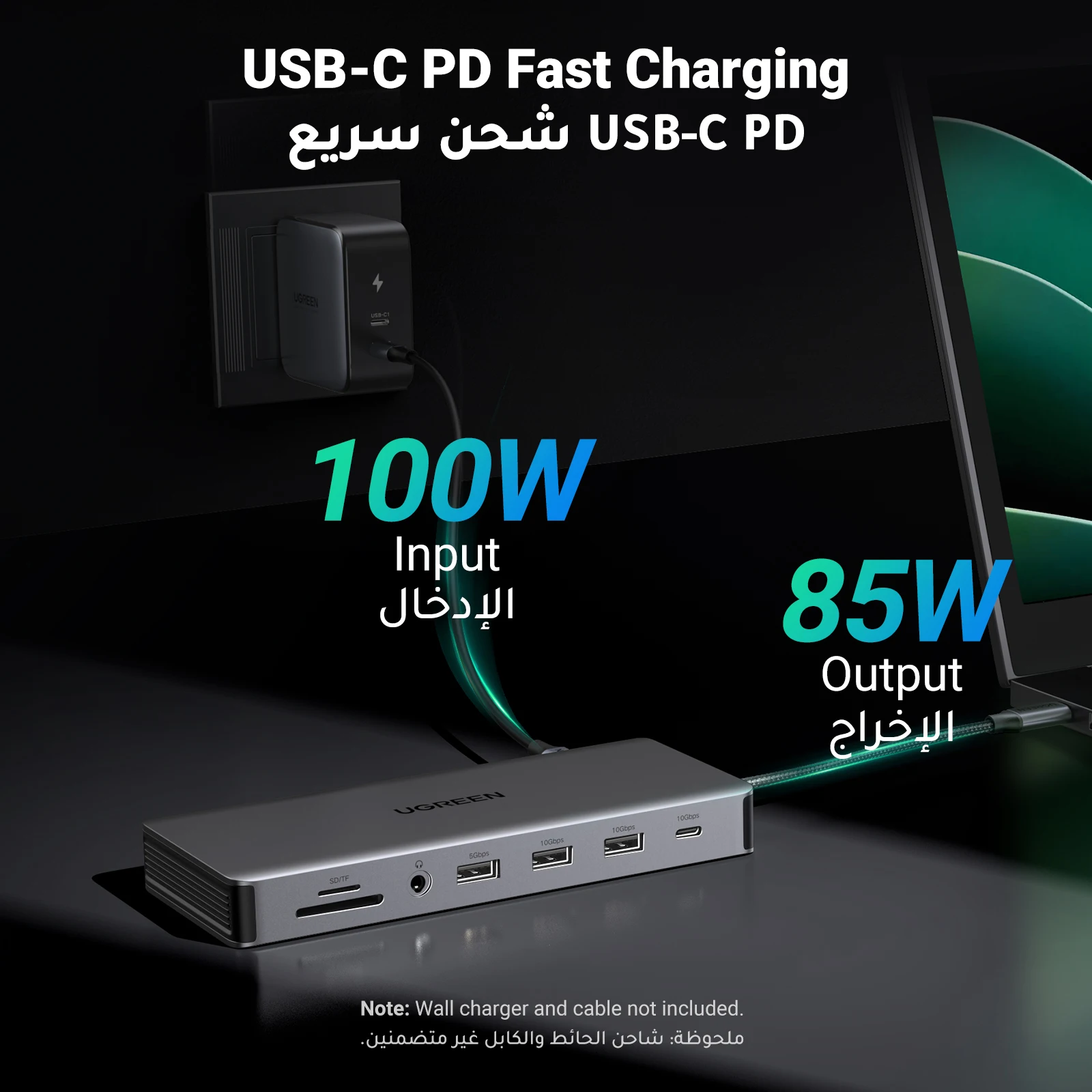

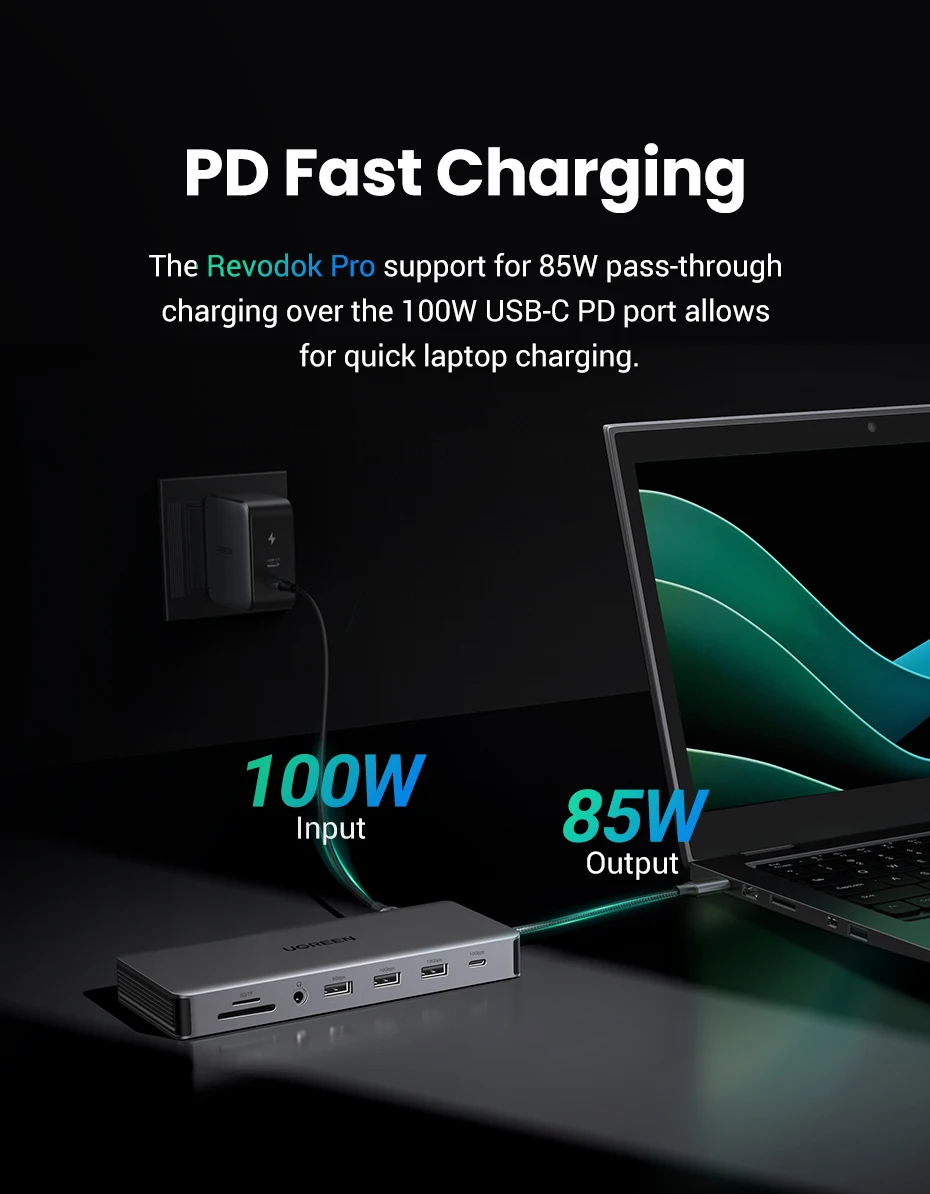

PD Fast Charging
The HUB support for 85W pass-through charging over the 100W USB-C PD port allows for quick laptop charging.

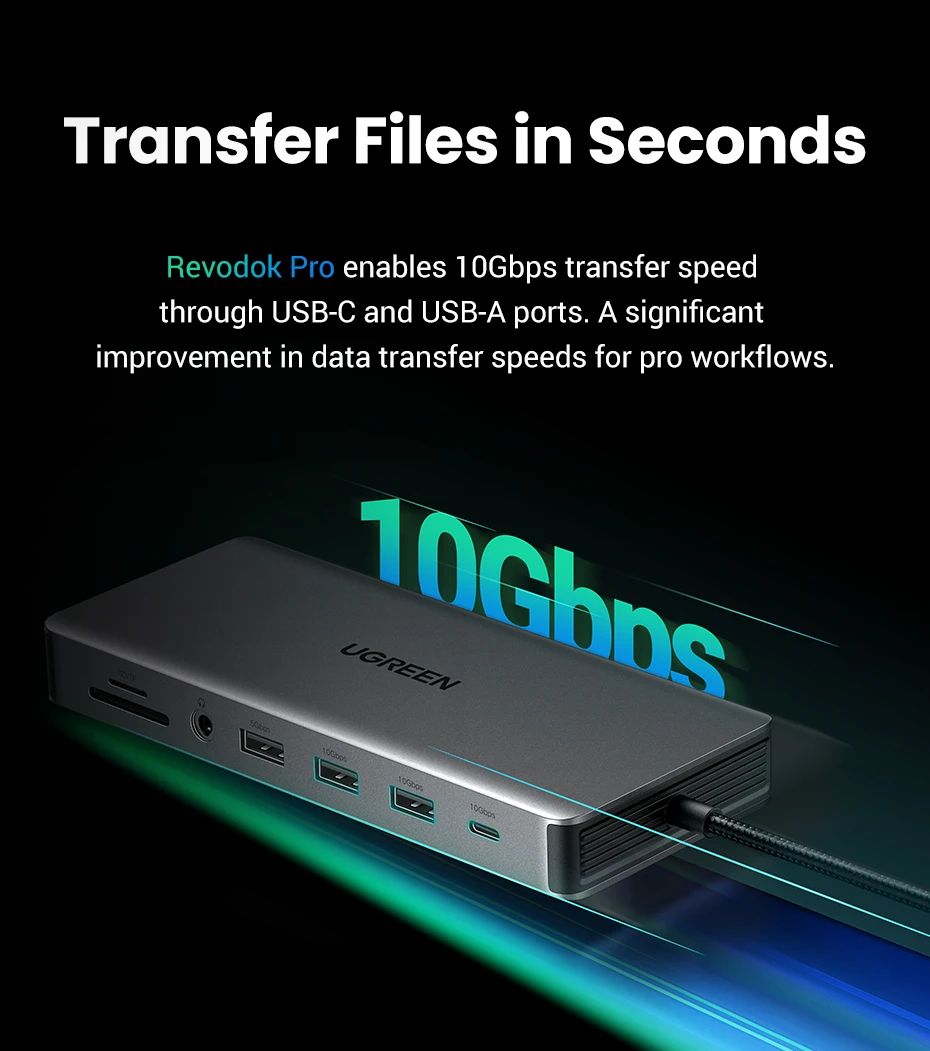

Transfer Files in Seconds
Enables 10 Gbps transfer speed through USB-C and USB-A ports. A significant improvement in data transfer speeds for pro workflows.

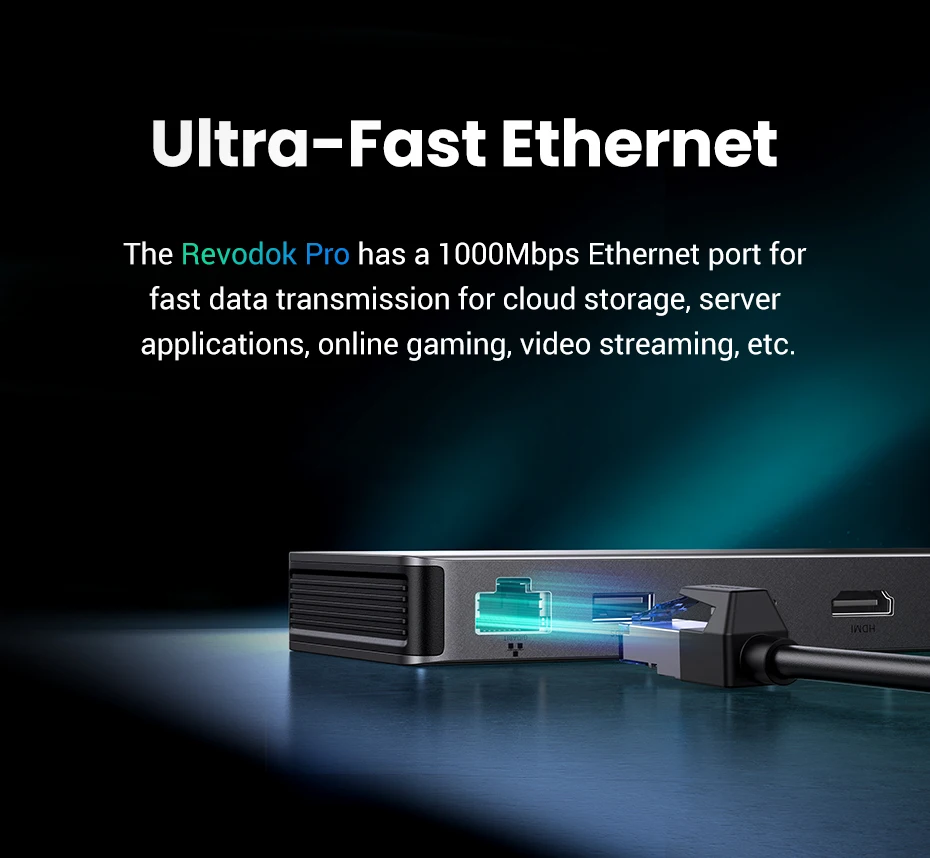

Ultra-Fast Ethernet
1000Mbps Ethernet port for fast data transmission for cloud storage, server applications, online gaming, video streaming, etc.

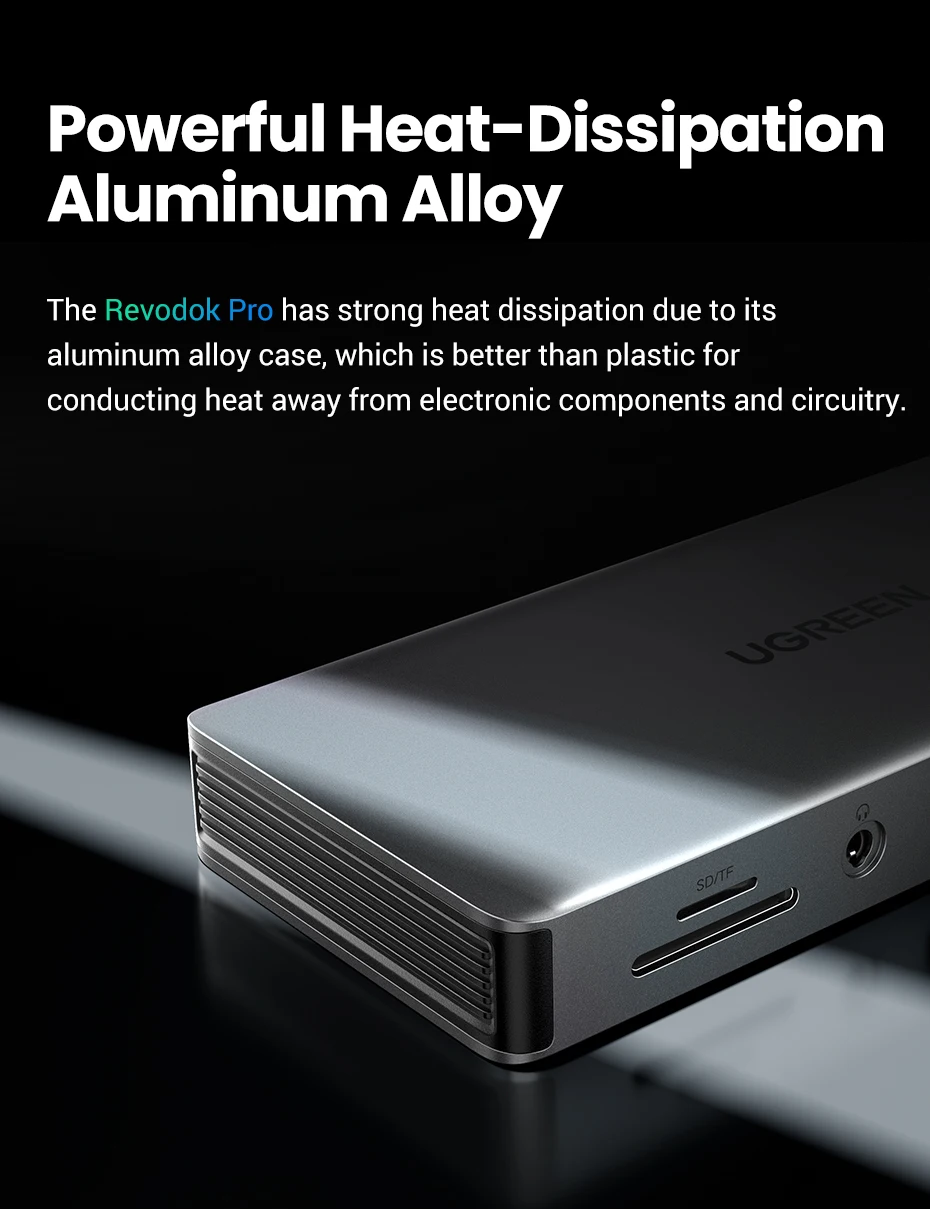

Powerful Heat-Dissipation Aluminum Alloy
UGREEN USB-C HUB has strong heat dissipation due to its aluminum alloy case, which is better than plastic for conducting heat away from electronic components and circuitry.
Internationally Certified Quality Exceeds Industry Standards
Tested to the strictest standards and fully certified for quality and safety you can trust.
Check your Laptop’s Compatibility
Confirm that your laptop supports all USB-C features

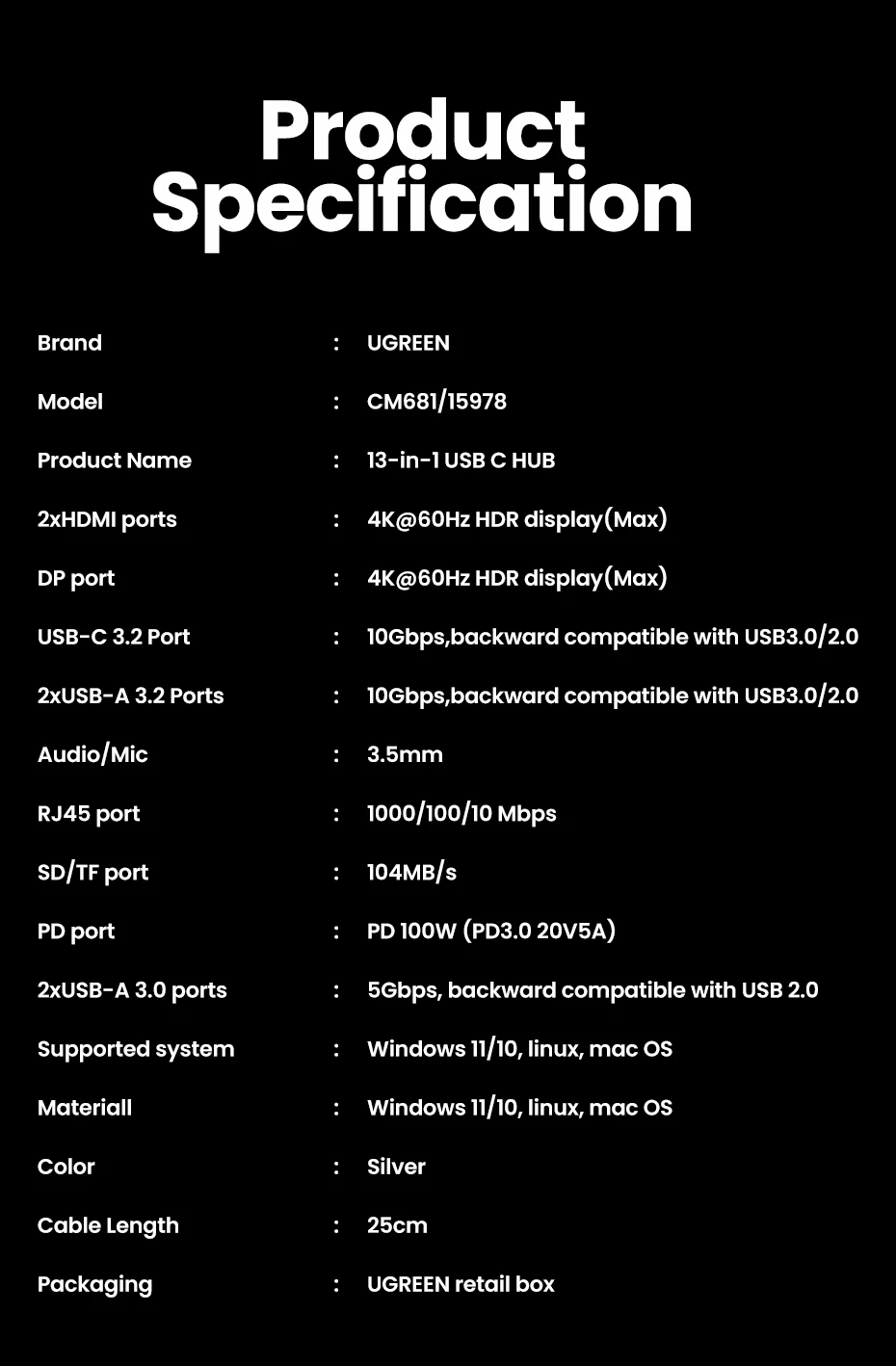

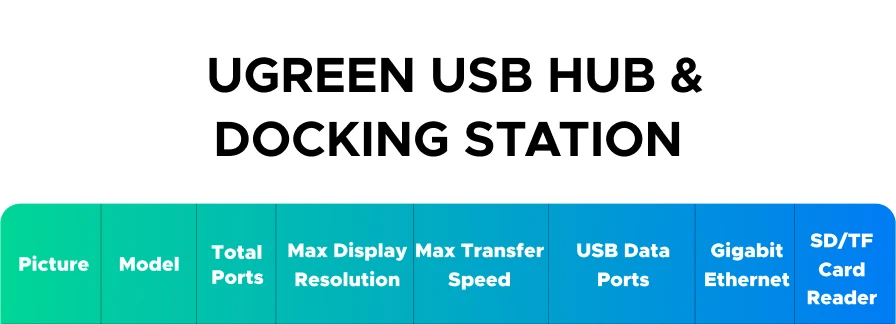

Product Specifications

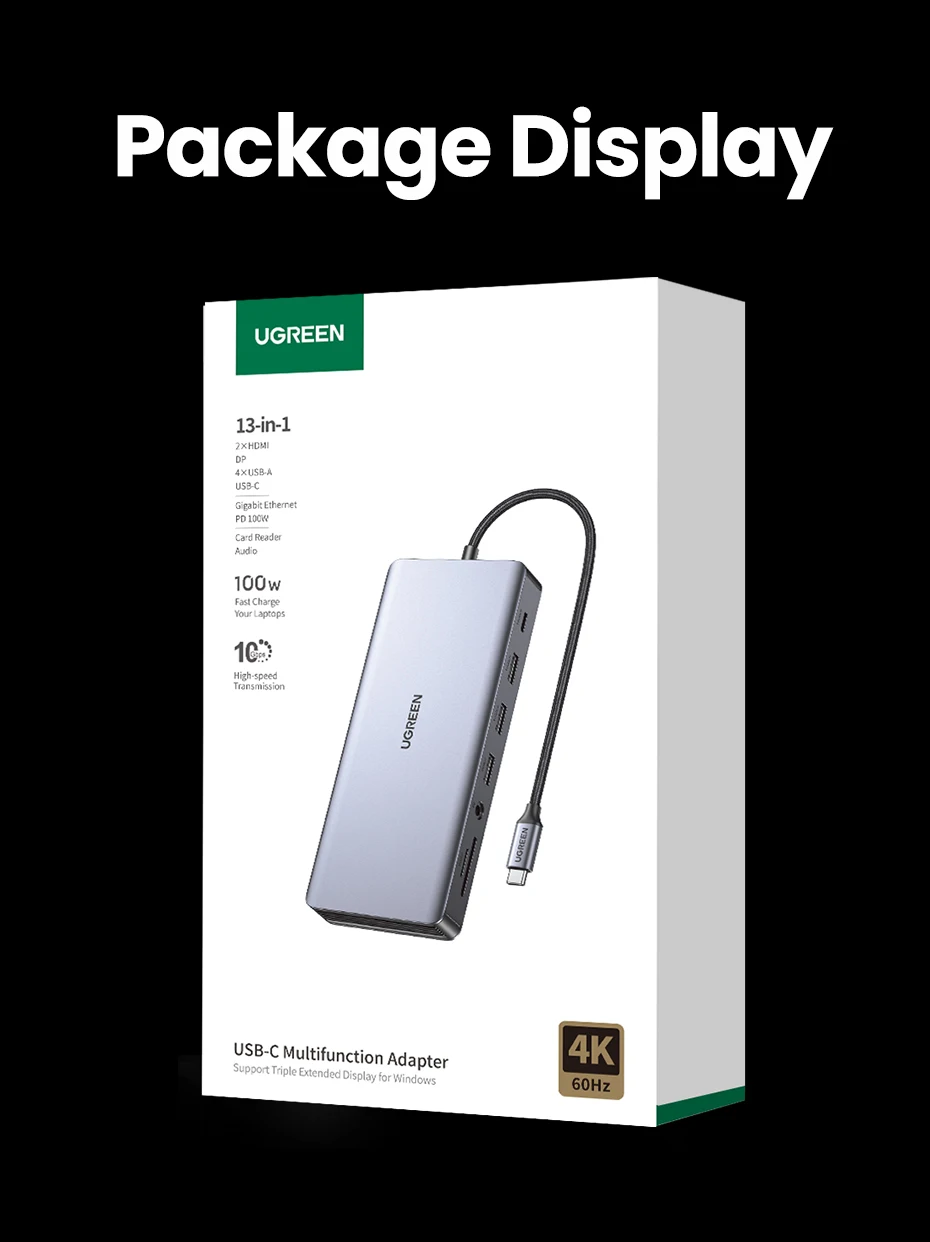

Package Display
Q&A
★How can I troubleshoot if my dual monitors cannot achieve 4K@60Hz simultaneously?
This might be due to the bandwidth limitation of the laptop. You can take the following steps:
1) Ensure that your laptop supports DP 1.4 first.
2) Lower your monitor’s resolution or refresh rate.
3) Replace another high-standard HDMI cable.
★When I connect to more than 2 monitors with Mac, why do both monitors show the same image?
When 2 or 3 monitors are connected to Mac, the docking station can only support extending one monitor, and the other monitor can only copy the monitor you extended, which means it only supports AAAA or ABBB. Do NOT support differential display (ABCD)
★Can the USB interface be connected to a wireless mouse? What is the operating distance?
The Logitech G602 wireless mouse needs to be used at a distance of about 0.8 meters when connected alone; when connected to a USB3.0 device at the same time, the mouse needs to be used at a distance of about 0.5 meters.
★Is it compatible with the LG38WN95C monitor?
No, it is not compatible with the LG38WN95C monitor.
★Why are SD and TF cards not recognized on mobile phones/tablets?
When using the hub with a phone or tablet, please insert the SD/TF card first, and then connect the hub to the device.
| Compatible Systems | Windows,MacOS,Linux,Chrome OS,iOS,iPad OS,Android |
|---|---|
| Compatible PC Devices | Laptop |
| High-concerned chemical | None |
| Package | Yes |
| Certification | CE,FCC |
| Funtion | Card Reader,RJ45,DP,3.5mm,USB-A,USB-C,Charging,HDMI-Compatible |
| Standard | USB 3.0 |
| Ports | 13 |
| Interface Type | USB 3.2 GEN 2 |
| Brand Name | UGREEN |
| Origin | Mainland China |
| Plug Type | None |
| Product Name | 13-in-1 USB C Docking Station |
| Feature 1 | 13-in-1 USB C HUB / 4K60Hz USB C HUB / 10Gbps USB C HUB |
| Feature 2 | USB-C HUB / USB HUB / USB-C Splitter / USB-C Expander |
| Triple-Monitor Display | Support up to 4K triple-screen display |
| 2xHDMI Ports | HDMI2.0, support HDCP1.4/2.2, video transmission bandwidth 18Gbps |
| DP Port | DP1.4, support HDCP1.4/2.2, HDR, video transmission bandwidth 16.2Gbps |
| 2xHDMI Ports Resolution | Support 3840*2160@60Hz, backward compatible with 4K@30Hz, 2K@144/120/60Hz, 1080P@240/144/120/60Hz, etc. |
| DP Port Resolution | Support 3840*2160@60Hz, backward compatible with 4K@30Hz, 2K@144/120/60Hz, 1080P@240/144/120/60Hz, etc. |
| USB-C 3.2 Port | USB3.2 Gen2, 10Gbps, backward compatible with USB3.0/USB2.0/USB1.1, supports BC1.2 |
| 2xUSB-A 3.2 Ports | USB3.2 Gen2, 10Gbps, backward compatible with USB3.0/USB2.0/USB1.1, supports BC1.2 |
| 2xUSB-A 3.0 Ports | 5Gbps, backward compatible with USB2.0/USB1.1, does not support BC1.2 |
| Ethernet: | 1000Mbps, Bbackward compatible with 100/10Mbps |
| PD 100W Port | Supports PD3.0, backward compatible with PD2.0, supports up to 100W (20V/5A) charging, connects to the power adapter to power the main device, does not support data transmission |
| SD&TF Slots: | SD3.0, 104MB/s, support 2 cards read and write simultaneously |
| Color | 10-in-1 2HDMI 10G, 10-in-1 2HDMI 5G, 11-in-1 DP HDMI, 12-in-1 2HDMI 1DP, 13-in-1 10G 4K60Hz, 8-in-1 2HDMI 1DP |
