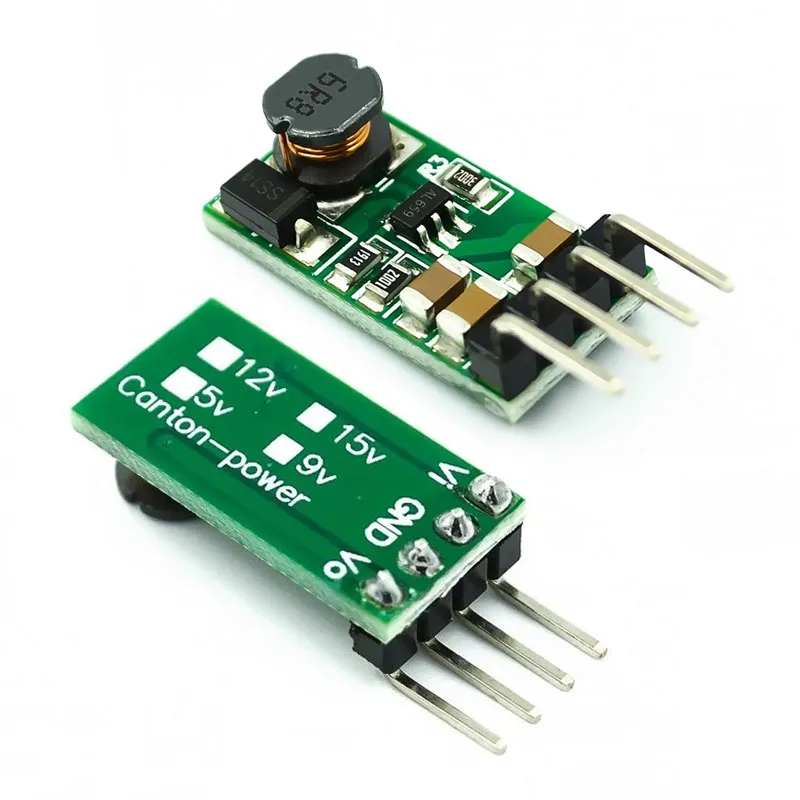

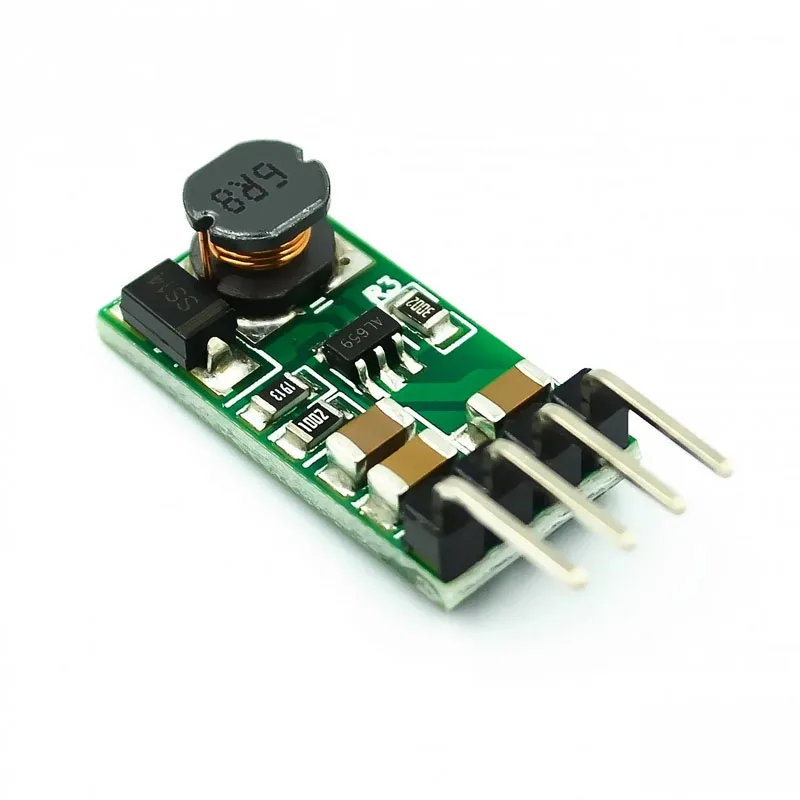

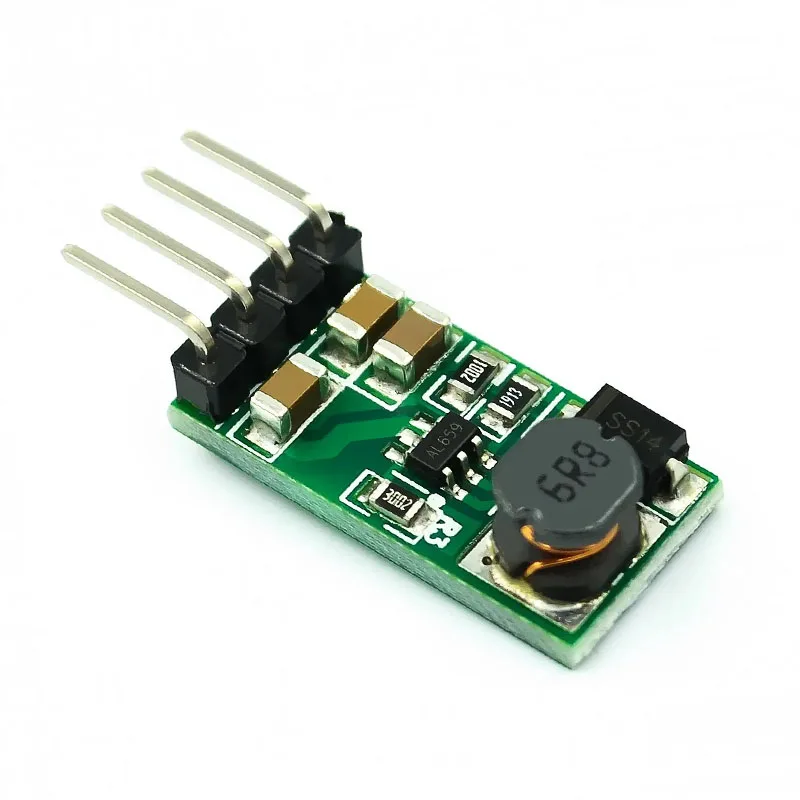

Ultra-Compact DC-DC Boost Converter Module – Step-Up 3.3V/3.7V/4.5V/5V to 12V for Smart Home & DIY Electronics
القسم: غير مصنف
حالة التوفر: متوفر في المخزون
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Brand Name: NONE
- Origin: Mainland China
- High-concerned chemical: None
- Condition: New
- Type: Module
- Supply Voltage: –
- Dissipation Power: –
- is_customized: Yes
- Quantity: 1
- Operating Temperature: –
Ultra-Compact DC-DC Boost Converter Module – Step-Up 3.3V/3.7V/4.5V/5V to 12V for Smart Home & DIY Electronics
Function parameter:
3-6V input voltage; Output voltage 12V + -0.6V
Input Current: 1.2A
Input current time: 1A
Conversion efficiency: 80-90%
Starting voltage 2.8V, the output current of 50MA
Input 3V 1A; output 12V 220MA
Input 3.3V 1A; output 12V 250MA
Input 3.7V 1A; output 12V 280MA
Input 4.5V 1A; output 12V 340MA
Input 5V 1A; output 12V 370MA
Input 6V 1A; output 12V 450MA
Boost DC-DC converter module, the operating frequency of 1.0MHz, the typical conversion efficiency of 85%

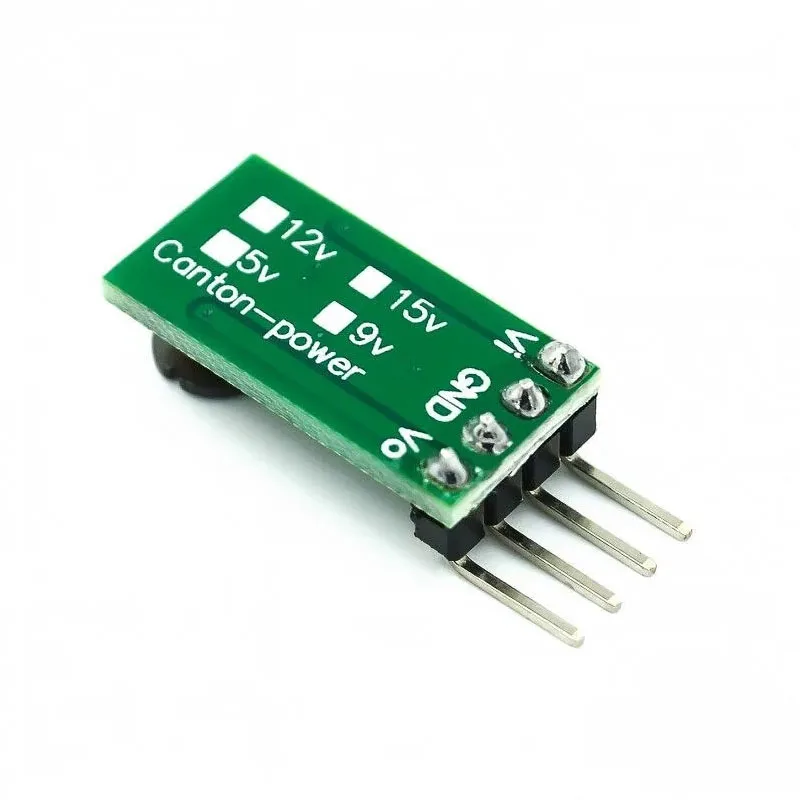

Pin spacing 2.54MM

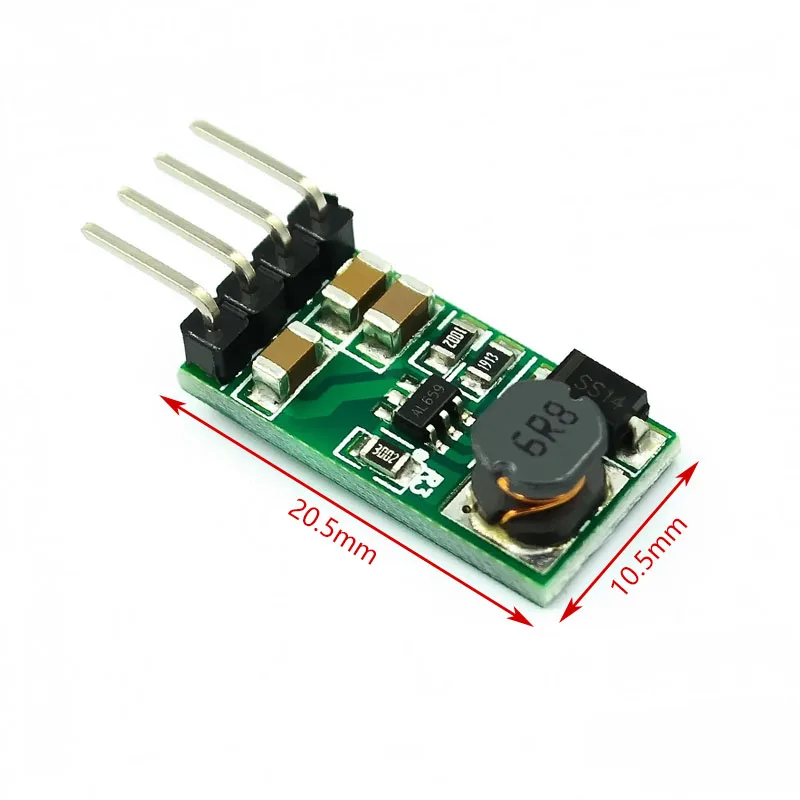

Size: 20.5mm x 10.5mm x 5.6mm (very small)
Weight: about 1.4 g (very light)
This is the voltage step-up converter module, be sure to follow when using the following conditions:
An input voltage larger than the nominal voltage, otherwise it will burn module
2 must be greater than the input power the output power, output voltage or less than the nominal voltage.
3 the output load is not greater than the nominal load, otherwise the output voltage is less than the nominal voltage.
About us:
We deal in all kinds of lC brands world-wide.
Our products are widely applied in civilian, industrial and military fieldslE work, communication, home appliances, RF, video display, memoriesRAM development, medical instruments, power supply system, programcontrolleddevices,digital devices,industrial equipments, aviation andnavigation equipments, etc.
We also supply Amplifier board,LCD Display,Soldering iron ,Temperature controller ,mppt solar controller,charger,Active balancer,BMS,battery tester,indicator ,esp8266 and so on
We have extensive industry knowledge and sufficient inventory. This enables us to provide a complete and versatile technical supports to our customers. Our products have been exported to many countries and regions around the world, and we have a good reputation among our customers. We welcome customers, chambers of commerce, and friends from all over the world to contact us and seek mutually beneficial cooperation.
Company warehouse:
