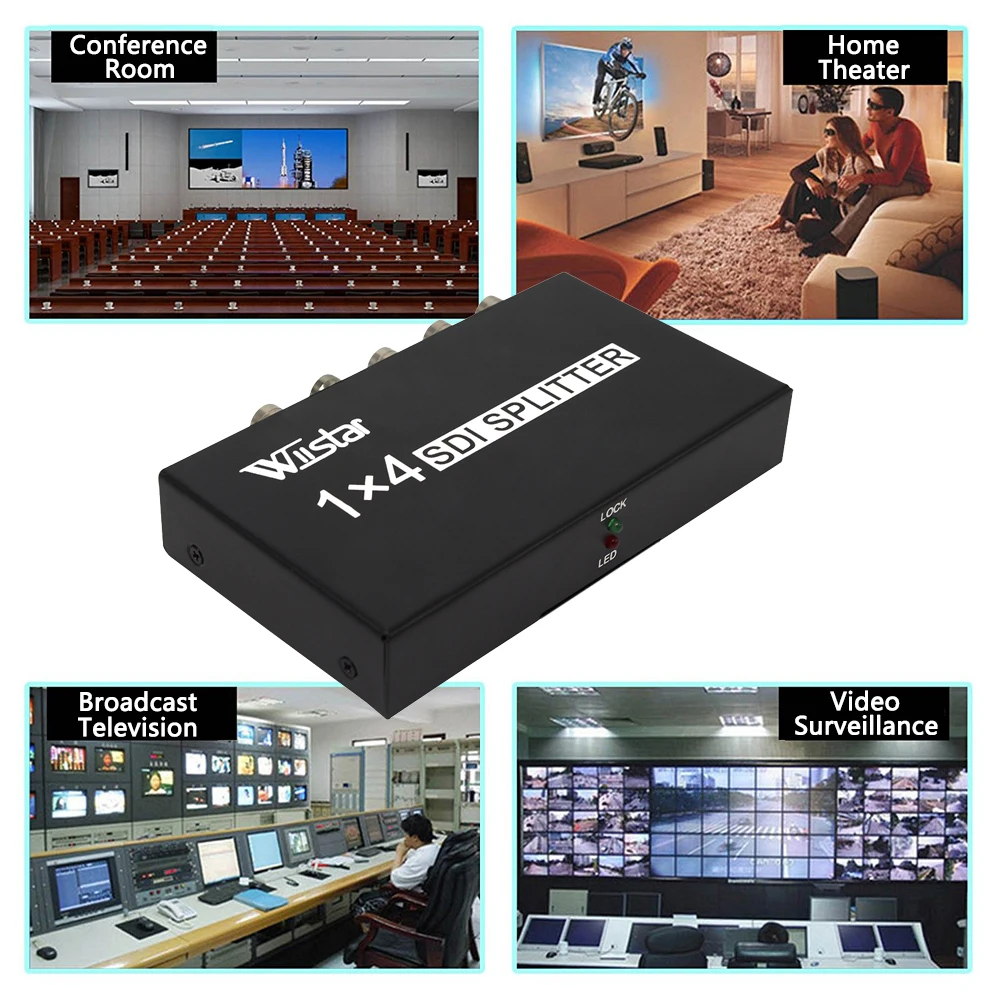

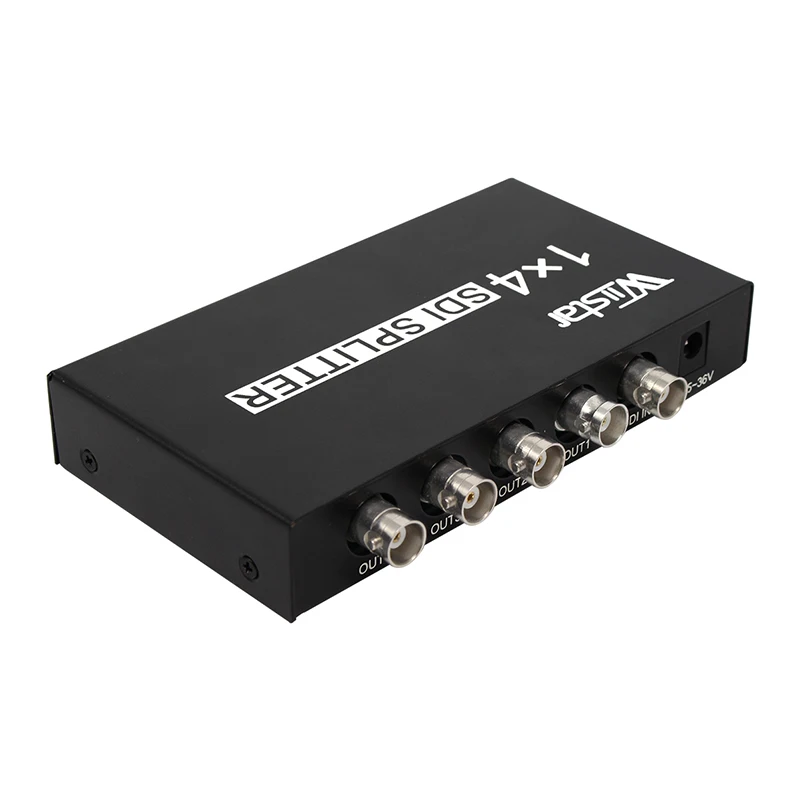

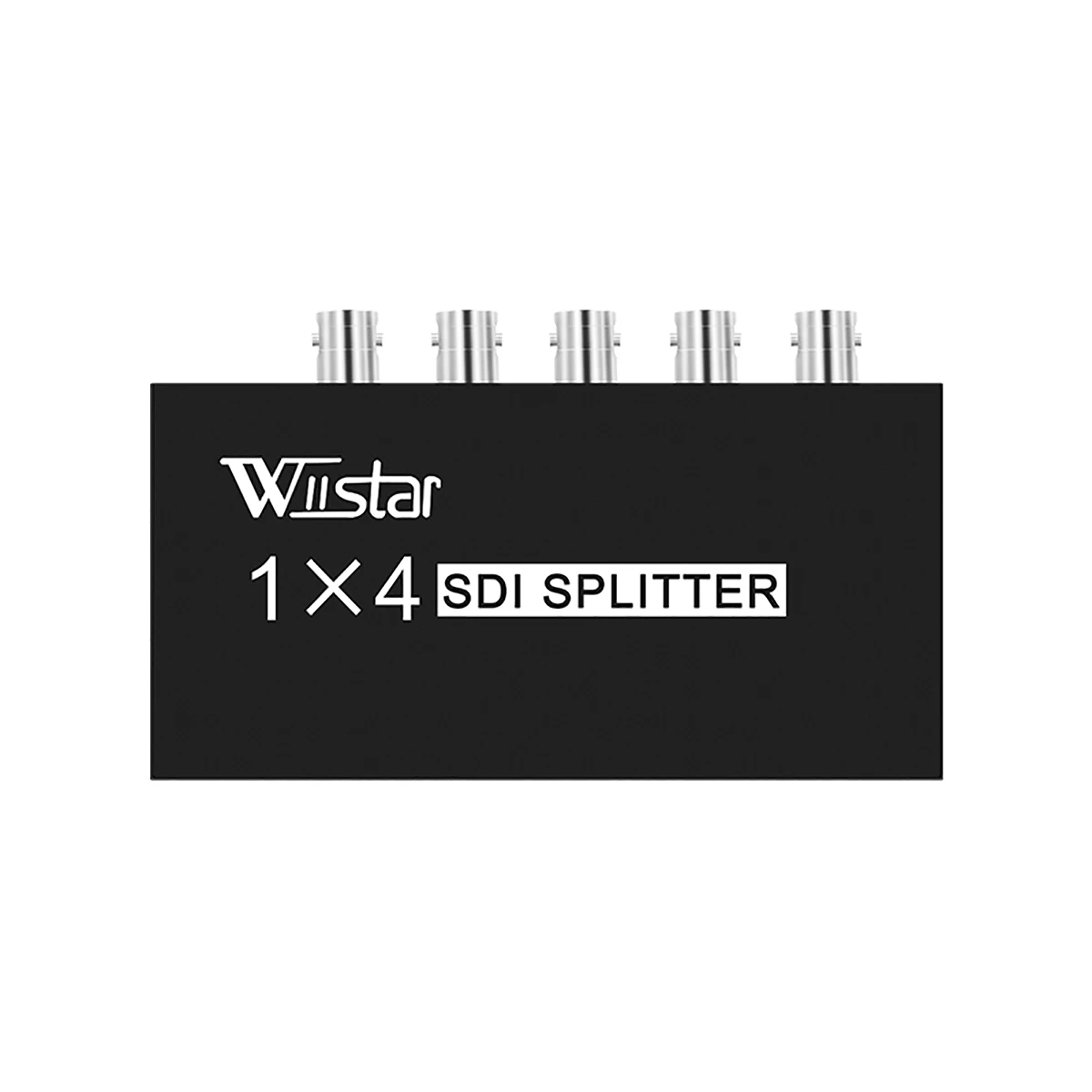

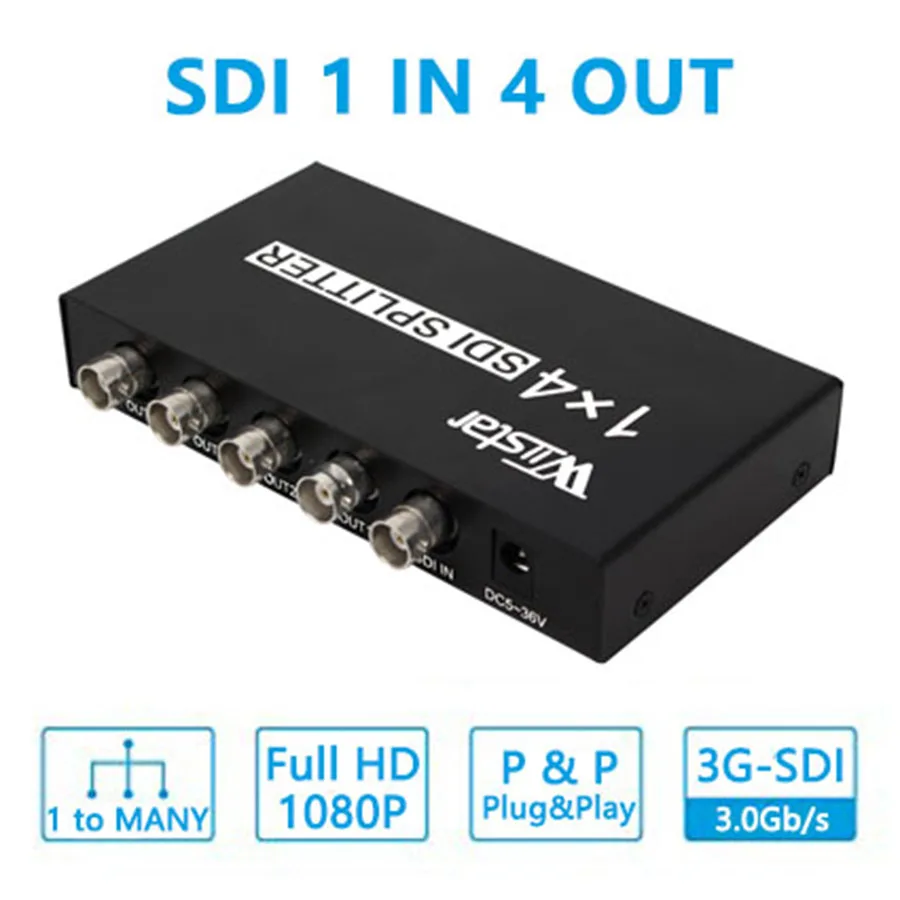

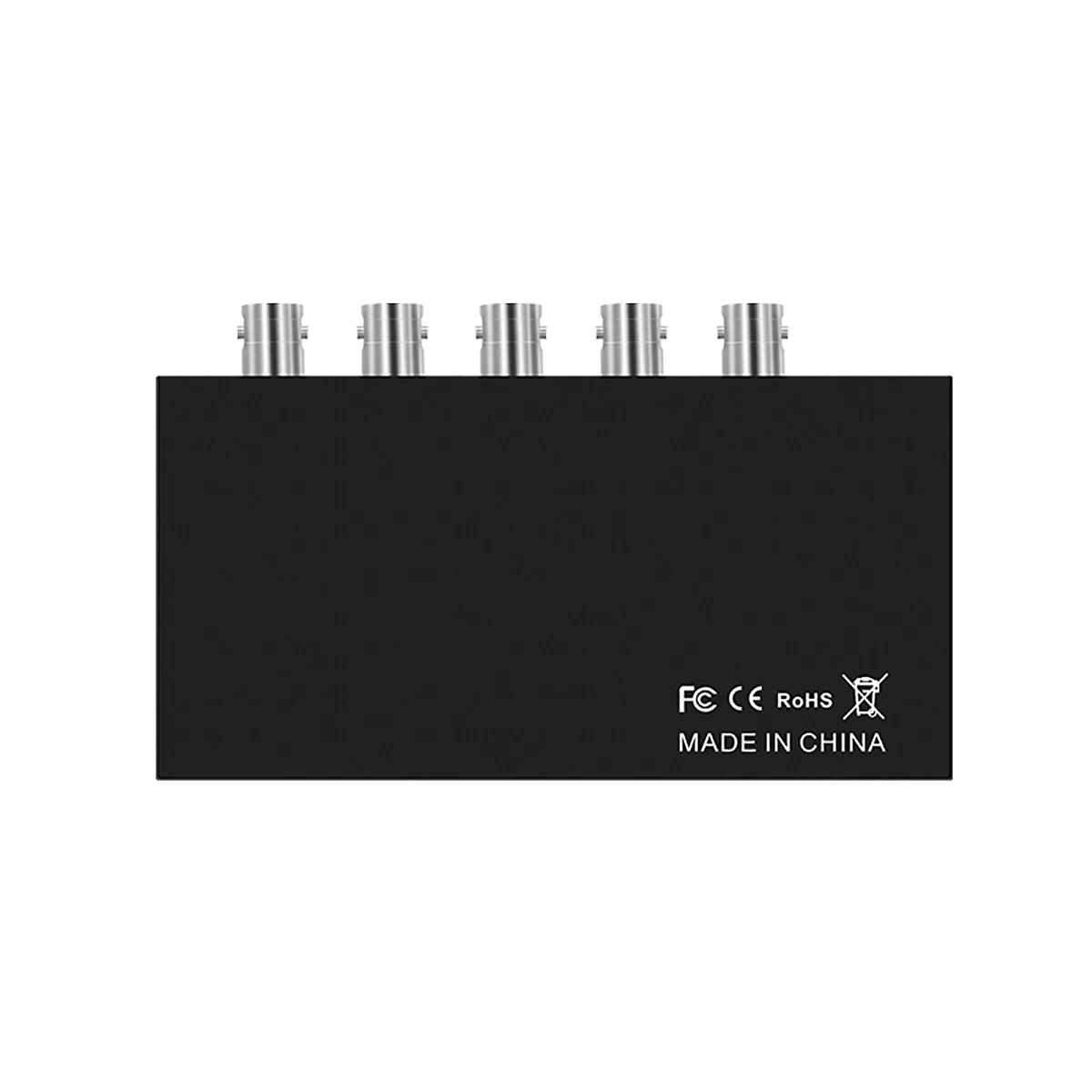

Wiistar SDI Splitter 1 in 4 out SDI Extender Converter 1×4 Support 3G/SD/HD-SDI 1080P for Video Monitor
القسم: غير مصنف
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- High-concerned chemical: None
- Plug Type: UK,EU,AU,US
- Size: <0.5M
- Model Number: WS-F214
- Certification: CE
- Origin: Mainland China
- Item Type: Video Converter
- Application: Projector,Telephone,Microphone,DVD Player
- Gender: Female-Female
- Connector B: BNC
- Connector A: BNC
- SDI format: 3G-SDI,HD-SDI,SD-SDI
- Product Name: SDI Splitter 1X4
Wiistar SDI Splitter 1 in 4 out SDI Extender Converter 1×4 Support 3G/SD/HD-SDI 1080P for Video Monitor
Specifications

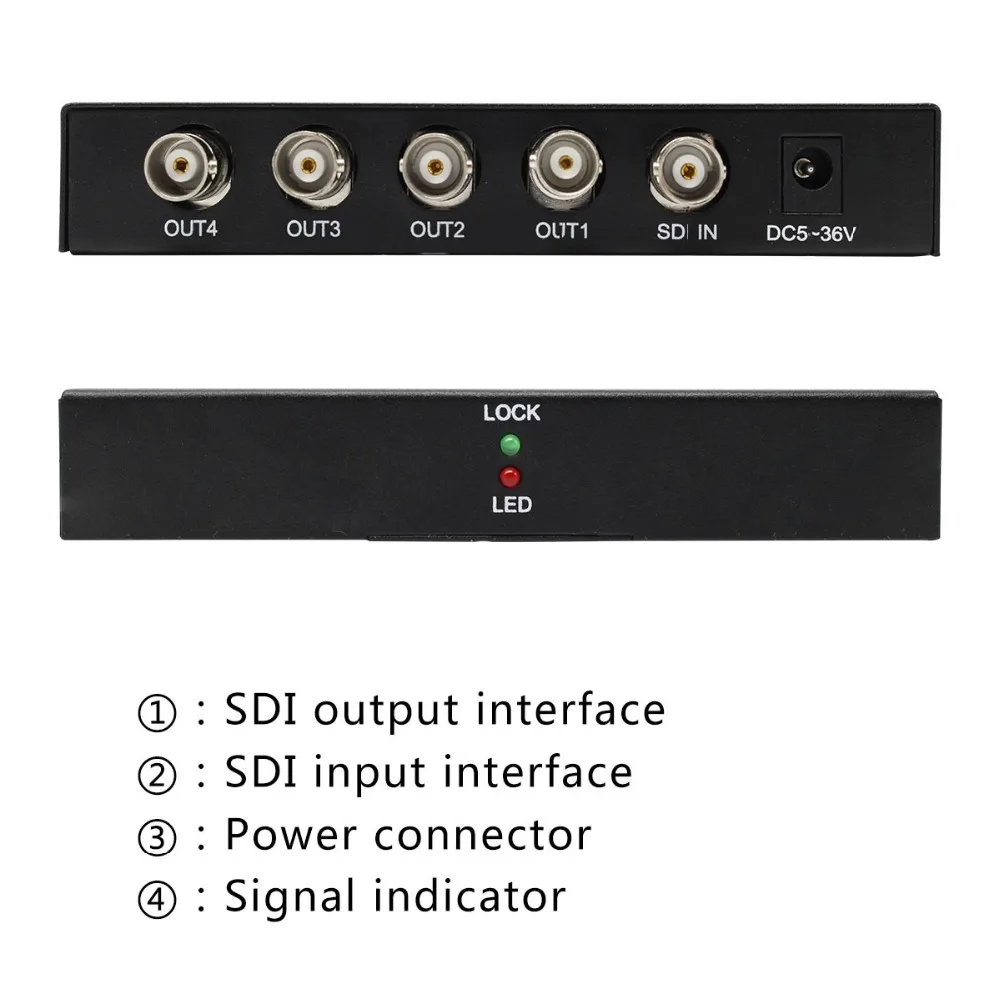

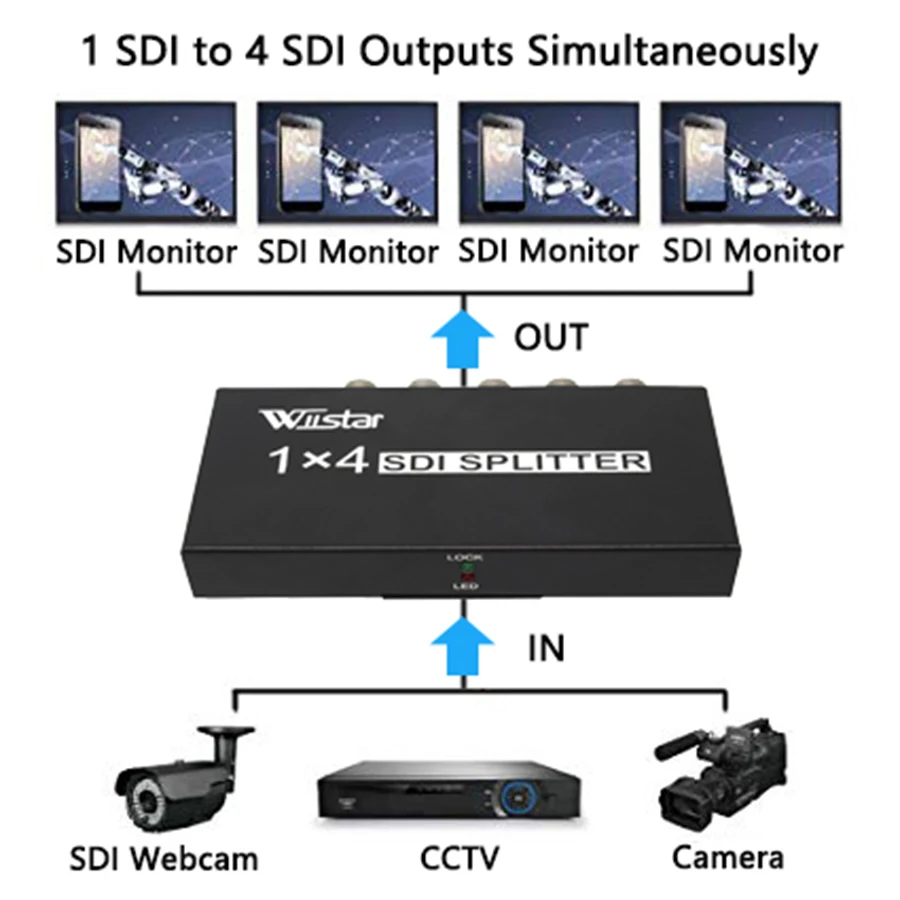

SDI input: BNC x 1 (HD-SDI/SD-SDI/3G-SDI)
SDI output: BNC x 4 (HD-SDI/SD-SDI/3G-SDI)
SDI standard: Compatible with 3G-SDI,SMPTE 424M,HD-SDI SMPTE292M and SD-SDI SMPTE259-C
SDI signal format: SD-SDI/HD-SDI/3G-SDI
SDI speed rate: 143~2970MB/s
SDI input resolution: 480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ;
SDI output resolution: 480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ;
SDI signal output amplitude: 800mVp-p
Power consumption: <250mA (DC 5V)

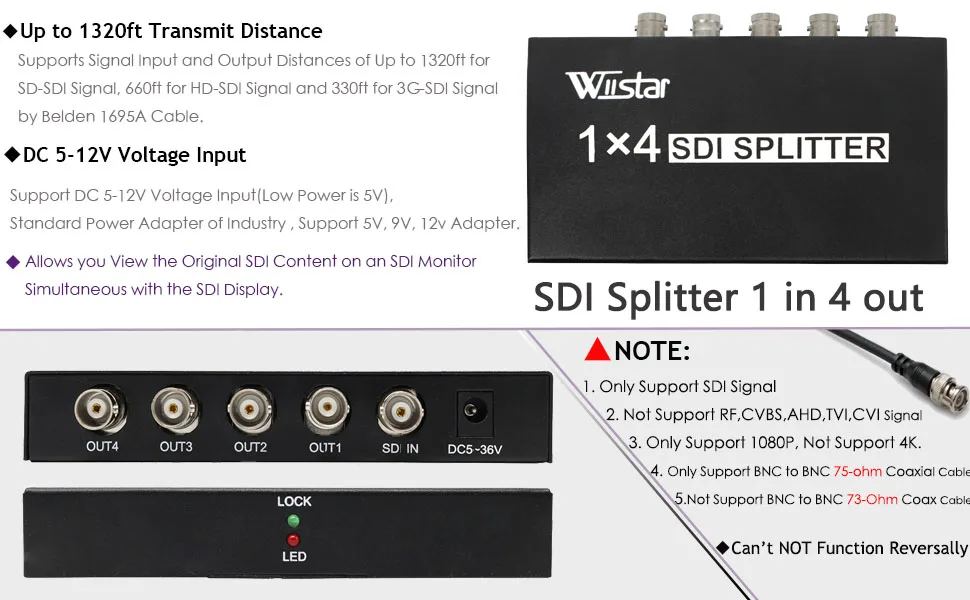

Power: DC 5V /1A (Support 5V Voltage Input)

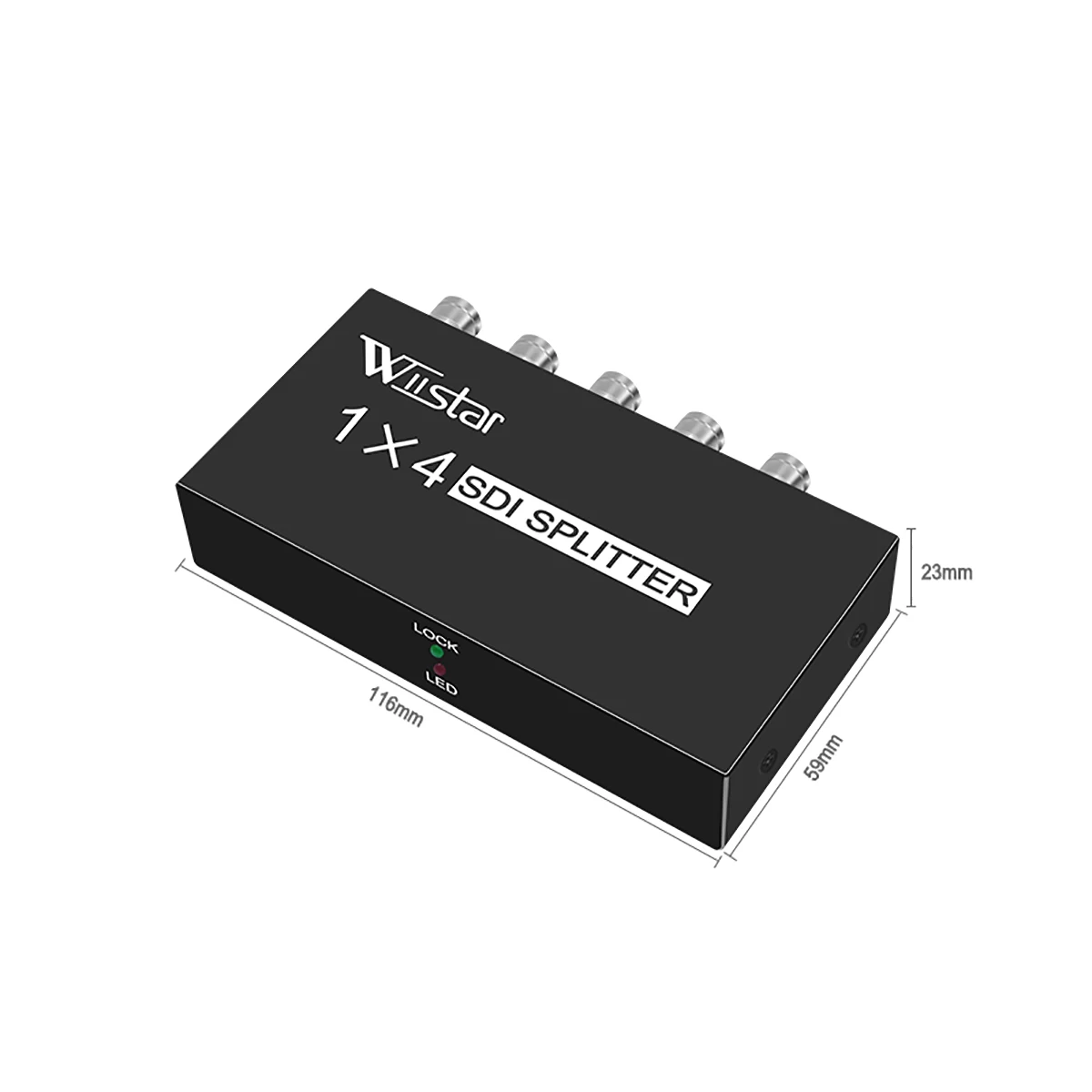

Dimension(L*W*H): 130*77*24mm
Working temperature: 0~60
Weight: 201g
Package Contents:
1pcs SDI 1×4 Splitter
1pcs Power Adapter(EU/US/UK /AU)
1pcs User Manual
| Cable length | AU Plug, EU Plug, UK Plug, US Plug |
|---|---|
| High-concerned chemical | None |
| Plug Type | UK,EU,AU,US |
| Size | <0.5M |
| Model Number | WS-F214 |
| Certification | CE |
| Origin | Mainland China |
| Item Type | Video Converter |
| Application | Projector,Telephone,Microphone,DVD Player |
| Gender | Female-Female |
| Connector B | BNC |
| Connector A | BNC |
| SDI format | 3G-SDI,HD-SDI,SD-SDI |
| Product Name | SDI Splitter 1X4 |
