Wiistar SDI to VGA CVBS AV Converter Adapter with SDI loop SD-SDI/HD-SDI/3G-SDI to AV VGA SDI Support 1080P for Monitor/Camera/Display

Product Description:

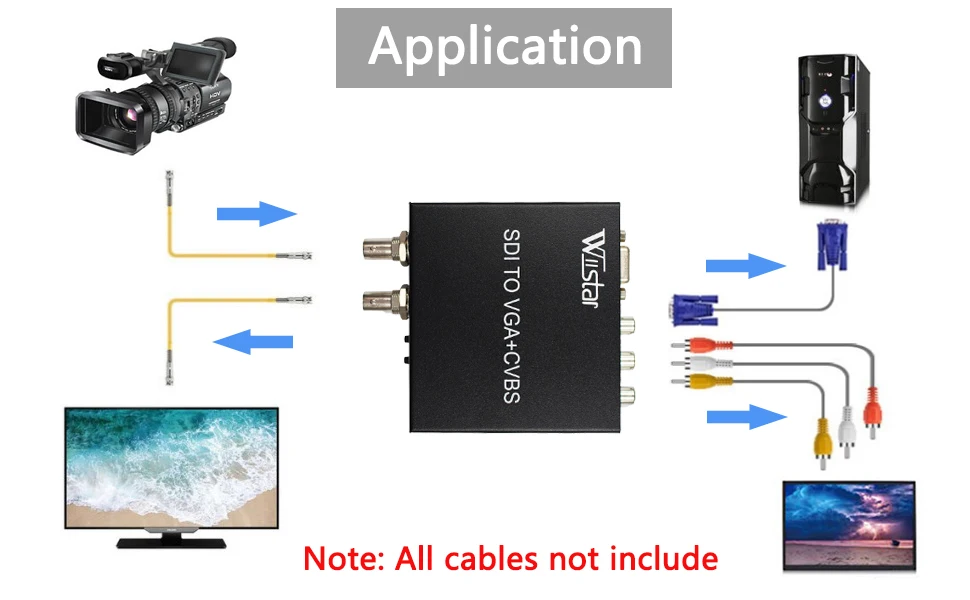

This Wiistar SDI to VGA CVBS converter can convert SDI (SDI-SDI/HD-SDI/3G-SDI) signal to VGA or AV signal,and it include a SDI input port and a SDI output port at the same time,support FULL-HD SDI signal input and output,it also very easy to be use with high stability and reliability.This converter can be widely used in SDI broadcast room, no-linear editing field, CCTV security system and training showroom etc.

Specification:

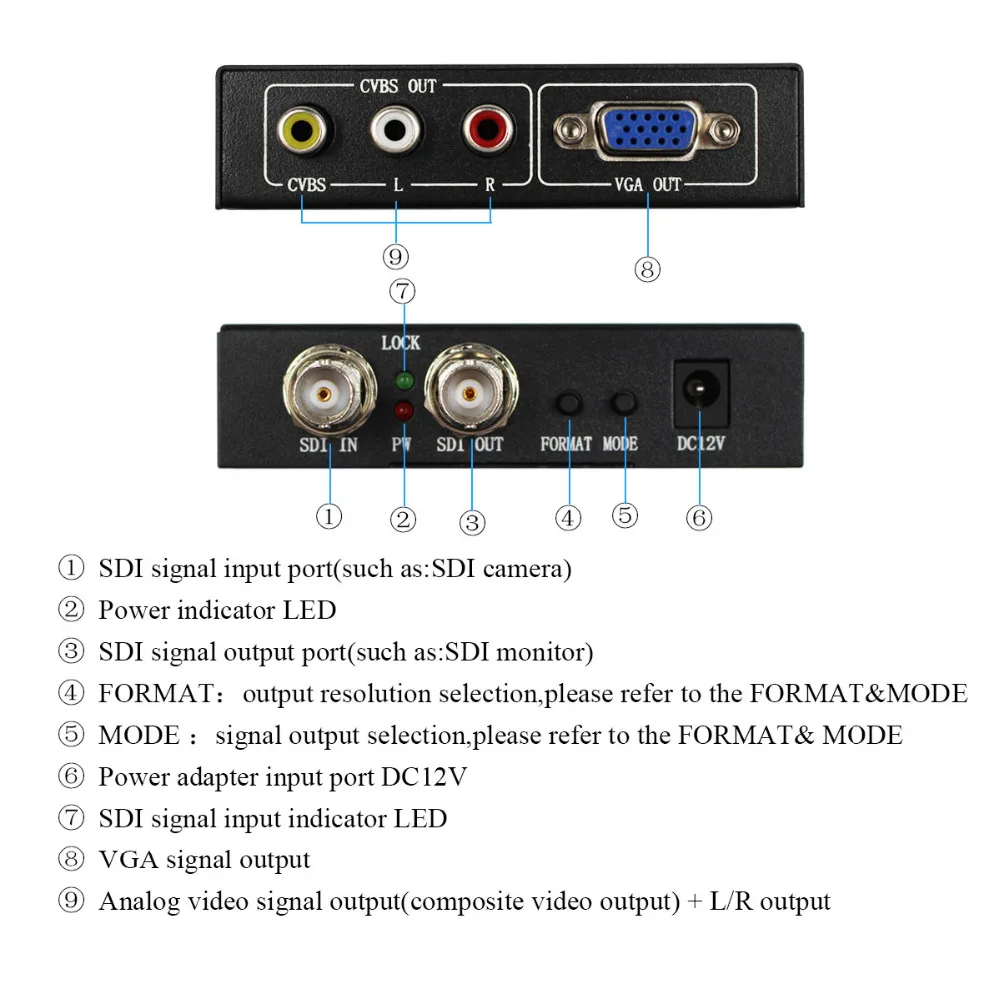

Input port: 1 x SDI BNC

Output ports: 1 x VGA ,1 x CVBS ,1 x SDI BNC

Supported cable length(BELDEN 1694A)

3G mode: up to 330 ft.

HD mode: up to 660 ft.

SD mode: up to 1320 ft.

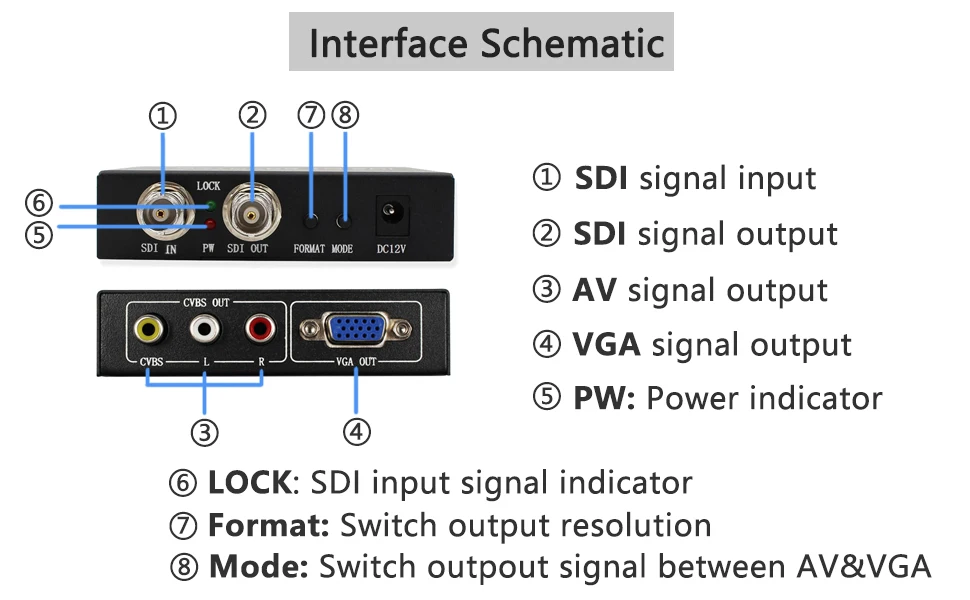

1.The most important key on the body of the product: MODE and FORMAT key.

2.The MODE key:it can switch the output channel to VGA or CVBS.

3.Format key:It can switch the resolution or the PAL/NTSC.

When the output channel is CVBS,the CVBS output will only can be switched between PAL and NTSC,you can press FORMAT key to get PAL or NTSC.

When the output channel is VGA,when you press FORMAT key,you will switch to these different resolution on your VGA device: 800*600p60, 1024*768p60, 1280*720p60, 1280*1024p60, 1360*768p60, 1680*1050p60, 1920*1080p60.

But there is a issue: Usually we take standard by SAMSUNG monitor when we develop this product,sometimes there will appear some color bar on your other brand monitor,because different brand monitor have different progress,so the color bar will appear,but the image is complete.

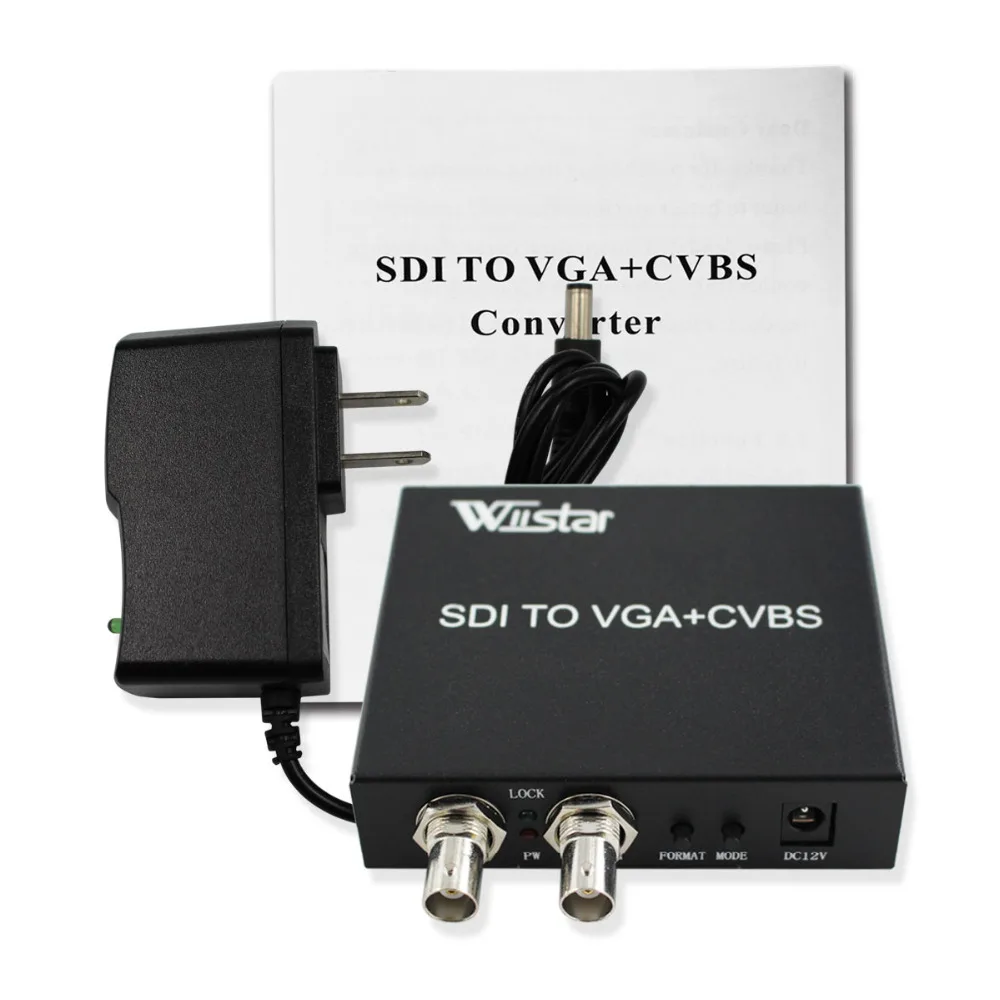

Package Contents:

1×SDI to VGA+CVBS converter

1×Power Adapter

1×User Manual
