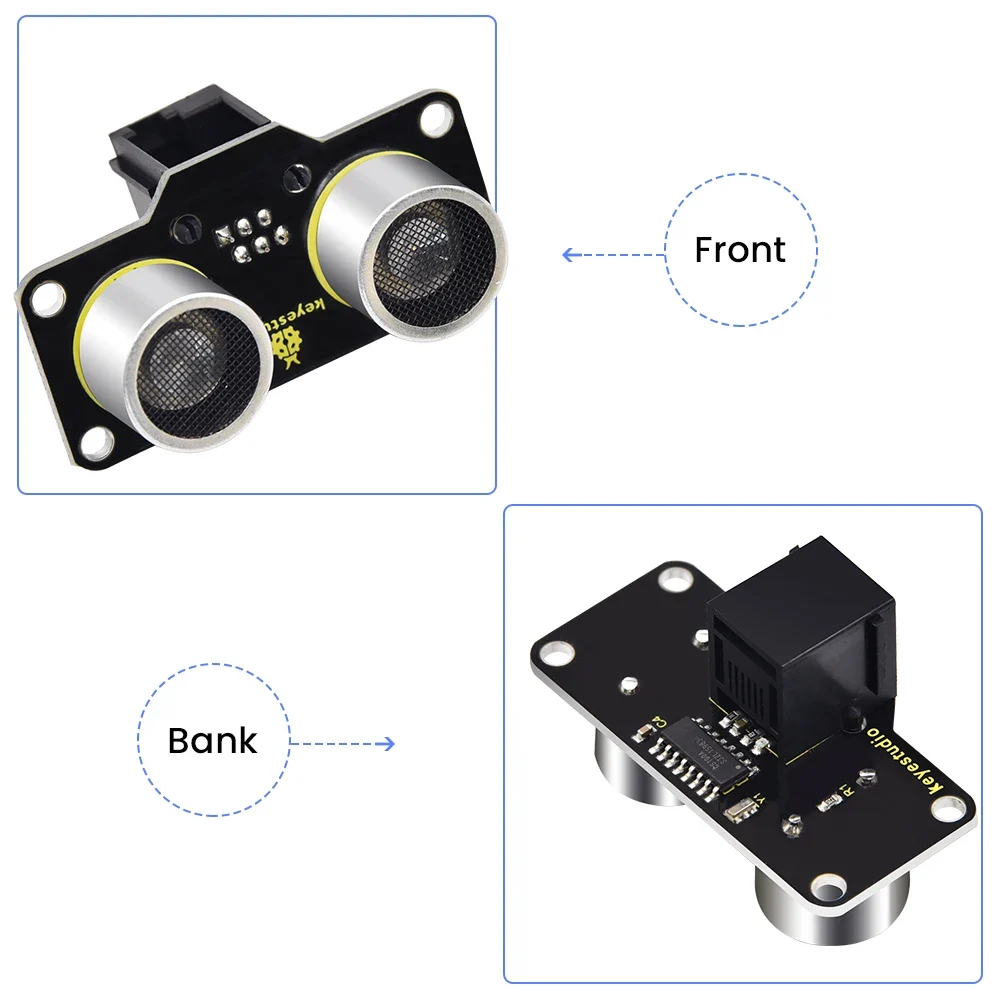

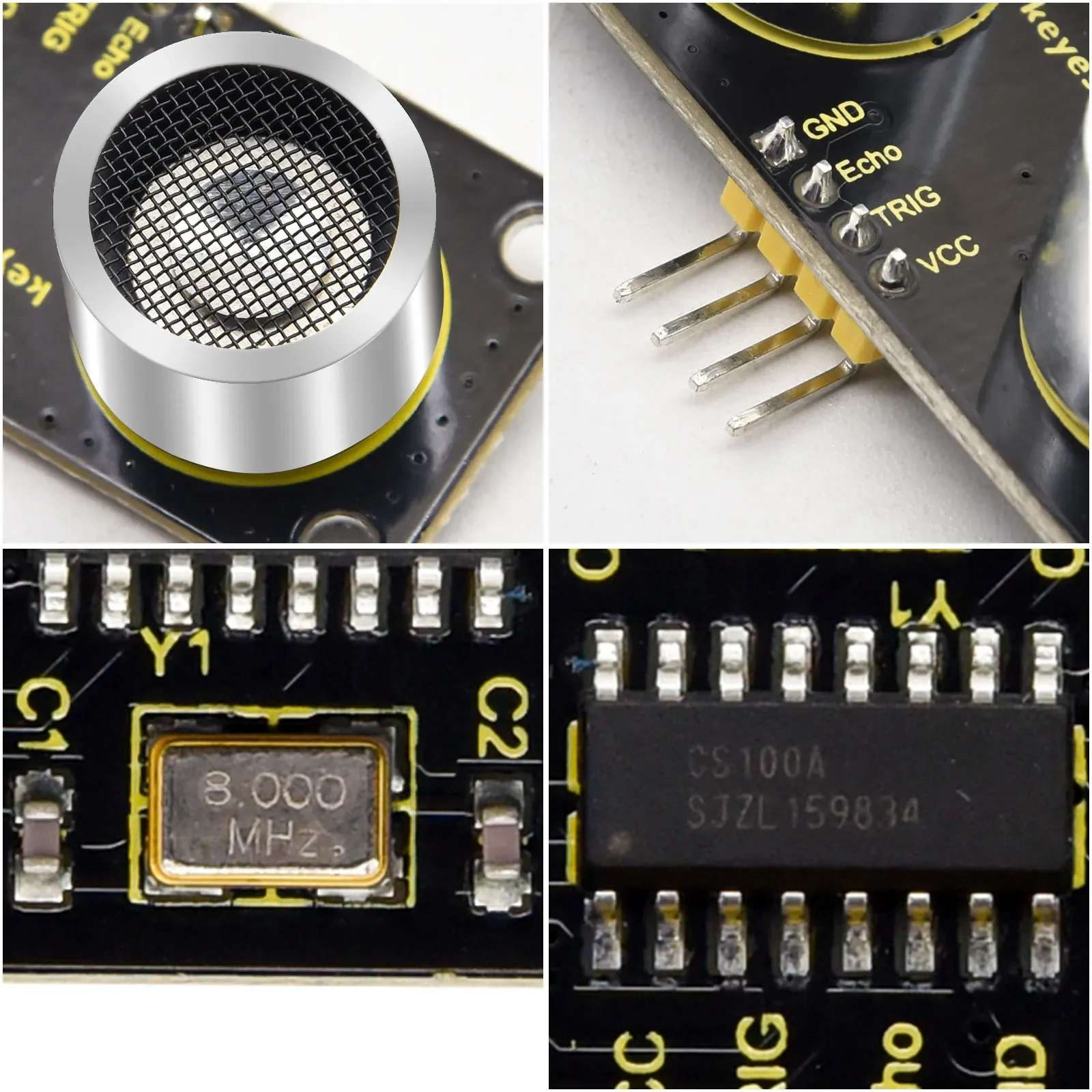

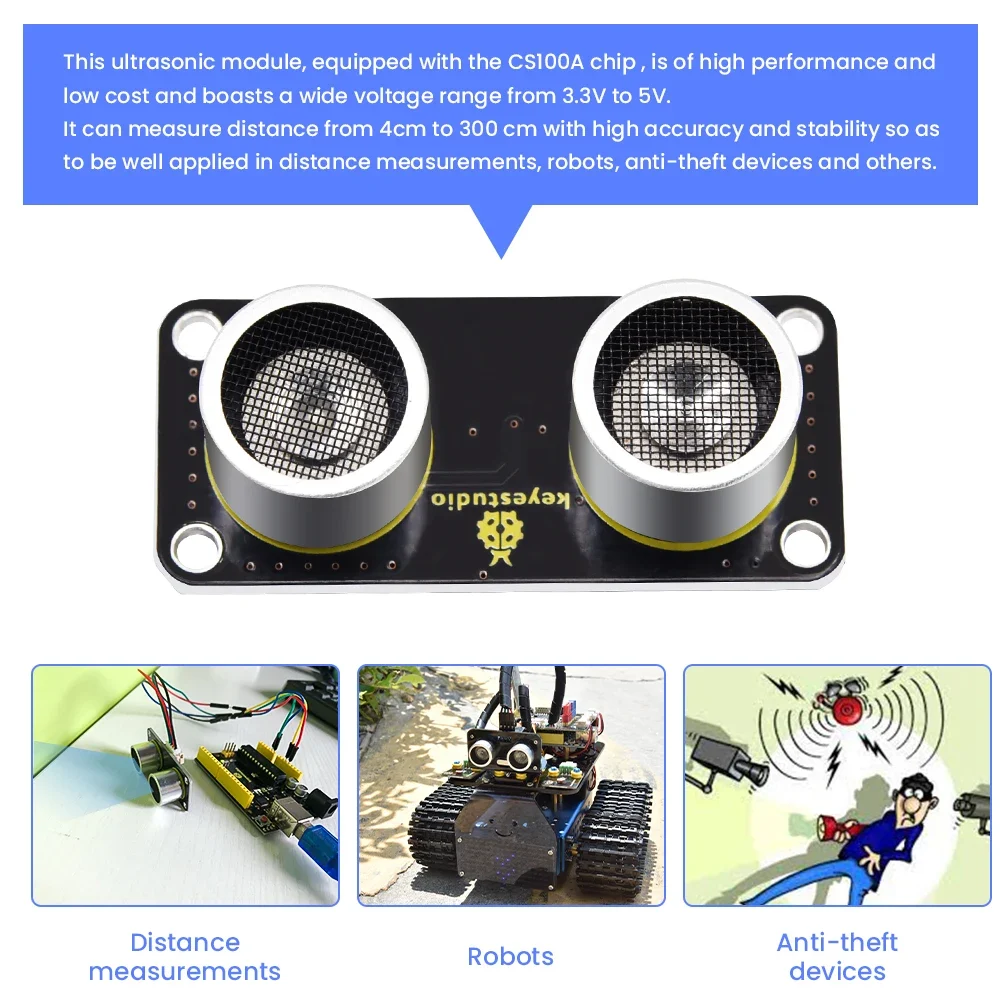

Keyestudio High Sensitivity SR01 CS100A Chip Ultrasonic Module Distance Sensor Detector Ranging Module for Arduino DIYElectronic
القسم: ألعاب أطفال, روبوتات الأطفال
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- is_customized: Yes
- Model Number: SR01 CS100A
- Dissipation Power: 0.5W
- Supply Voltage: 3.3-5V (DC)
- Application: Ultrasonic
- Type: Logic ICs
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: -10℃ – +60℃
- Working frequency: 40KHz
- Maximum distance: 300CM
- Minimum distance: 4CM
- Measurement angle: 15 degrees
- Trigger input signal: 10μs TTL pulse
- Product number: KS0511/KS0504/KS2003

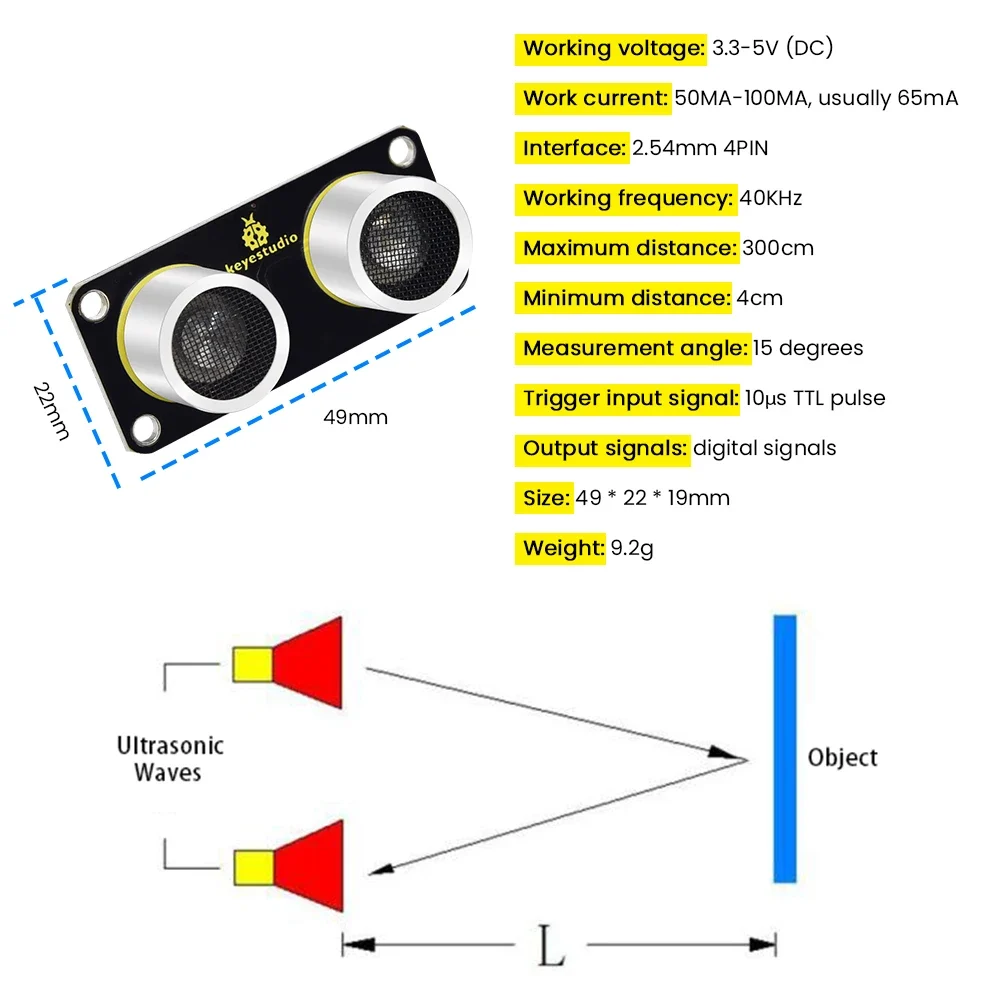

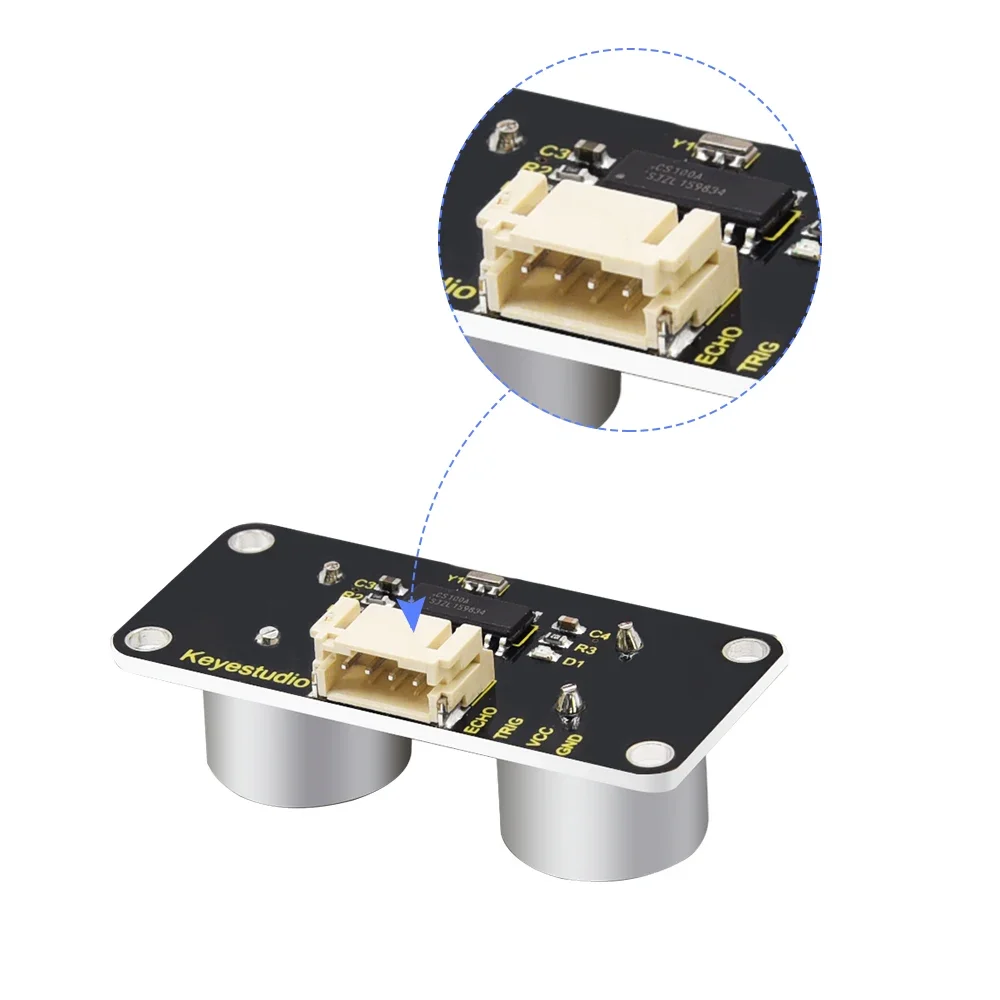

PH2.0 4P Port:
Working voltage: 3.3-5V (DC)
Work current: 50MA－100MA，usually 65mA
Interface: 2.54mm 4PIN
Working frequency: 40KHz
Maximum distance: 300cm
Minimum distance: 4cm
Measurement angle: 15 degrees
Trigger input signal: 10μs TTL pulse
Output signals: digital signals
Size: 49 * 22 * 19mm
Weight: 9.2g

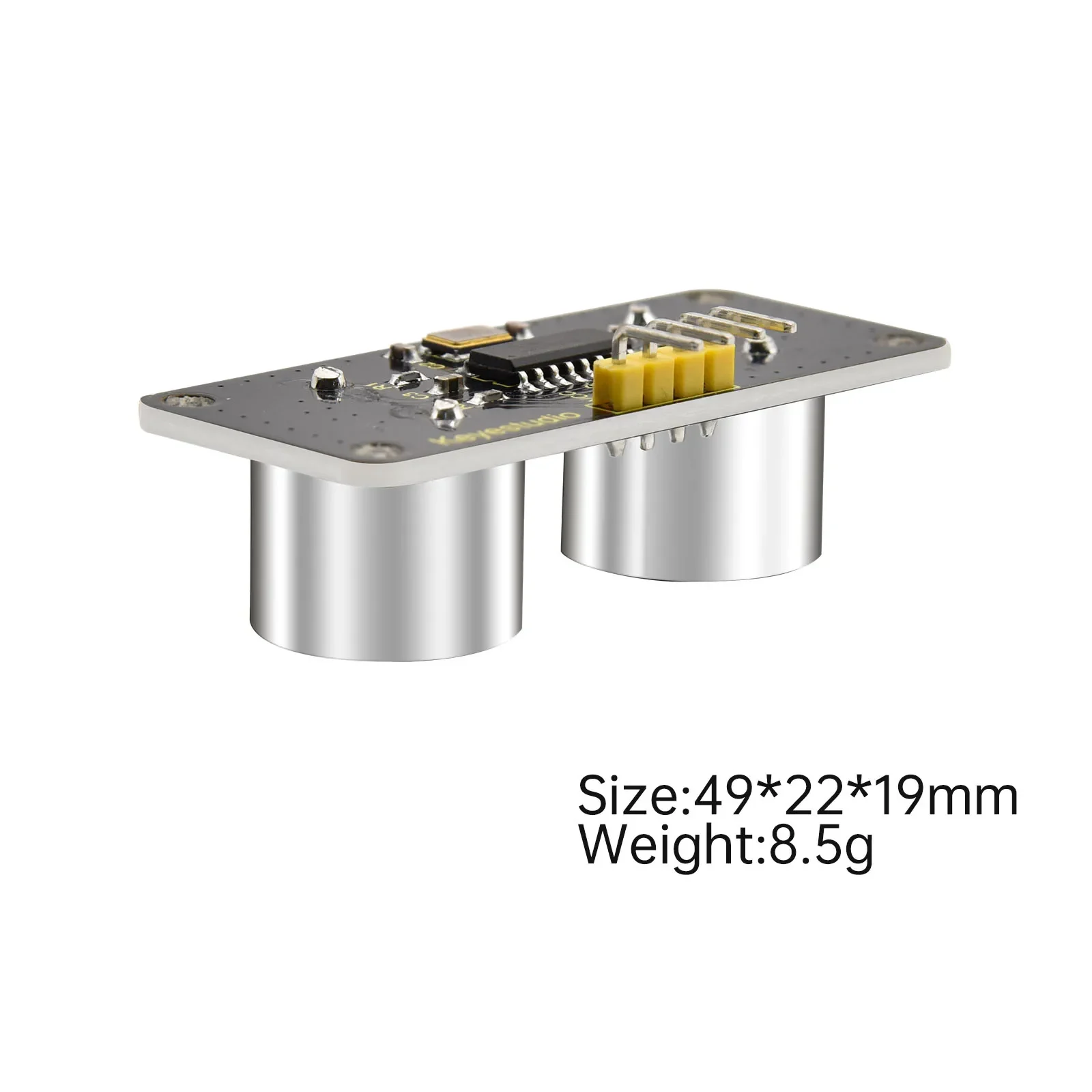

Pin Header Port:
Working Voltage: DC 3.3V-5V
Working Current: 50mA－100mA
Working Frequency: 40KHz
Max Power: 0.5W
Max Range: 3m
Min Range: less than 4cm
Measuring Angle: less than 15 degree
Trigger Input Signal: 10µS TTL pulse
Interface：4 pin port with 2.54mm space
Position Holes：the diameter is 3mm
Working Temperature： -10℃ – +60℃
Size：49mm*22mm*19mm
Environmental attributes: ROHS

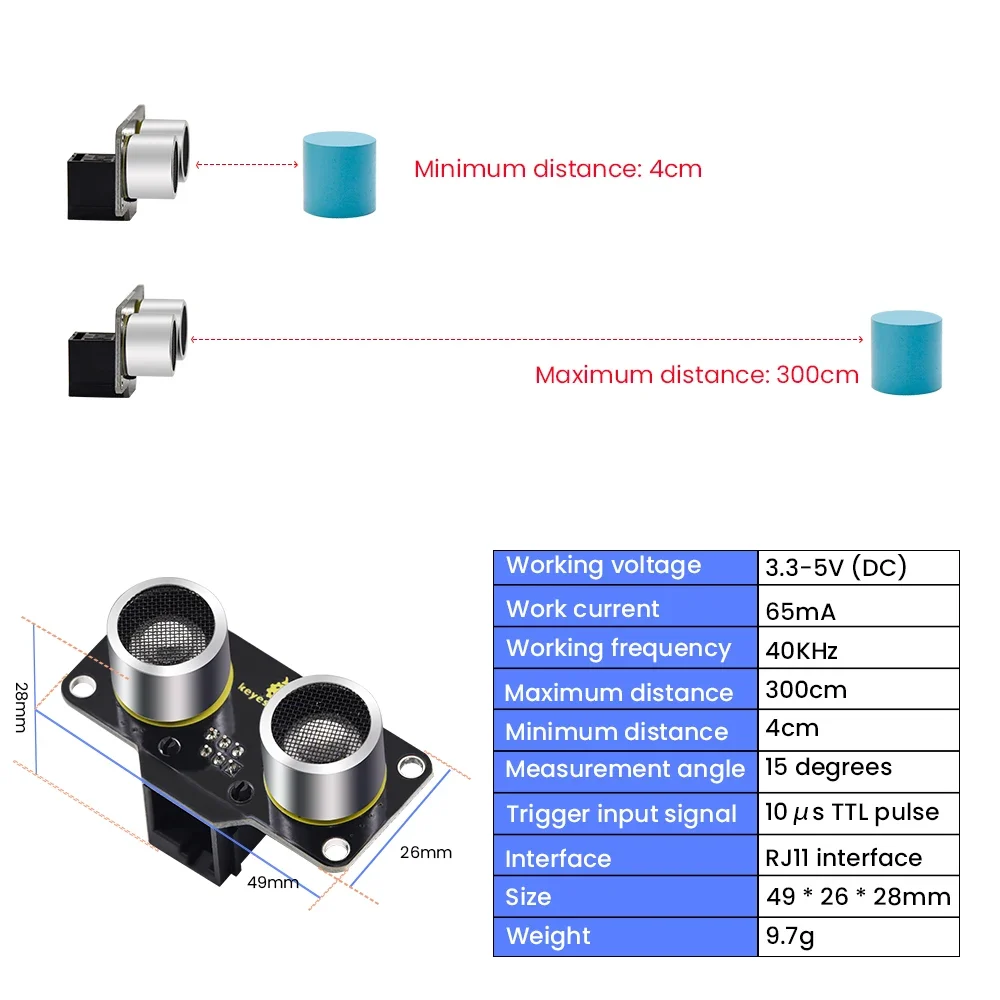

RJ11 Port:
Working voltage: 3.3-5V (DC)
Work current: 65mA
Working frequency: 40KHz
Maximum distance: 300cm
Minimum distance: 4cm
Measurement angle: 15 degrees
Trigger input signal: 10μs TTL pulse
Interface: RJ11 interface
Size: 49 * 22 * 19mm
Weight: 9.2g
| Color | |
|---|---|
| is_customized | Yes |
| Model Number | SR01 CS100A |
| Dissipation Power | 0.5W |
| Supply Voltage | 3.3-5V (DC) |
| Application | Ultrasonic |
| Type | Logic ICs |
| Brand Name | keyestudio |
| Origin | Mainland China |
| Condition | New |
| Operating Temperature | -10℃ – +60℃ |
| Working frequency | 40KHz |
| Maximum distance | 300CM |
| Minimum distance | 4CM |
| Measurement angle | 15 degrees |
| Trigger input signal | 10μs TTL pulse |
| Product number | KS0511/KS0504/KS2003 |
