keyestudio Micro:bit Terminal Blocks Shield & 3V Sensor Shield For BBC Micro:bit DIY Electronic Test
مشاركة المنتج
- High-concerned chemical: None
- Package: SOP
- is_customized: Yes
- Supply Voltage: DC 3V
- Application: Micro:bit
- Type: Module
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: -10-40
- Operating voltage: DC3.0-3.3V
- Pin Pitch: 2.54mm
- Features: 5×5 LED Matrix, two integrated push buttons, a compass, Accelerometer, and Bluetooth
- Support: PXT graphical programming interface,Windows, MacOS, IOS, Android and so on

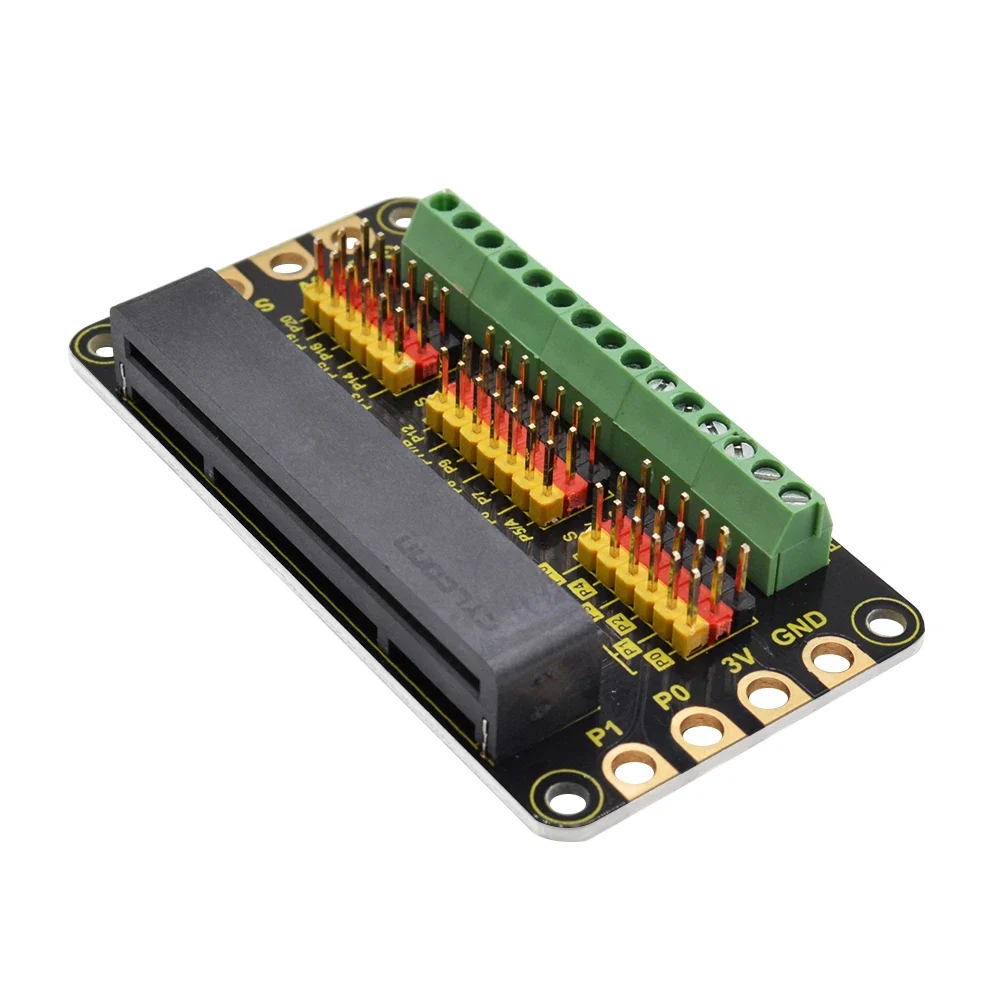

Micro:bit Terminal Blocks Shield
To connect a bunch of sensor modules to the micro:bit main board, try use our keyestudio new designed expansion shield for micro:bit.

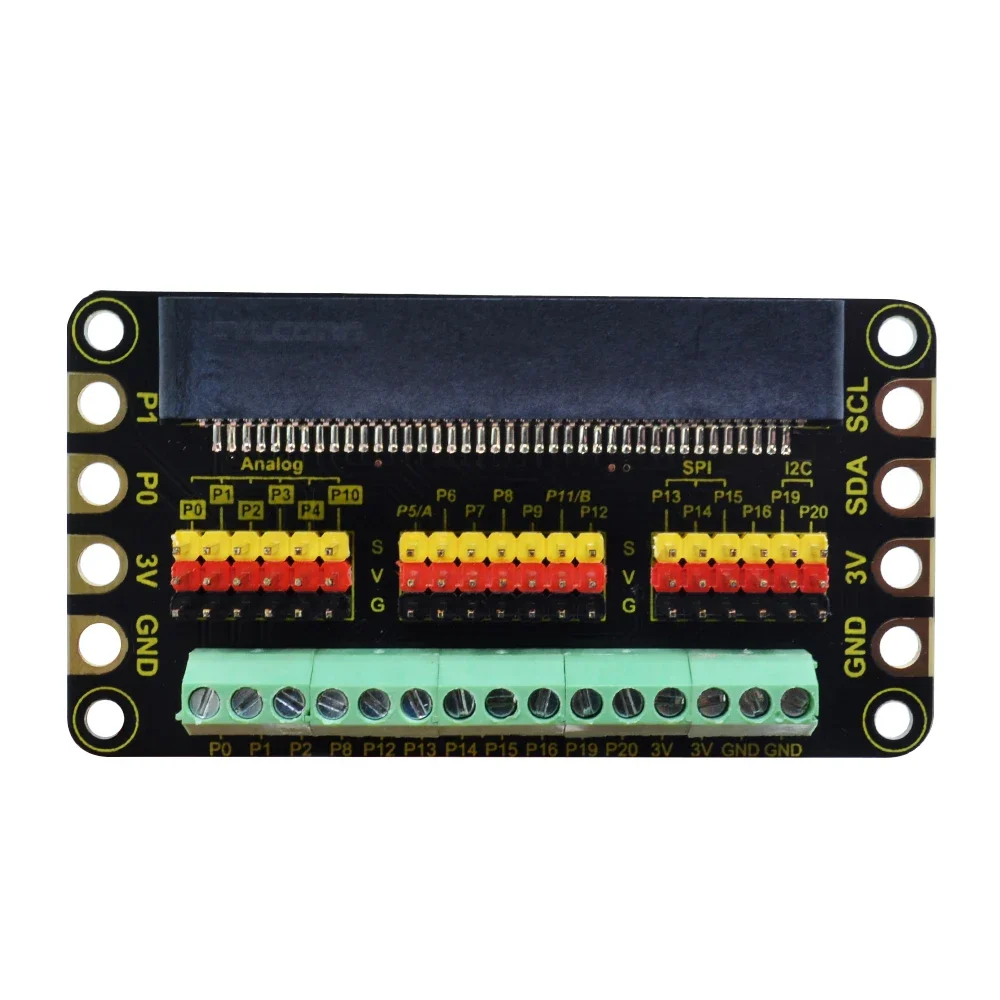

To make connection more direct, the sensor shield has brought out all the IO pins on the edge of micro:bit main board to 3Pin interface. These provide an easy way of connecting circuits using jumper wires. Label G means GND; V is VCC (3.0-3V); S is Signal pin; corresponds to IO pins of micro:bit main board.

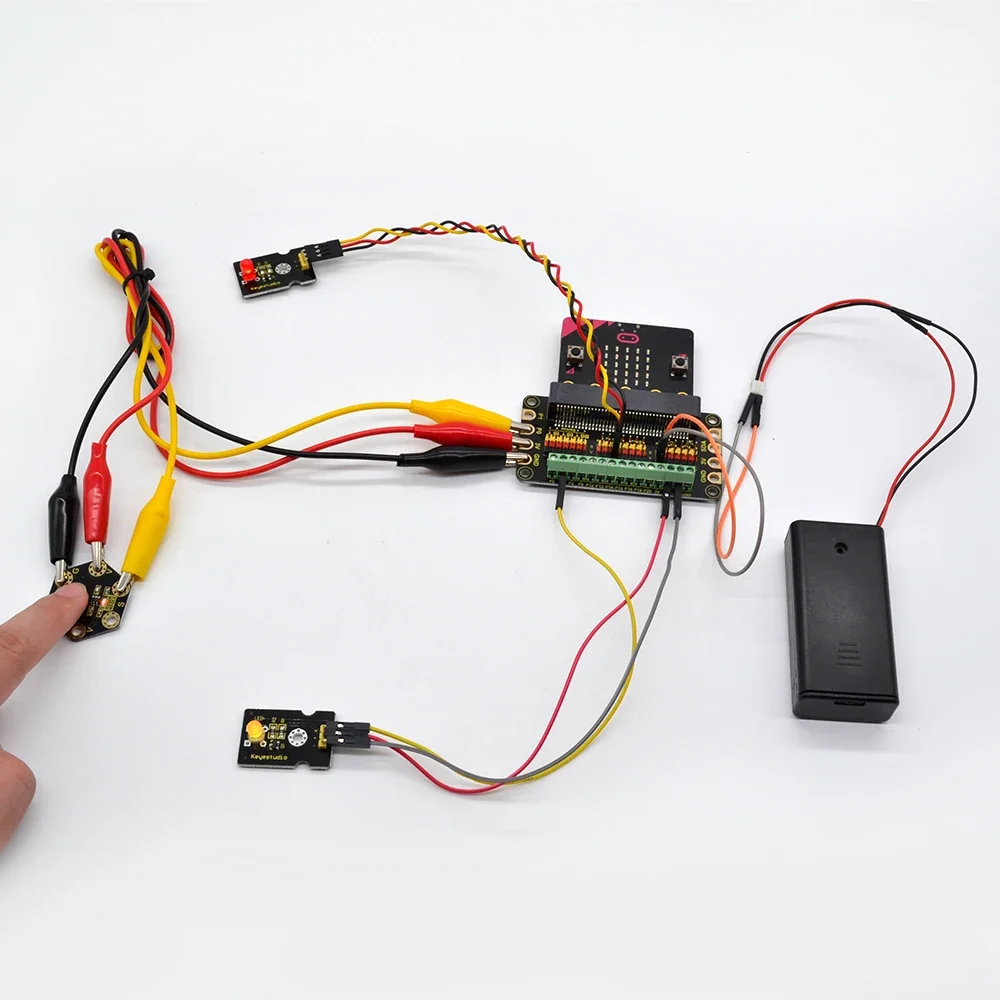

There are 3 kinds of hookup methods as follows:
Connect the golden rings on the shield to sensor modules with alligator clip lines;
Connect the sensor modules to the pin headers on the shield with jumper wires;
Connect the green terminal blocks on the shield with lead wire.

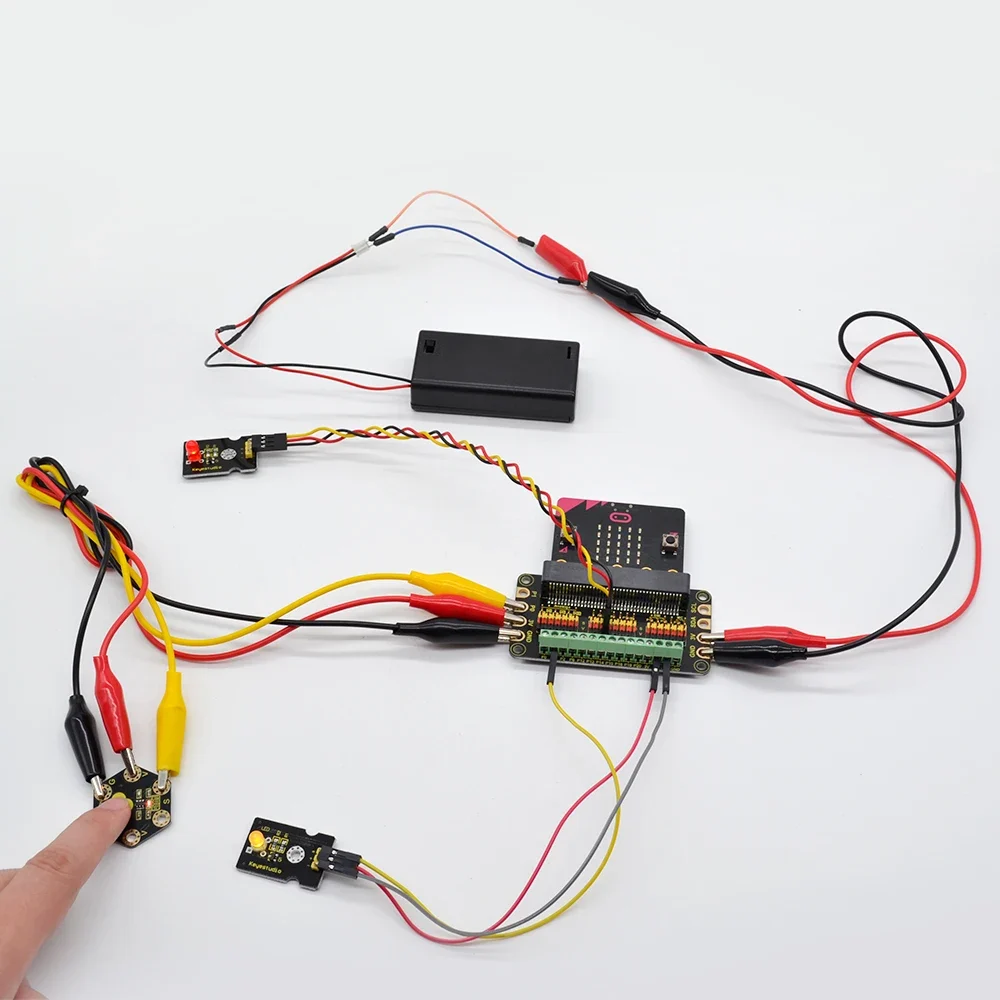

There are 4 kinds of power supply methods for the shield and micro:bit main board.
Direct connect the battery case to micro:bit main board for power supply;

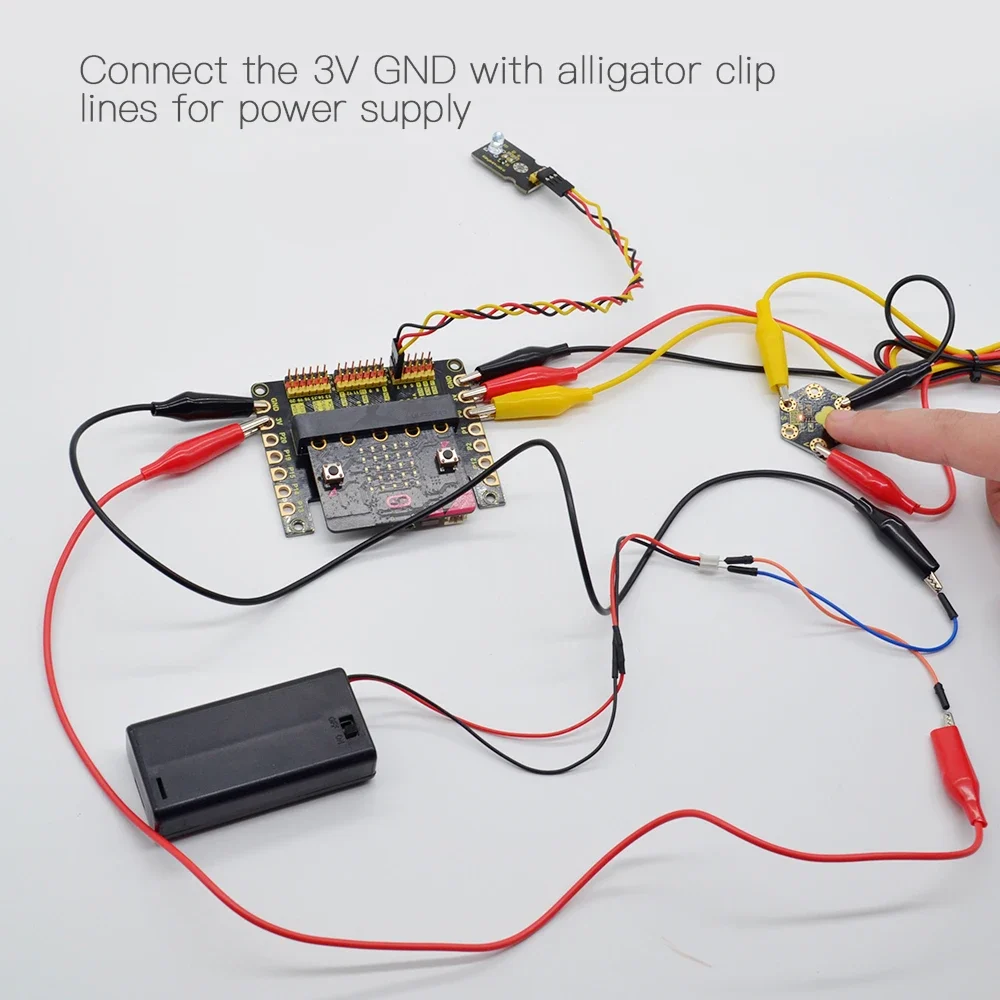

Connect the golden rings 3V GND with alligator clip lines for power supply;

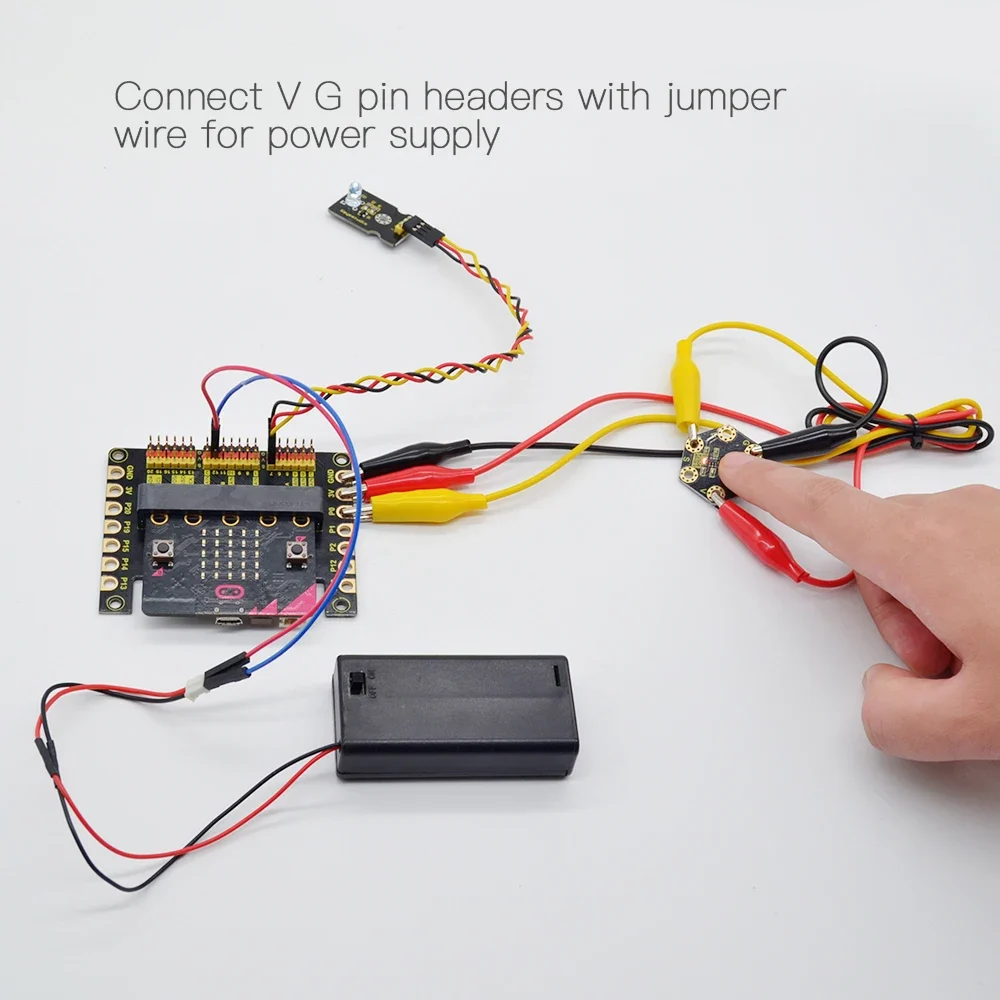

Connect random group of V G pin headers with jumper wire for power supply;
Connect the green terminal blocks 3V GND on the shield with lead wire.
The terminal blocks shield comes with 4 fixed holes at the edge, easy to mount on any other devices.
Specification
Operating voltage: DC3.0-3.3V
Pin Pitch: 2.54mm
Green terminal blocks spacing: 3.5mm
Dimensions: 76mm*41mm*12mm
BBC micro:bit 3V Sensor Shield
You can connect the golden rings on the sensor shield to other sensors or modules using Alligator clip line. Or connect the sensors/modules to the pin headers on the sensor shield using jumper wires.
There are 3 kinds of power supply methods for the sensor shield and micro:bit main board.
1)Direct connect the battery case to micro:bit main board for power supply;
2)Connect the golden rings 3V GND with alligator clip lines for power supply;
3)Connect random group of V G pin headers with jumper wire for power supply.
The sensor shield comes with 4 fixed holes at the edge, easy to mount on any other devices.
Specification
Operating voltage: DC3.0-3.3V
Pin Pitch: 2.54mm
Dimensions: 76mm*63mm*12mm
Weight:22.8g
| Model Number | 3V Sensor Shield, Terminal BlockShield |
|---|---|
| High-concerned chemical | None |
| Package | SOP |
| is_customized | Yes |
| Supply Voltage | DC 3V |
| Application | Micro:bit |
| Type | Module |
| Brand Name | keyestudio |
| Origin | Mainland China |
| Condition | New |
| Operating Temperature | -10-40 |
| Operating voltage | DC3.0-3.3V |
| Pin Pitch | 2.54mm |
| Features | 5×5 LED Matrix, two integrated push buttons, a compass, Accelerometer, and Bluetooth |
| Support | PXT graphical programming interface,Windows, MacOS, IOS, Android and so on |
