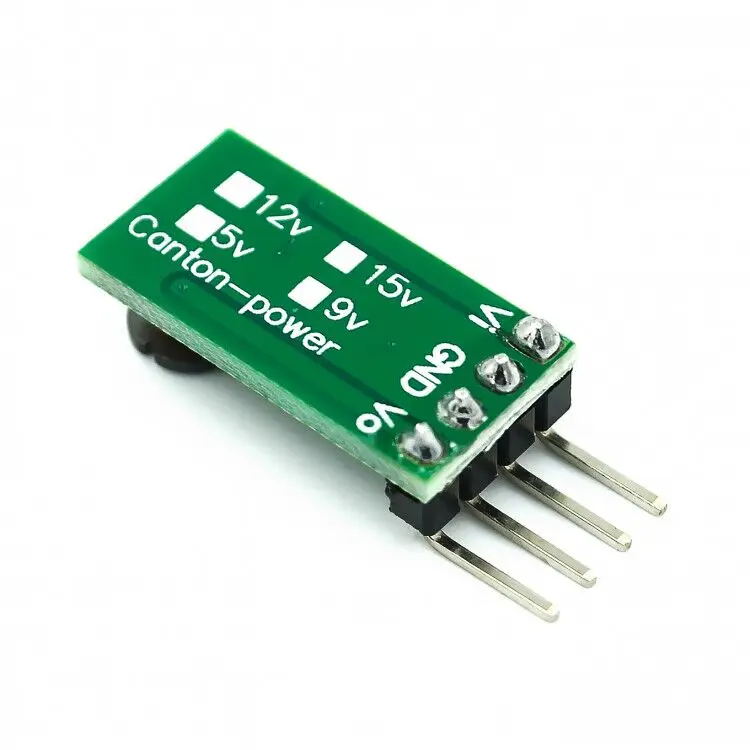

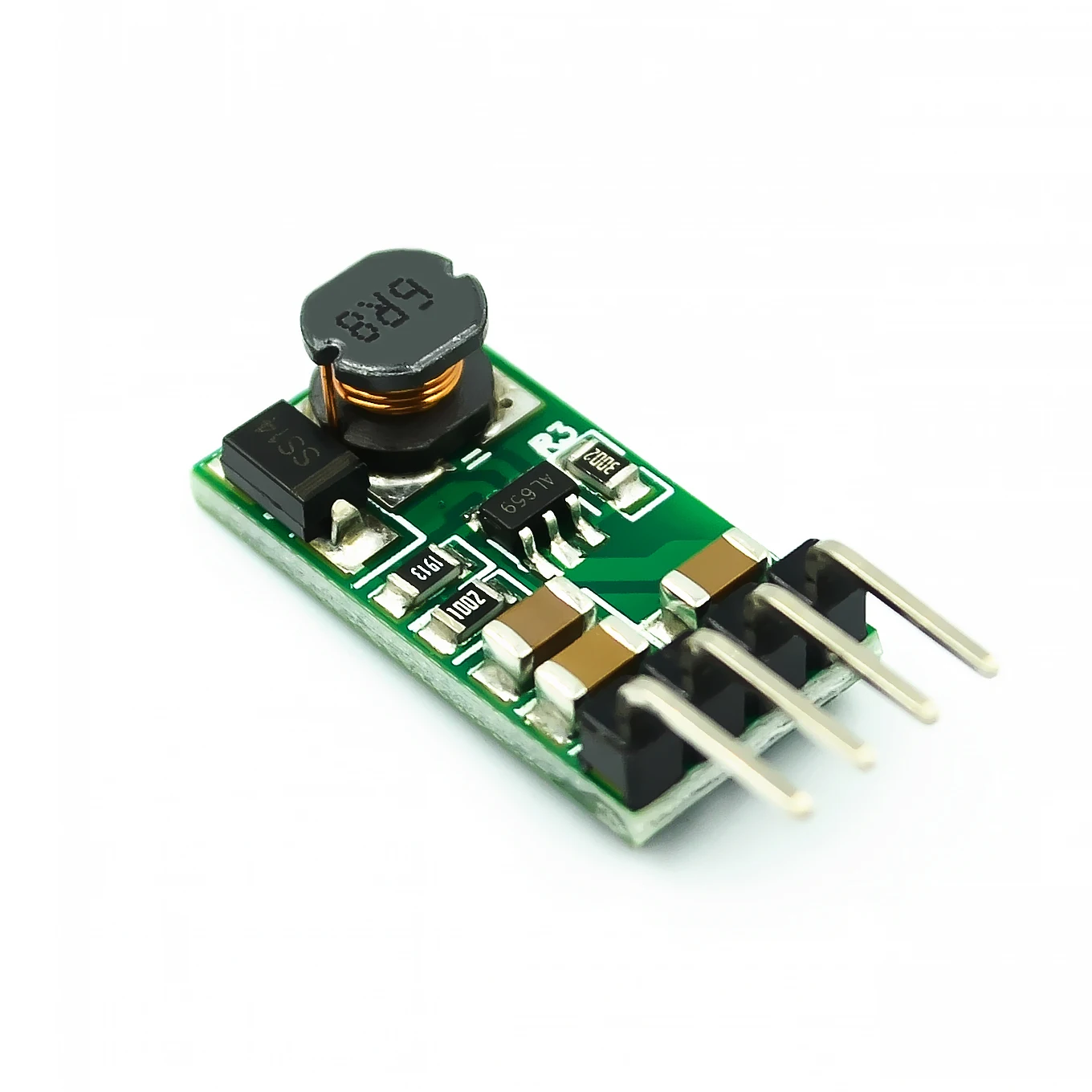

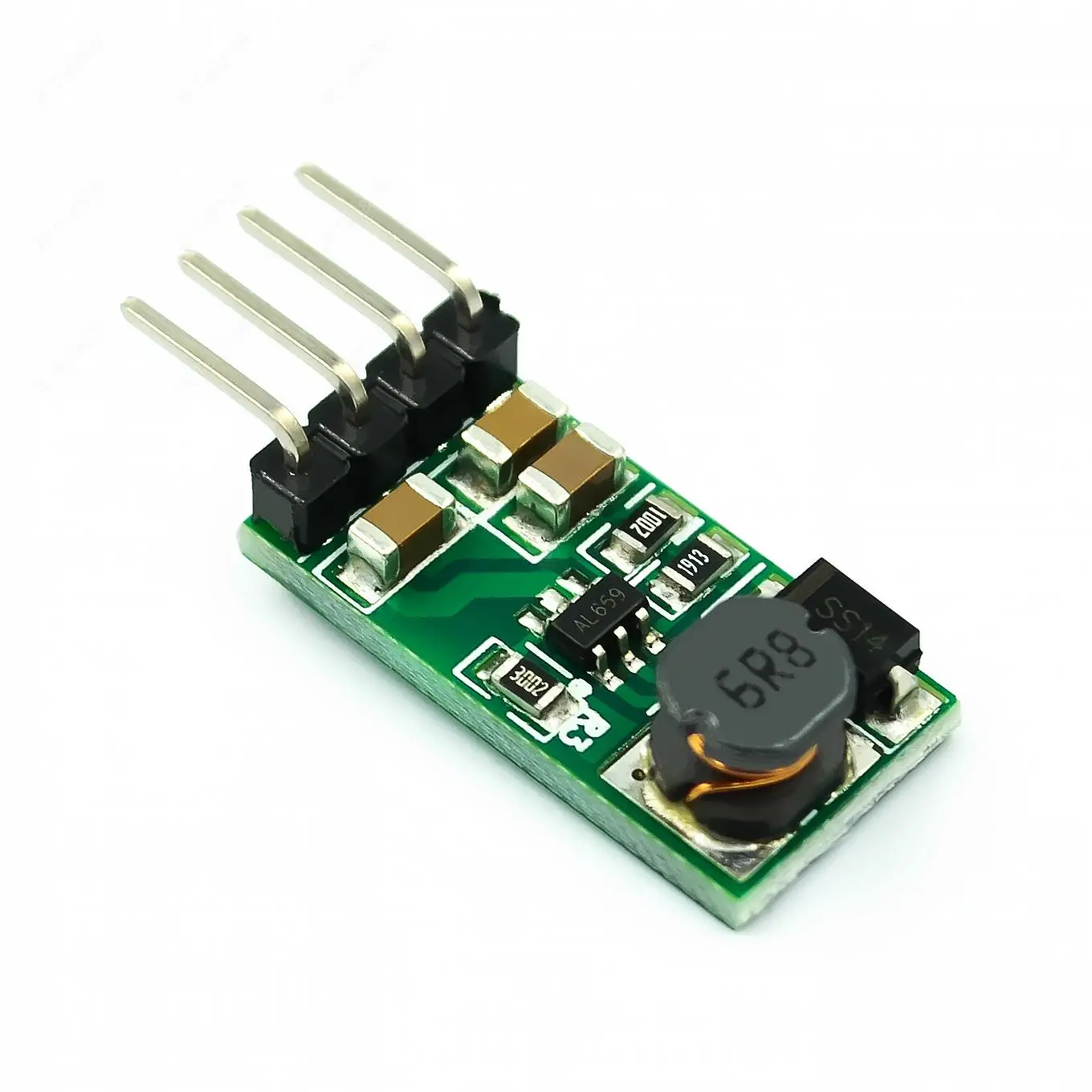

Mini DC-DC 3.3V 3.7V 4.5V 5V to 12V Step Up Boost Converter Module for Smart Home
القسم: غير مصنف
18 ر.ق
حالة التوفر: متوفر في المخزون
قسط على
4
دفعات
ر.ق4.50
مع خدمة
باي ليتر شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- معلومات المنتج
- مواصفات المنتج
- Brand Name: Si Tai&SH
- Origin: Mainland China
- High-concerned chemical: None
- Condition: New
- Type: Voltage Regulator
- Supply Voltage: 1
- Dissipation Power: 1
- is_customized: Yes
- Application: Computer
We have here a very impressive product with countless of features that you will surely need! This module has a lot of excellent functions. 1.2A current limiting resistor, remove the resistance, the maximum input current can reach 2A. And IC have “over temperature protection” function. It will turn off the power MOSFET automatically when the internal junction temperature is over 150 Degrees Celsius. The power MOSFET wake up when the junction emperature drops 30 under the OTP threshold temperature. It is small and easy to operate, of course, it’s safe. Do not hesitate to ask us for our recommendation to ensure the best possible feature and function that will work out for you!
Features:
Small size, convinent for carrying and storing.
Sufficient voltage and steady current.
Easy to operate and very safe.
Good in quality but inexpensive.
All the product will send after good package.
Widely-used, suitable for many kinds of electric appliances.
Specifications:
Output 5V
Input voltage: 3-6V, output 12+-0.6V
Maximum output current: 1.2A
Start voltage: 2.8V, output current: 50mA
Input: 3V 1A, output: 12V 220ma
Input: 3.3V 1A, output: 12V 250mA
Input: 3.7V 1A, output: 12V 280mA
Input: 4.5V 1A, output: 12V 340mA
Input: 5V 1A, output: 12V 370mA
Input: 6V 1A, output: 12V 450mA
Item size: 20.5 * 10.2 * 5.6mm / 0.8 * 0.4 * 0.2in
Package size: 20.5 * 10.2 * 5.6mm / 0.8 * 0.4 * 0.2in
Item weight: 1.4g / 0.05oz
Package weight: 5g / 0.18oz
Notice:
1: Input voltage can not be greater than the maximum input range.
2: Output power can not be greater than the maximum load for a long time.
3: Input power must be greater than the output power, because the power consumption of the module itself.
