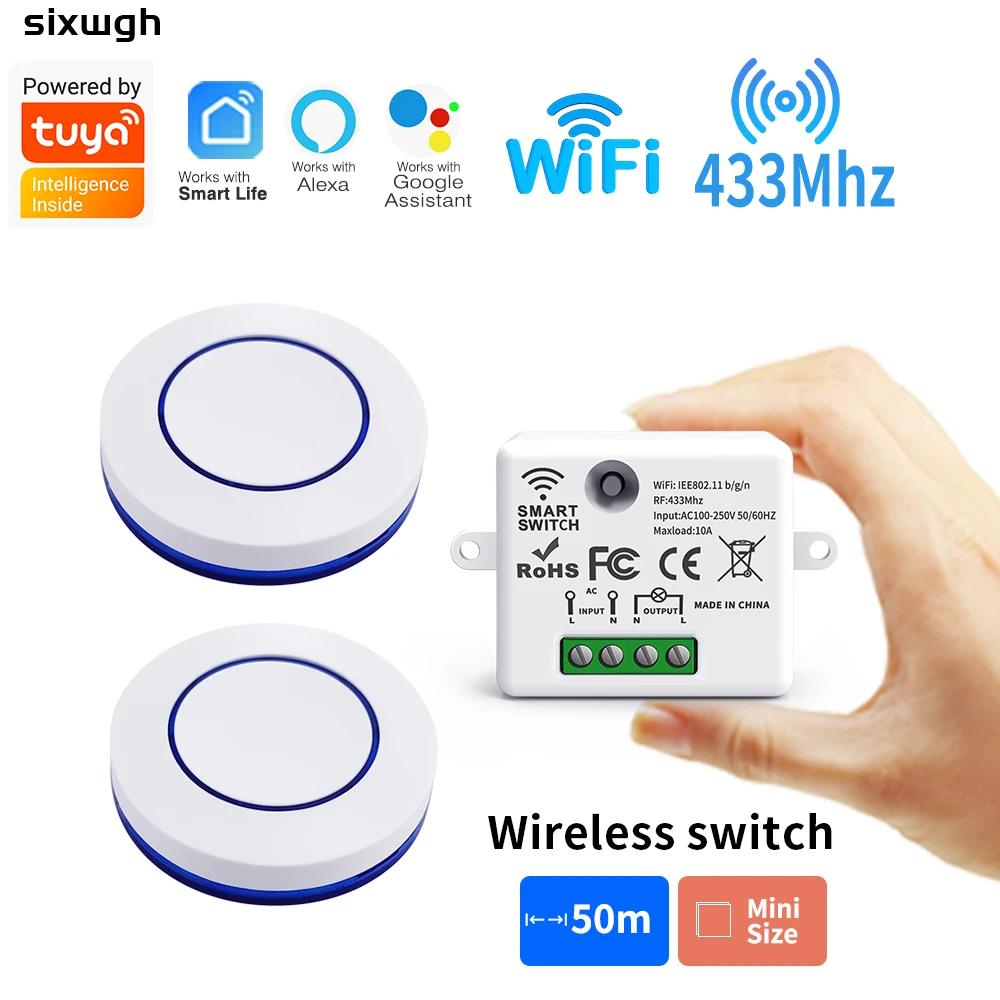

⭐Receiver parameters:

1.Working voltage: AC100-250V 60HZ/50HZ

2. Maximum current: 10A

3.WIFI: IEEE 802.11 b/g/n 2.4Ghz

4.RF Working frequency: 433.92MHZ

Size: 67×41.2×25.7 (mm) (Body size:47.4*41.2*25.7mm)

Study: EV 1527

Mode: ASK

6. App: Support Tuya smart & Smart Life APP

⭐Wireless switch parameters:

1, working voltage: DC 3V（CR2032 battery）

2, working frequency: 433MHZ

6, size: 50* 50 * 13(mm)

7.Wireless switch, no wiring required, free installation and free movement within the effective range,Controlling 1 lamp from multiple places

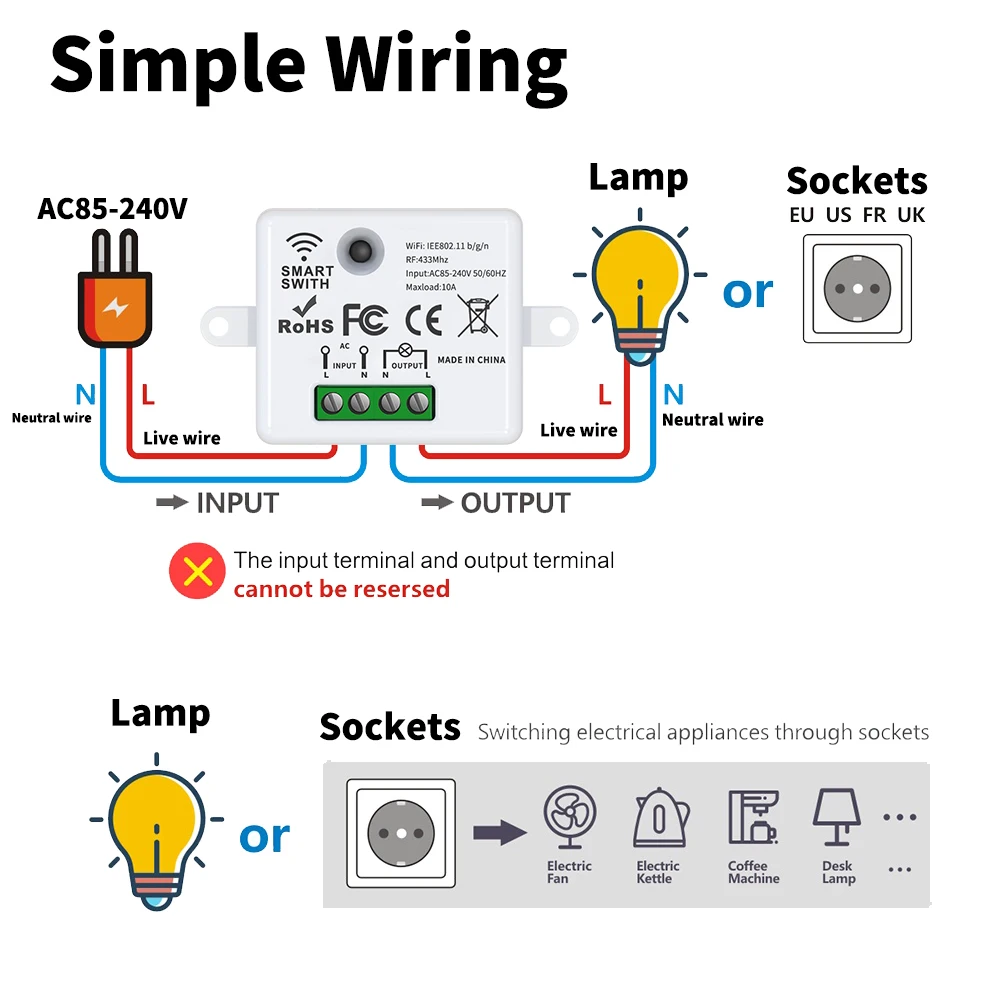

⭐⭐⭐Wiring diagram:

The output and input terminals of the receiver need to be connected to the live and neutral wires

Attention: Before wiring, please disconnect the power supply

⭐⭐⭐Our advantage:

⭐1.433MHZ RF function + WIFI function 2 in 1, smarter and more user-friendly

⭐3. 4 kinds of control mode

433MHZ RF +Voice control + APP control+ON/OFF key

Especially suitable for the elderly, nursing mothers,Pregnant women, disabled people, children, etc.

⭐APP control: Support Tuya smart & Smart Life APP

As long as there is a network signal, it can be controlled anywhere

⭐Voice control:

Works perfectly with Alexa,Google Home, Simply give a voice command to Alexaor Google Home to turn on/off switchwhen your hands are full. and enjoythe comfort of voice.

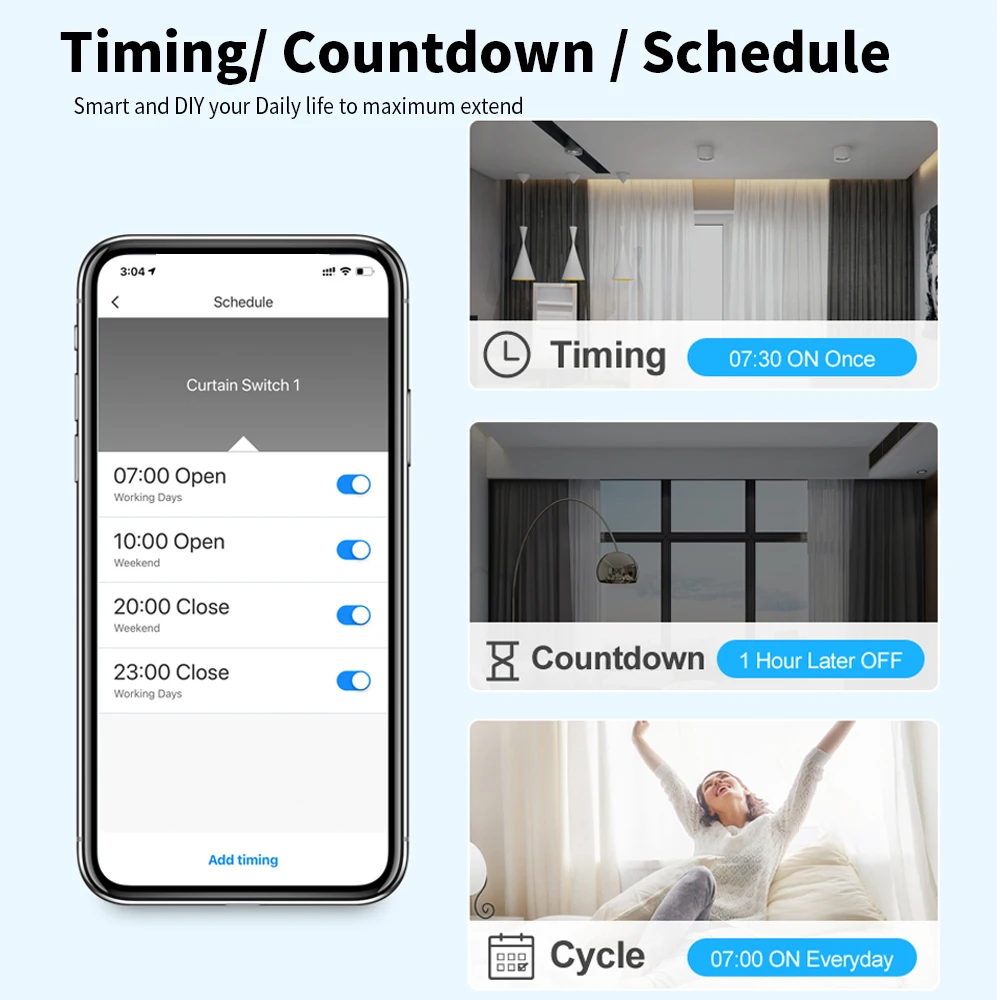

⭐Countdown function

You can set a countdown for humidifiers, microwaves, coffee machines and more. The device will stop automatically. Don’t worry about the device working all the time

⭐Timing Function

Set the time to turn on the light.

Set time to cook rice…

⭐Family Sharing Control Fun

main account has the exclusive permissions,one click to share the permissions with the whole family.let the family enjoy the fun of smart life!

More convenient remote control fun

⭐3 Kinds Of Restart State

No need to worry about the status of the lights when going out.

1.Turn off the lights, turn on the lights,and operate before the memory.

2.No need to worry about the statusof the lights when going out

⭐ LONG RANGE(Open space)

Tip: The obstacle will shorten the distance, the wireless signal is affected by the environment, the more obstacles, the shorter the distance.

⭐Working principle

Input and output intermediate access controller. Wireless switch control current is turned off and on at 433 MHz

⭐Remote control distance 0-50m

Never worry about getting up and turning off the lights in winter

⭐Feel free to place, multiple fixing methods

⭐⭐Pairing method

(1)Learning Pairing

1) Manual pairing method: press the Receiver button for 2 times and the LED fashes to enter the Pairing matching mode.At this time, press the remote control switch 2 times, and the lightis successfully controlled.

(2) Clearing Pairing

Manual Pairing clearing method: press the Receiver button for 8 times,and the LED flashes to clear the Pairing successfully.
