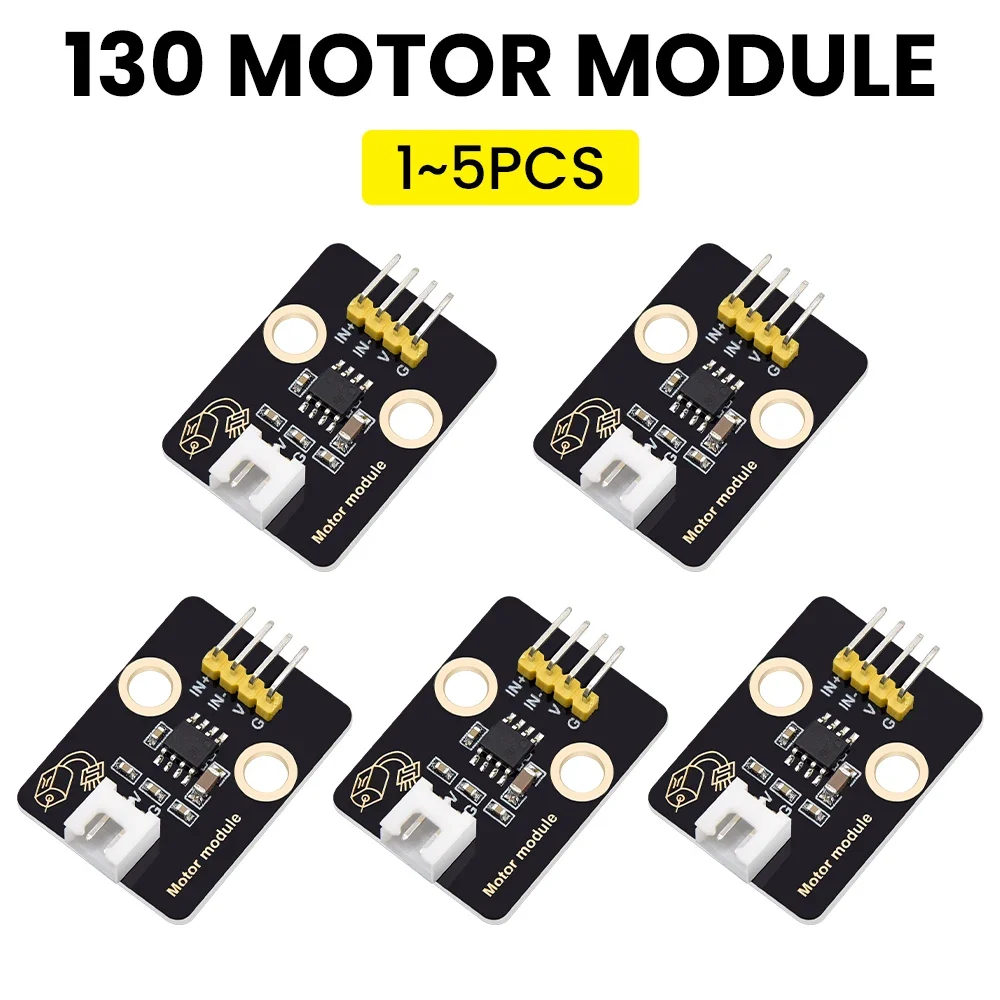

1PC/3PCS/5PCS Keyestudio 130 Motor DC3-5V Driving Module XH2.54 Connector H-bridge HR1124S Module for Arduino UNO Projects
مشاركة المنتج
- High-concerned chemical: None
- Package: SMD
- is_customized: Yes
- Supply Voltage: DC3-5V
- Application: 130 Motor
- Type: Module
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: 1°C ~ 50°C

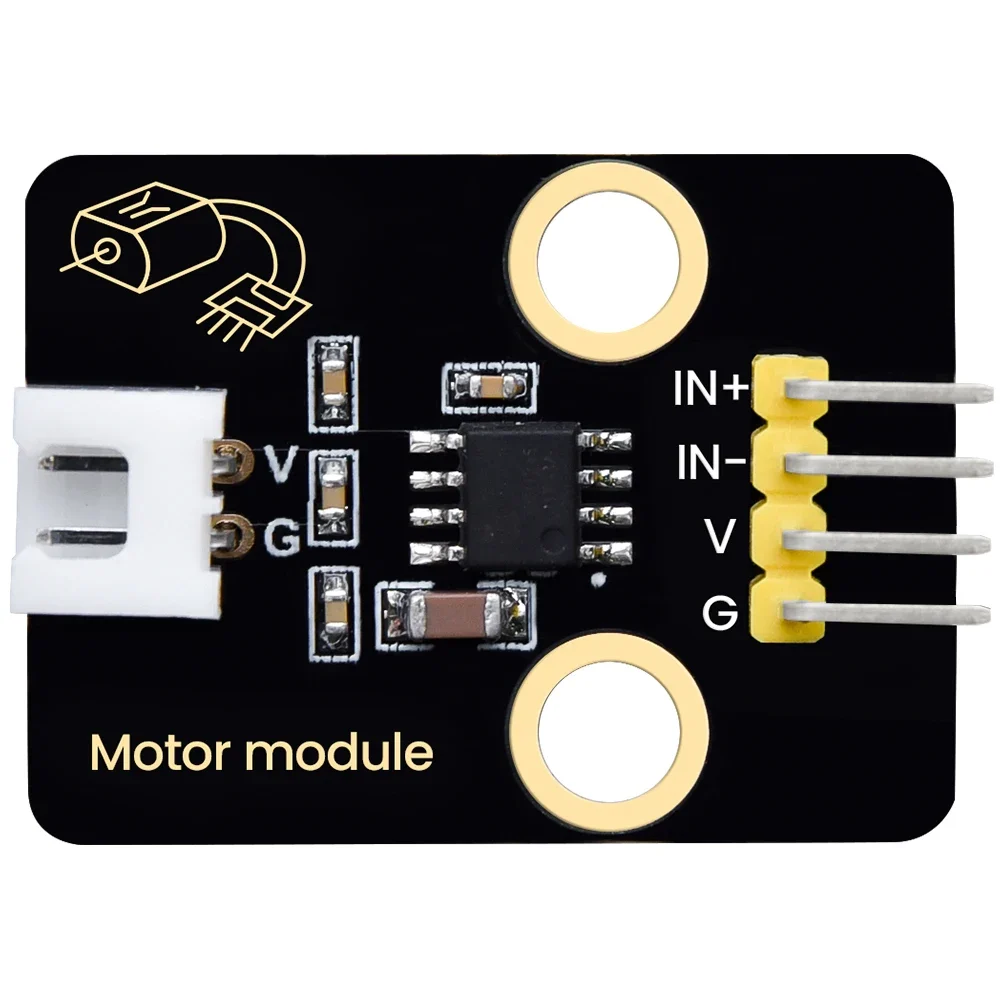

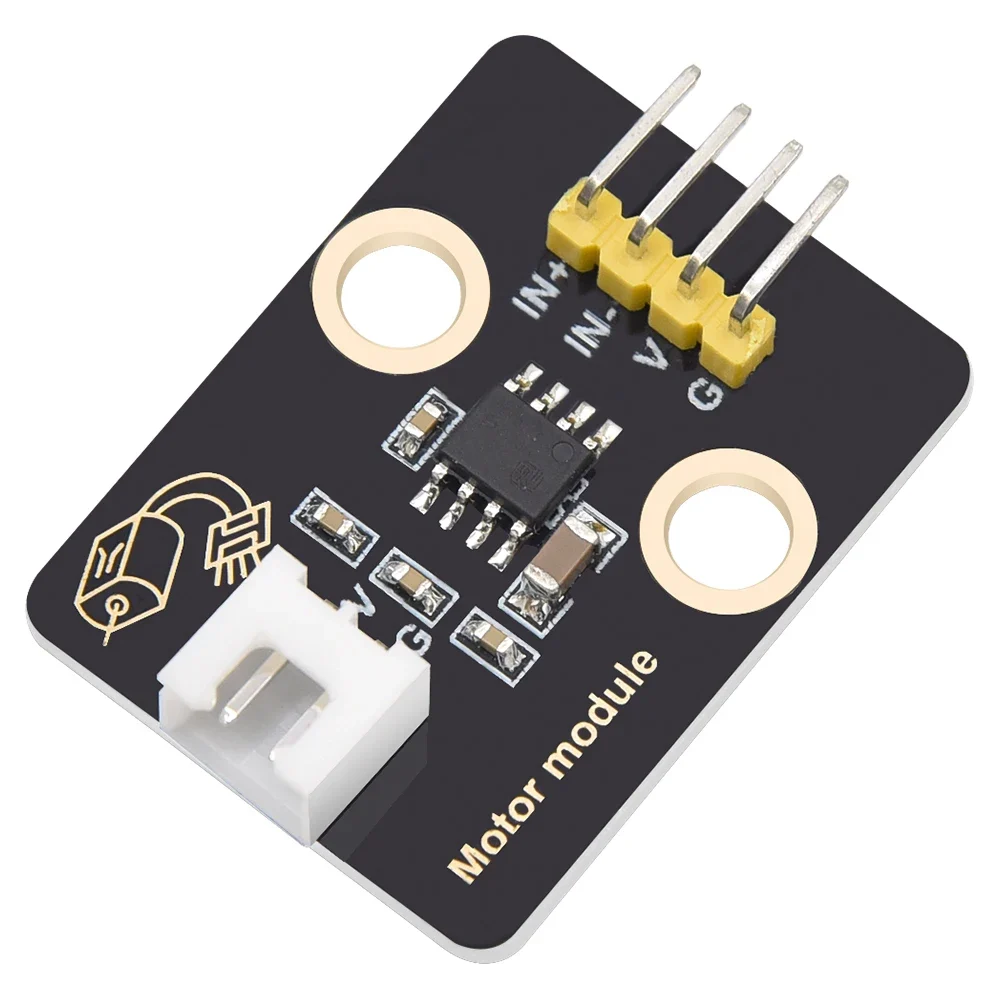

This pump driving module uses a single-channel H-bridge driver chip-HR1124S. The H-bridge driving part of HR1124S uses low on-resistance PMOS and NMOS power tubes, which can reduce chip’s power consumption and make the chip work safely for a longer time. In addition, HR1124S has low standby current and low quiescent operating current.
Parameters
Control chip: HR1124S
Rated voltage: 1.8V-6.8V
Rated current: low standby current (0.01uA) and low quiescent working current (0.2mA),
continuous output current 1.2A.

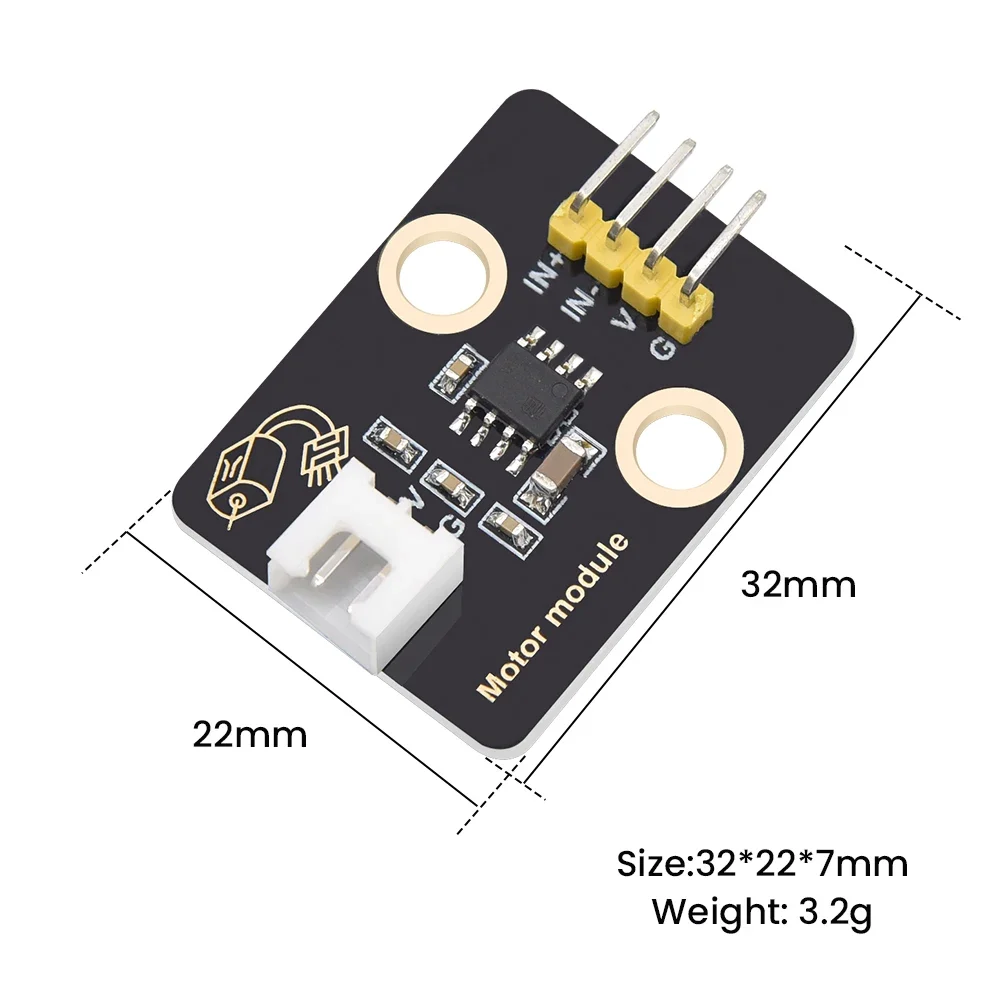

Product size: 31.6mmx23.7mm
Operating temperature range: 1°C ~ 50°C
